Installation Instructions
®
VLT
24 V DC Supply MCB 106
®
VLT
Midi Drive FC 280
The instructions provide information about installing the VLT
24 V DC Supply MCB 106 on VLT
®
VLT
24 V DC Supply MCB 106 is a low voltage supply to the
control card. The intended use case is to keep the fieldbus
communication of the control card active at all time during a
mains power loss or power cycle. It does not enable full
operation of the LCP (including the parameter settings)
without connection to mains. The specifications of VLT
DC Supply MCB 106 are described in Table 1.1.
Input voltage
Reversed voltage input protection
Output voltage
Output power
Input capacitance load
Power up delay
®
Table 1.1 VLT
24 V DC Supply MCB 106 Specifications
®
Midi Drive FC 280.
®
24 V
24 V DC +15%
(Maximum 37 V in 10 s)
Yes
19.9 +0.6 V
Minimum 10 W
<110 uF
<0.6 s
Danfoss A/S © 02/2019 All rights reserved.
®
1
VLT
2
Cable
3
Plug
®

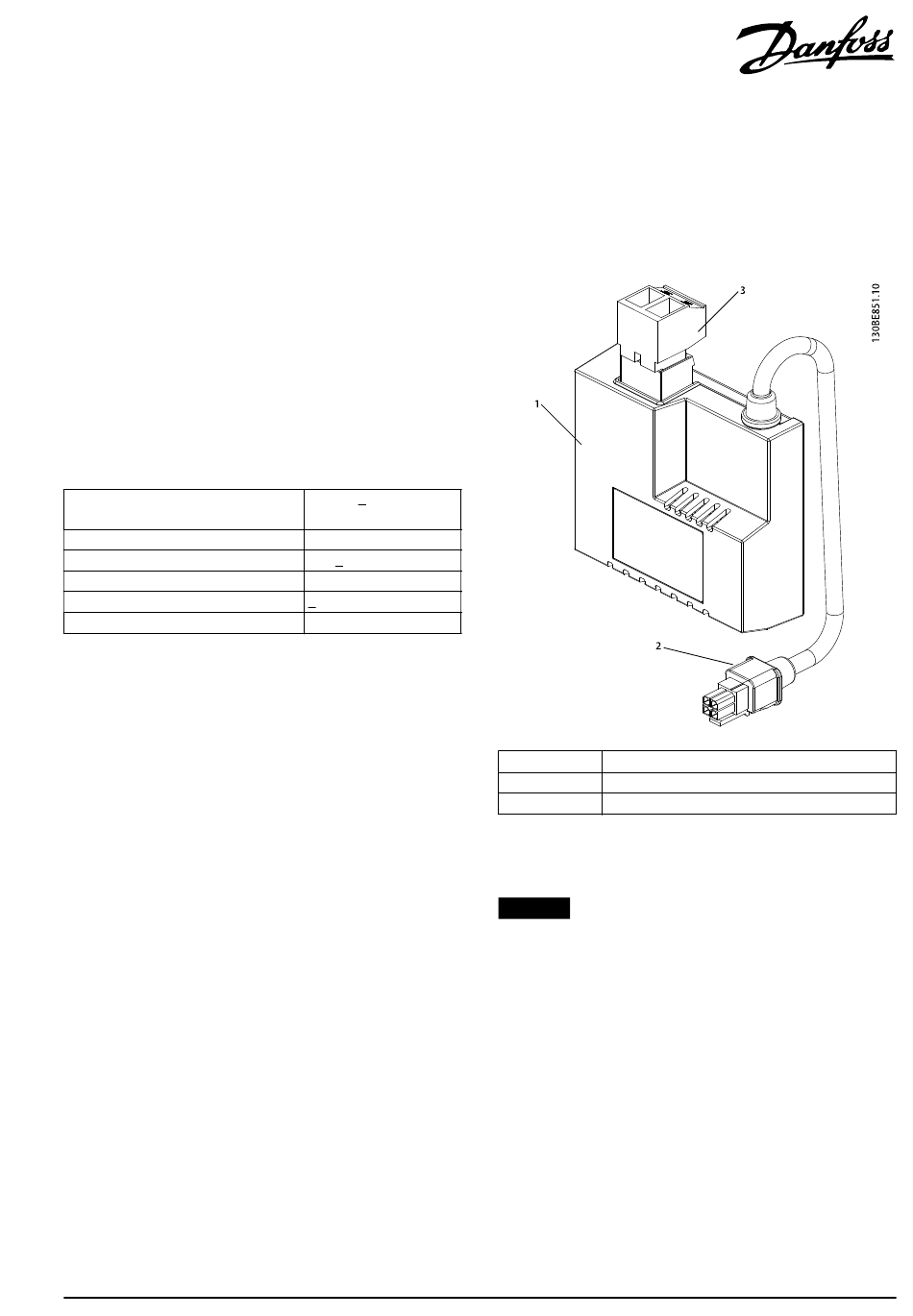

Illustration 1.1 VLT
NOTICE
®
VLT
24 V DC Supply MCB 106 only supports CANopen
PROFIBUS, PROFINET, and EtherNet/IP™ variant of VLT
Drive FC 280.
®
CANopen
is a registered trademark for CAN IN
AUTOMATION international users and manufacturers group
e. V.
EtherNet/IP™ is a trademark of ODVA, Inc.
Only Danfoss authorized, qualified personnel is allowed to use
this equipment. The personnel must be familiar with the
instructions and safety measures described in the
®
VLT
Midi Drive FC 280 Operating Guide.
®
24 V DC Supply MCB 106
24 V DC Supply MCB 106 Overview
®
,
®
Midi
MI07G202
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Danfoss VLT MCB 106
Summary of Contents for Danfoss VLT MCB 106
-
Page 1: Installation Instructions
AUTOMATION international users and manufacturers group e. V. EtherNet/IP™ is a trademark of ODVA, Inc. Only Danfoss authorized, qualified personnel is allowed to use this equipment. The personnel must be familiar with the instructions and safety measures described in the ®... -
Page 2: Items Supplied
DC Supply MCB 106). Tighten the screws to 0.5–0.7 Nm (4.4–6.2 in-lb). Power range Minimum waiting time Voltage [V] [kW (hp)] (minutes) 200–240 0.37–3.7 (0.5–5) 0.37–7.5 (0.5–10) 380–480 11–22 (15–30) Table 1.3 Discharge Time Danfoss A/S © 02/2019 All rights reserved. MI07G202... - Page 3 Connect the cable to the frequency converter, and fix the cable with the spring. Connect the external 24 V power supply cable to the terminal 35 and 36 of the plug. Plug Springs Cable Illustration 1.4 Connecting Cables MI07G202 Danfoss A/S © 02/2019 All rights reserved.
- Page 4 Danfoss can accept no responsibility for possible errors in catalogues, brochures and other printed material. Danfoss reserves the right to alter its products without notice. This also applies to products already on order provided that such alterations can be made without subsequential changes being necessary in specifications already agreed. All trademarks in this material are property of the respective companies. Danfoss and the Danfoss logotype are trademarks of Danfoss A/S.
