Adding Optional Oracle Database Appliance X6-2-HA Storage Shelf Drives (CRU)
1. To install the new drives into the storage shelf, do the following:

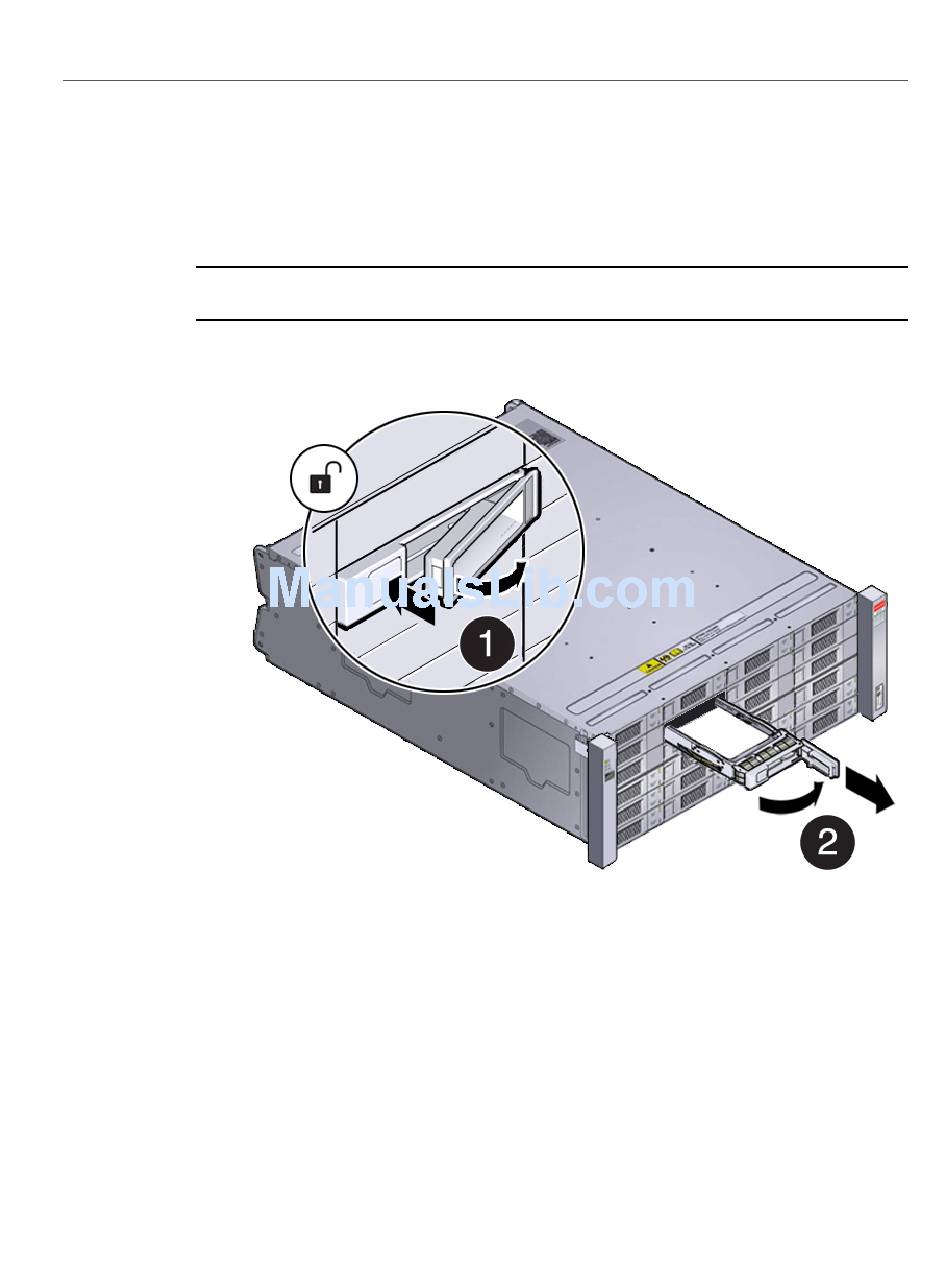

a. Remove one of the drive filler panels from slots 10-19 by pressing its release
button [1] and removing it from the drive slot [2].
Note -
cooling.
b. Open the drive lever of the new drive by pressing the release button on the
drive.
c. Slide the new drive into the drive slot [1] until it engages with the backplane
connector. Then close the lever to fully seat the drive and lock it into place
[2].
84 Oracle Database Appliance Service Manual • November 2017
Replace filler panels with drives one at a time to ensure proper storage shelf chassis
