Oracle Database Appliance X7-2M Service Manual page 188

Install Primary HBA PCIe Card in Motherboard

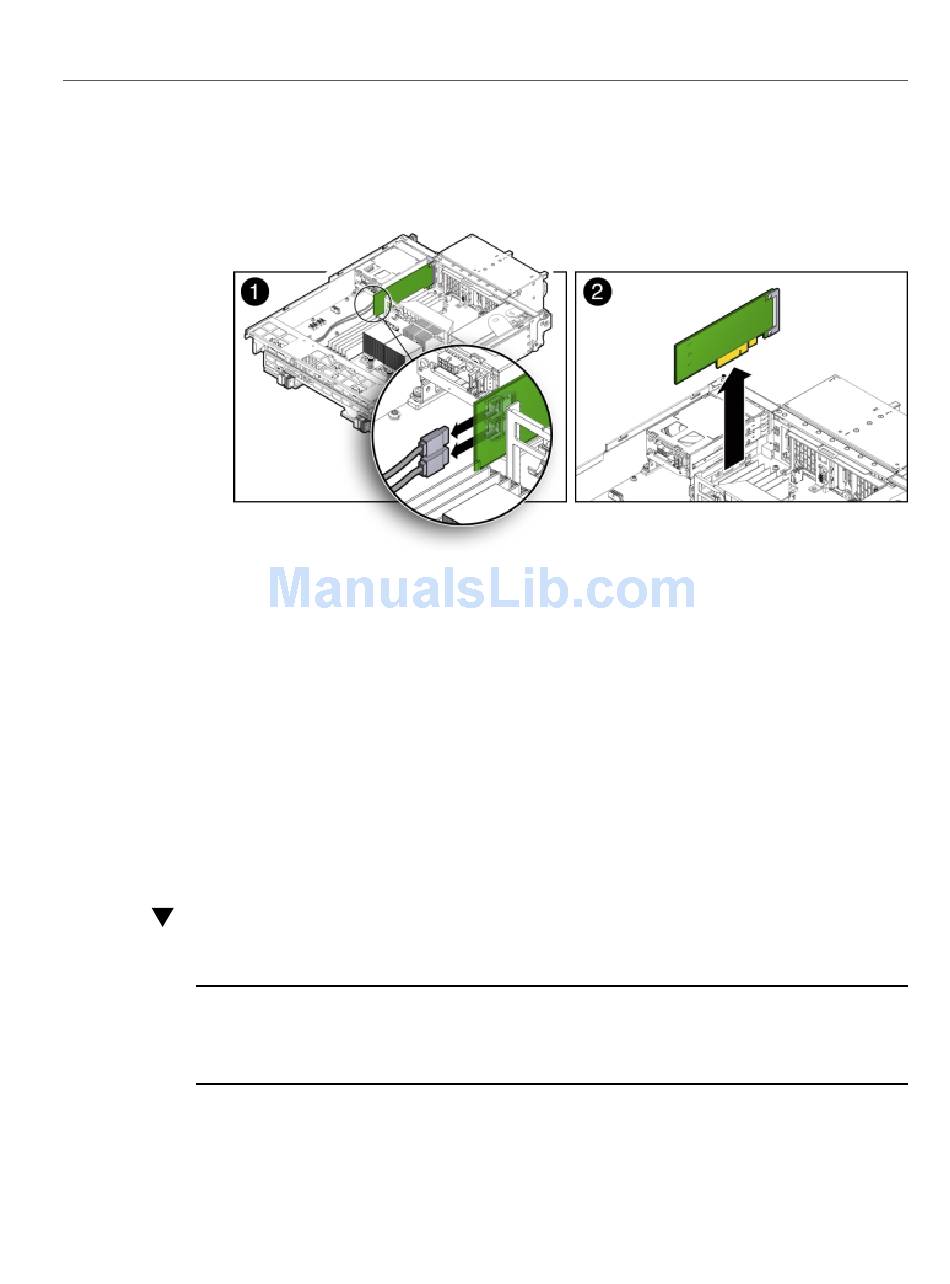

The internal PCIe card is located next to the rear-mounted disk drives.
b. Disconnect the data cables from the PCIe card [1].
There are two data cables that connect the PCIe card to the server node connector that
connects to disk drive backplane.
Note the location of all cables for reinstallation later.
To disconnect the cables from the internal PCIe card, press the latch, push in toward the
connector, and then pull out to remove the cable.
Grasp the PCIe card and lift it up and out of the server node [2].
c.
d. Place the PCIe card on an antistatic mat.
Install Primary HBA PCIe Card in Motherboard
Note -
2, Oracle Database Appliance X4-2, Oracle Database Appliance X5-2 or Oracle Database
Appliance X6 series. Refer to the preceding chapters in this document for information on
servicing those systems.
188 Oracle Database Appliance Service Manual • November 2017
Information in this appendix does NOT apply to Oracle Database Appliance X3-
