Replace the Internal SAS HBA Card

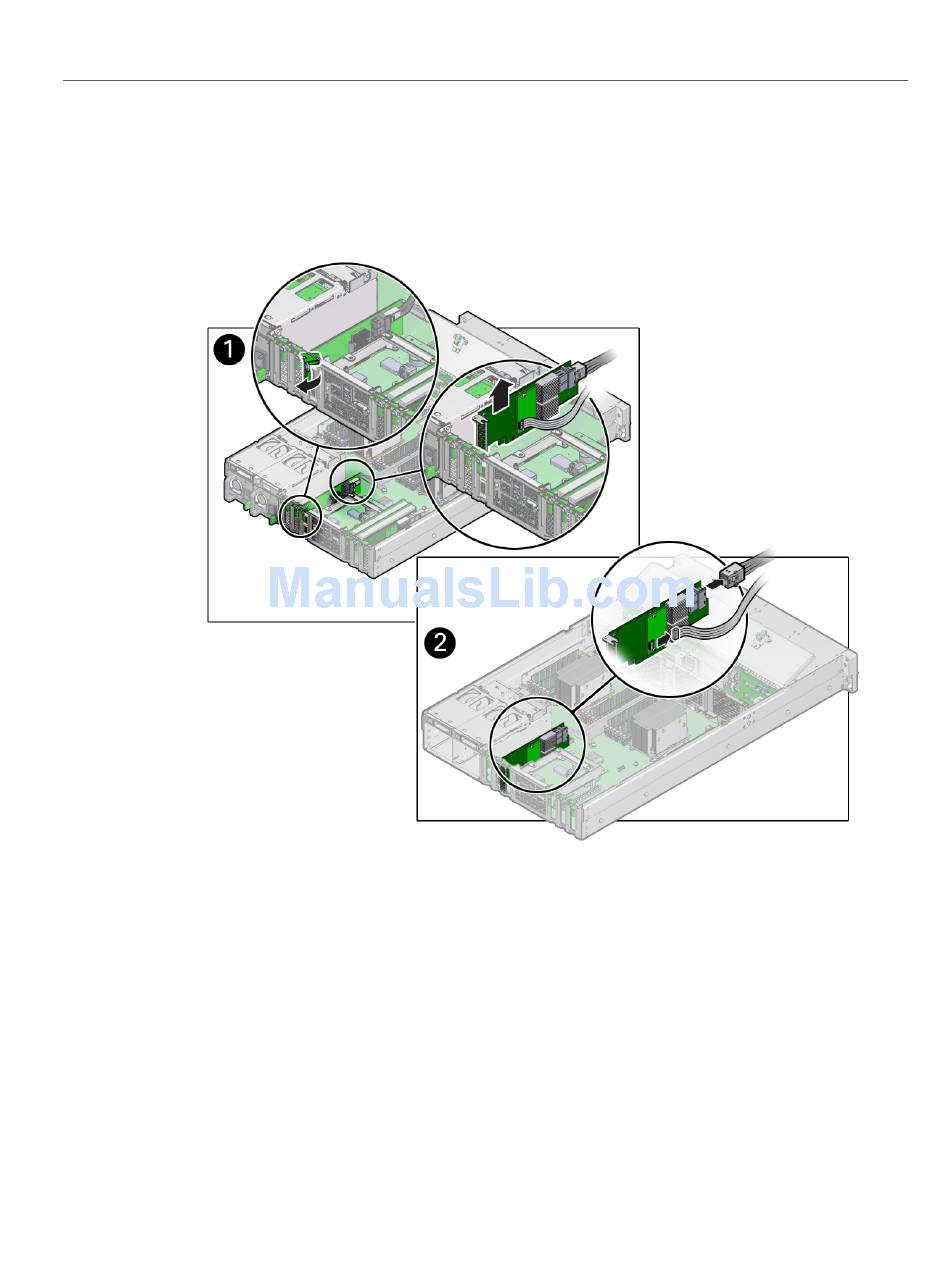

4. Rotate the PCIe card locking mechanism, and then lift up on the PCIe HBA card
to disengage it from the motherboard connectors [1].
5. Disconnect the super capacitor cable and the SAS cables from the SAS HBA
card [1].
6. Remove the SAS HBA card from the chassis [2].
7. Remove super capacitor cable from the chassis.
The super capacitor cable is routed along the left side of the chassis (when facing the front of
the system).
