Oracle Database Appliance X6-2S/X6-2M/X6-2L Status Indicators
Server Back Panel Status Indicators

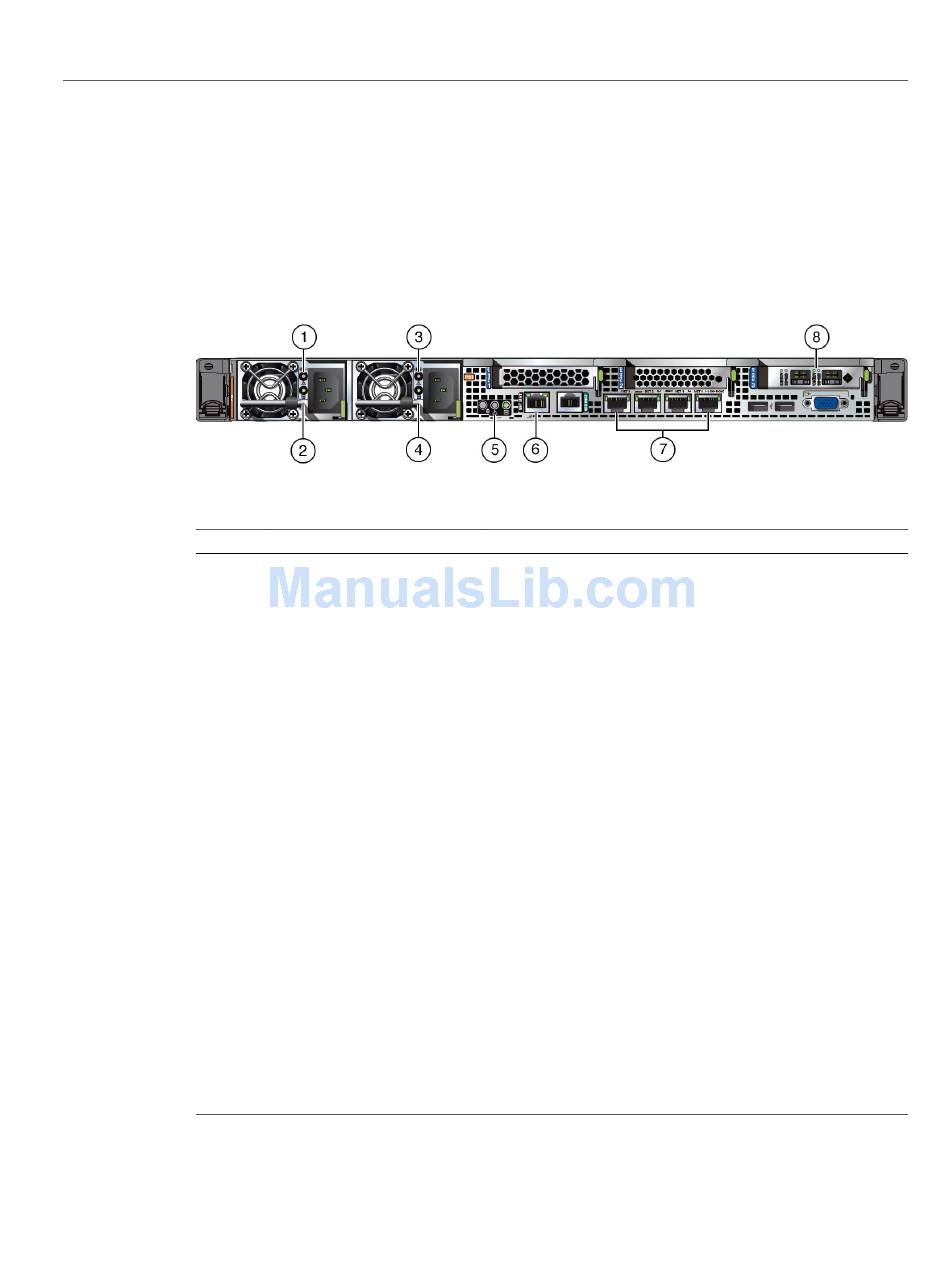

The Oracle Database Appliance X6-2S/X6-2M server back panel includes indicators for the
system, power supplies and network ports.
Callout
1, 3
2, 4
5
6
7
26 Oracle Database Appliance Service Manual • November 2017
Indicator/LED: Color
PS Service Required: amber
PS OK: green
System locate, service required
and OK: various
NET MGT port: green
NET 0-3 ports: green/amber
State Meaning
■ Off – Normal operation.
■ On – The power supply (PS) has detected a PS fan failure, PS
overtemperature, PS over current, or PS over or under voltage.
■ Off – No AC power is present.
■ On – Normal operation. Input AC power and DC output voltage
are within specification.
■ Slow blink – Normal operation. Input power is within
specification. DC output voltage is not enabled.
These operate in the same way as on the front panel.
10/100/1000 BASE-T Ethernet management interface.
Top left link indicator:
■ On – Green for 1000Base-T link.
■ Off – 10/100BASE-T link.
Top right activity indicator:
■ On – Link up.
■ Off – No link or link down.
■ Blinking – Packet activity.
100/1000/10000 BASE-T Ethernet interface.
Top left activity indicator:
■ On – No function.
■ Off – No activity.
■ Blinking – Packet activity.
