This section describes installing the primary HBA PCIe card in Oracle Database Appliance
Version 1.
Unpack the replacement PCIe card and place it on an antistatic mat.
1.
Install the internal PCIe card.
2.

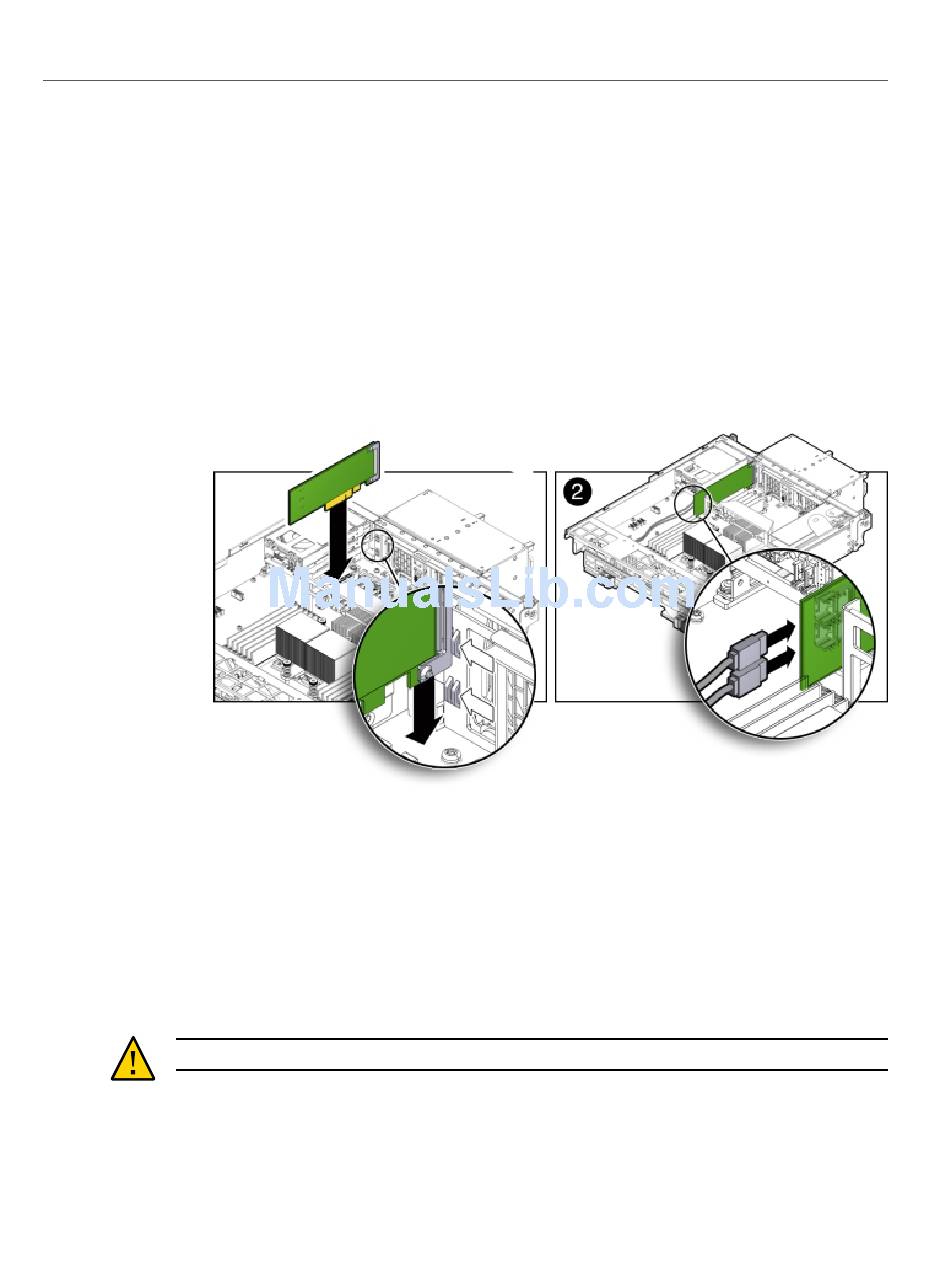

a. Locate the connector for the internal PCIe card [1].
The internal PCIe connector is located next to the rear-mounted disk drives.
b. Align the notch on the PCIe card with the key on the motherboard connector
[1].
Align the rear of the PCIe card with the support bracket located on the rear
c.
of the server node [1].
Press down on the PCIe to seat it into the connector [1].
d.
If the notch and key are not aligned, damage to the PCIe card might occur.
Caution -
Install Primary HBA PCIe Card in Motherboard
Appendix A • Servicing the Oracle Database Appliance Version 1 189
