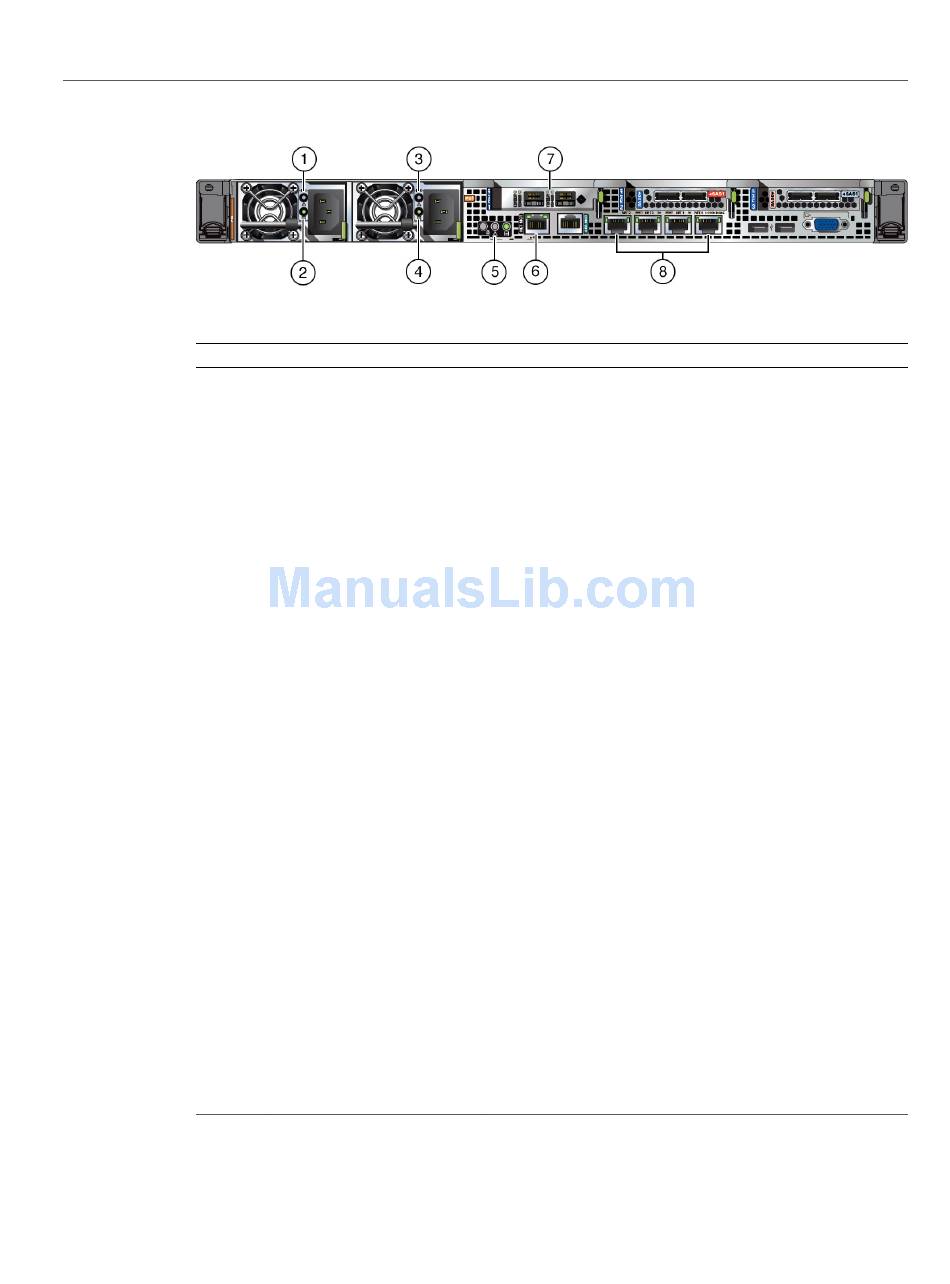

Oracle Database Appliance X3-2/X4-2 Status Indicators
Callout
1, 3
2, 4
5
6
7
48 Oracle Database Appliance Service Manual • November 2017
Indicator/LED: Color
PS Service Required: amber
PS OK: green
System locate, service required
and OK: various
NET MGT port: green/amber
Oracle Database Appliance
X4-2: Dual 10 GbE SFP+ PCIe
2.0 Low Profile Adapter ports
(shown): green/amber
--or--
Oracle Database Appliance
X3-2: Sun Dual Port 10GBase-
T Adapter ports (not shown):
green/yellow
State Meaning
■ Off – Normal operation.
■ On – The power supply (PS) has detected a PS fan failure, PS
overtemperature, PS over current, or PS over or under voltage.
■ Off – No AC power is present.
■ On – Normal operation. Input AC power and DC output voltage
are within specification.
■ Slow blink – Normal operation. Input power is within
specification. DC output voltage is not enabled.
These operate in the same way as on the front panel.
10/100 BASE-T Ethernet management interface.
Top left link indicator:
■ On – Amber for 10Base-T link; green for 100Base-T link.
■ Off – No link or link down.
Top right activity indicator:
■ On – No function.
■ Off – No activity.
■ Blinking – Packet activity.
Oracle Database Appliance X4-2 with 1000/10000 BASE-T SFP+
Ethernet management interface.
■ GRN=10G:
■ On – Green for 10GbE link; amber for 1GbE link.
■ Off – No function.
■ ACT/LINK (A or B):
■ On – Green for link up.
■ Off – No link.
■ Blinking – Green for packet activity.
Oracle Database Appliance X3-2 with 1000/10000 BASE-T
Ethernet management interface.
■ 1G/100M=YLW:
■ On – Green for 1GbE link; yellow for 10GbE link.
