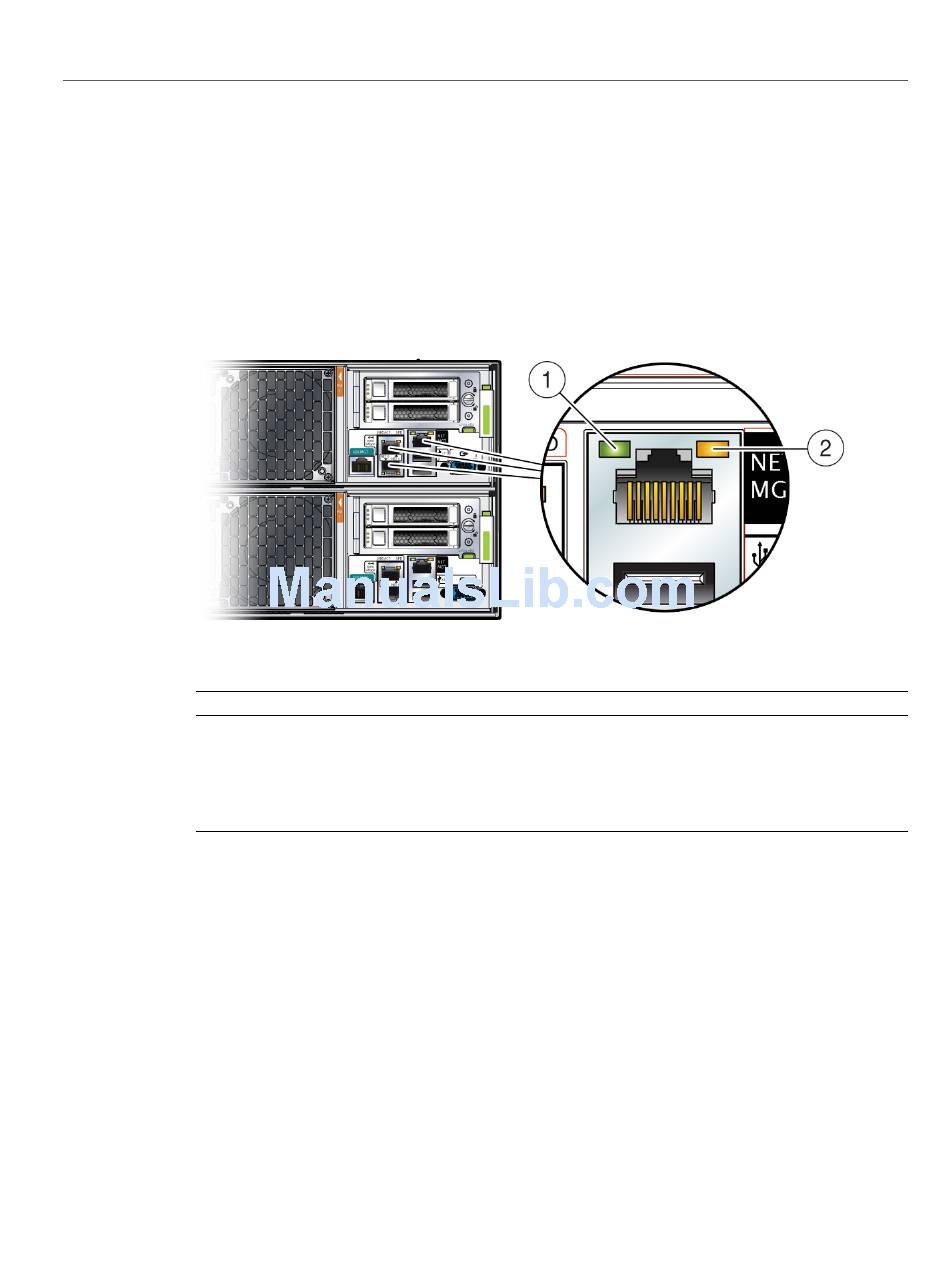

Ethernet Port Indicators

Each server node in Oracle Database Appliance Version 1 has two host Ethernet ports (NET0
and NET1) and an SP network management port (NET MGT). Each of these has two LEDs that
indicate link activity and port speed.
Callout
1
2
60 Oracle Database Appliance Service Manual • November 2017
Indicator/LED: Color
Link Activity: green
Link Speed: bi-colored
State Meaning
Lights to indicate link activity.
Green – Link established at fastest speed.
Amber – Link established at next fastest speed or slower speeds.
Off – Link at slowest speed, which is 10 Mbps.
