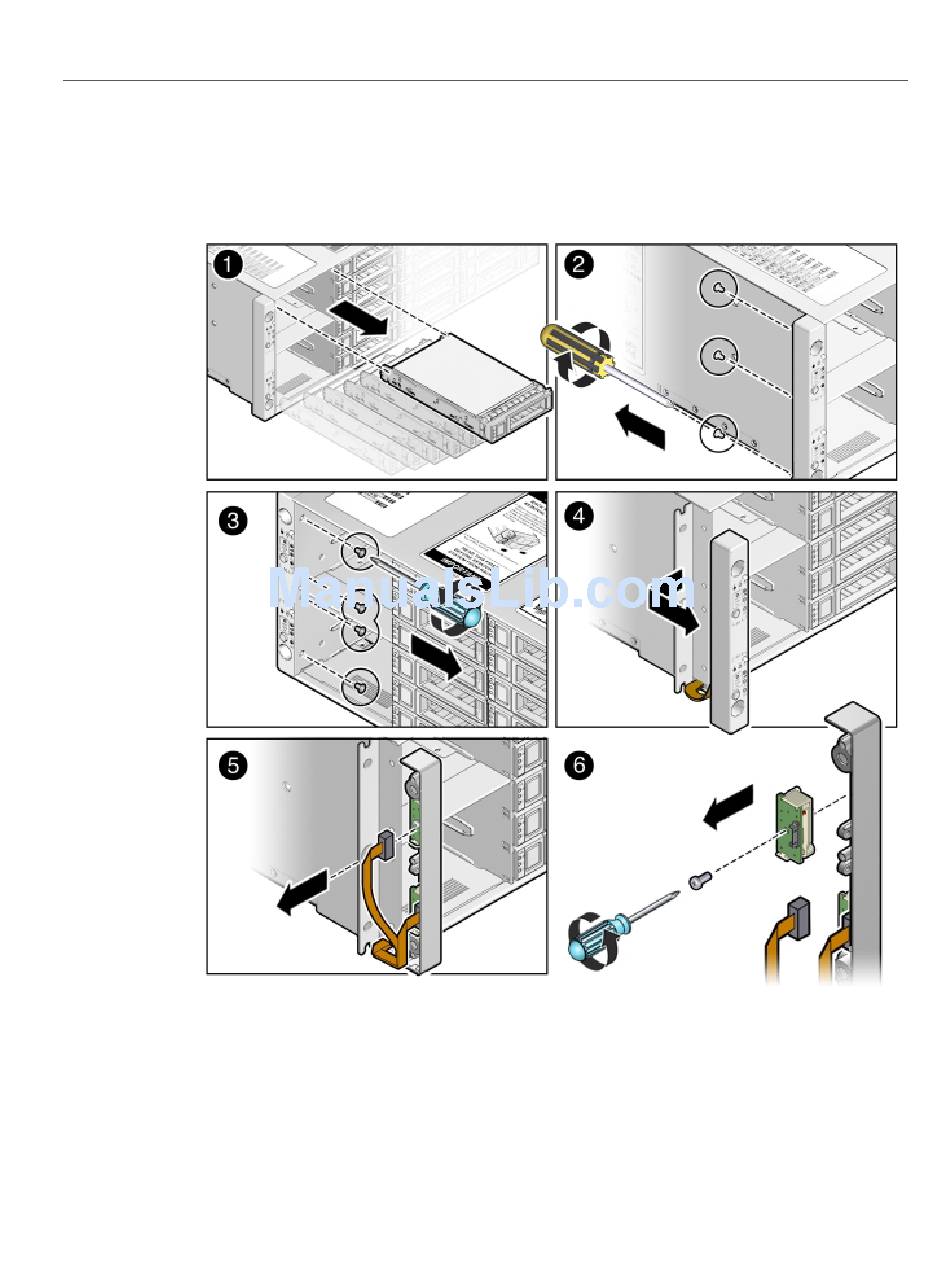

Remove Front Indicator Panel
6.
Disconnect the ribbon cables from the indicator panel you wish to change [5].
7.
Remove the screw that holds the indicator panel to the ear bezel [6].
Make sure you remove the correct indicator panel. There are two indicator panels on the ear
bezel.
224
Oracle Database Appliance Service Manual • November 2017
