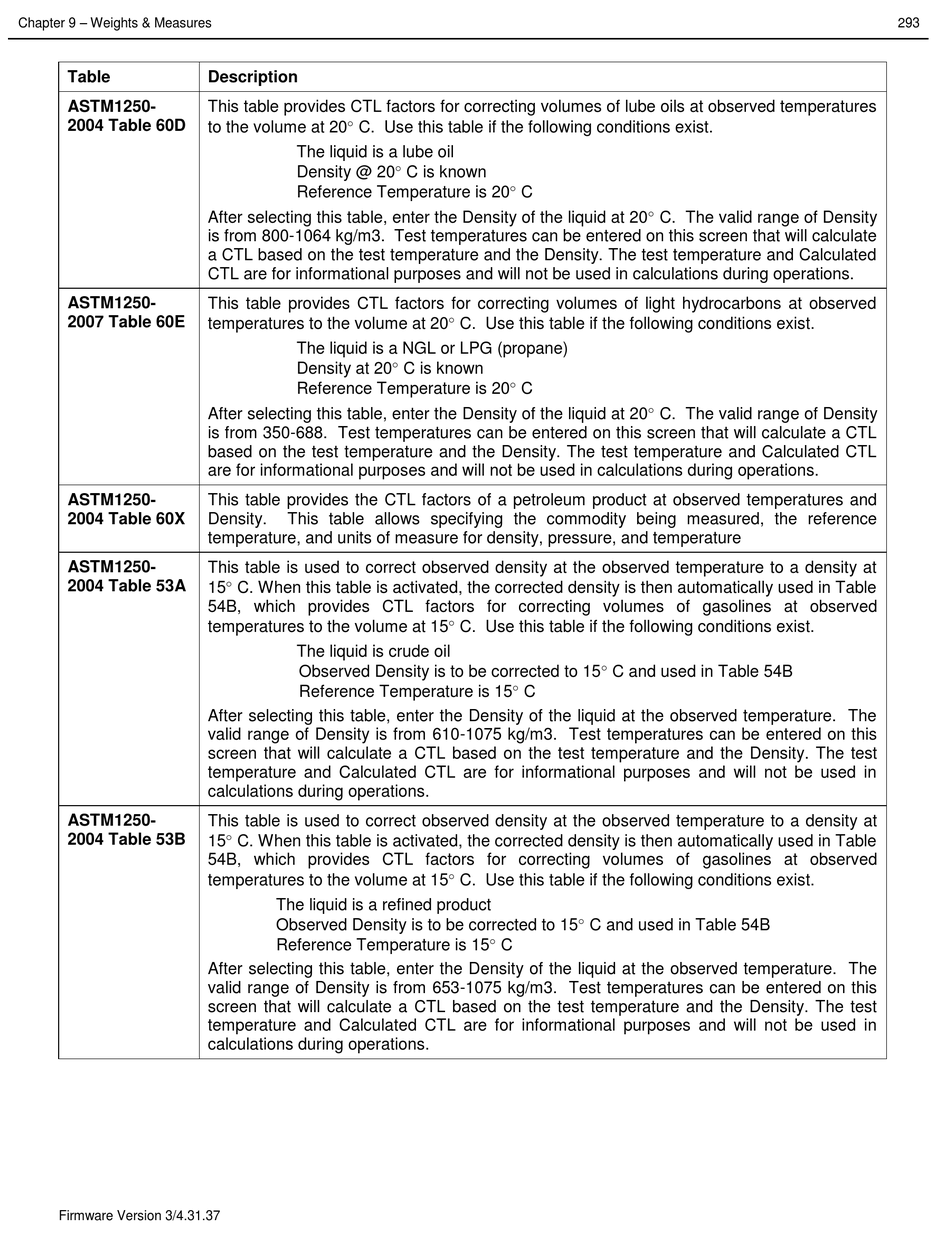

Toptech Systems MultiLoad II User Manual page 293

Chapter 9 – Weights & Measures
Table
ASTM1250-
2004 Table 60D



ASTM1250-
2007 Table 60E



ASTM1250-
2004 Table 60X
ASTM1250-
2004 Table 53A



ASTM1250-
2004 Table 53B



Firmware Version 3/4.31.37
Description
This table provides CTL factors for correcting volumes of lube oils at observed temperatures
to the volume at 20 C. Use this table if the following conditions exist.
The liquid is a lube oil
Density @ 20 C is known
Reference Temperature is 20 C
After selecting this table, enter the Density of the liquid at 20 C. The valid range of Density
is from 800-1064 kg/m3. Test temperatures can be entered on this screen that will calculate
a CTL based on the test temperature and the Density. The test temperature and Calculated
CTL are for informational purposes and will not be used in calculations during operations.
This table provides CTL factors for correcting volumes of light hydrocarbons at observed
temperatures to the volume at 20 C. Use this table if the following conditions exist.
The liquid is a NGL or LPG (propane)
Density at 20 C is known
Reference Temperature is 20 C
After selecting this table, enter the Density of the liquid at 20 C. The valid range of Density
is from 350-688. Test temperatures can be entered on this screen that will calculate a CTL
based on the test temperature and the Density. The test temperature and Calculated CTL
are for informational purposes and will not be used in calculations during operations.
This table provides the CTL factors of a petroleum product at observed temperatures and
Density. This table allows specifying the commodity being measured, the reference
temperature, and units of measure for density, pressure, and temperature
This table is used to correct observed density at the observed temperature to a density at
15 C. When this table is activated, the corrected density is then automatically used in Table
54B, which provides CTL factors for correcting volumes of gasolines at observed
temperatures to the volume at 15 C. Use this table if the following conditions exist.
The liquid is crude oil
Observed Density is to be corrected to 15 C and used in Table 54B
Reference Temperature is 15 C
After selecting this table, enter the Density of the liquid at the observed temperature. The
valid range of Density is from 610-1075 kg/m3. Test temperatures can be entered on this
screen that will calculate a CTL based on the test temperature and the Density. The test
temperature and Calculated CTL are for informational purposes and will not be used in
calculations during operations.
This table is used to correct observed density at the observed temperature to a density at
15 C. When this table is activated, the corrected density is then automatically used in Table
54B, which provides CTL factors for correcting volumes of gasolines at observed
temperatures to the volume at 15 C. Use this table if the following conditions exist.
The liquid is a refined product
Observed Density is to be corrected to 15 C and used in Table 54B
Reference Temperature is 15 C
After selecting this table, enter the Density of the liquid at the observed temperature. The
valid range of Density is from 653-1075 kg/m3. Test temperatures can be entered on this
screen that will calculate a CTL based on the test temperature and the Density. The test
temperature and Calculated CTL are for informational purposes and will not be used in
calculations during operations.
