Chapter 6 – Additive Control
232
Last Injection Volume
From End=200 gal.
600
Additive Target Volume
1st Stage
Trip Volume
200 gal.
Shutoff Volume
From End=150 gal.
100
Min Flush
Vol=150 gal.
1000
500 200 0
Remaining Load Volume (gal.)

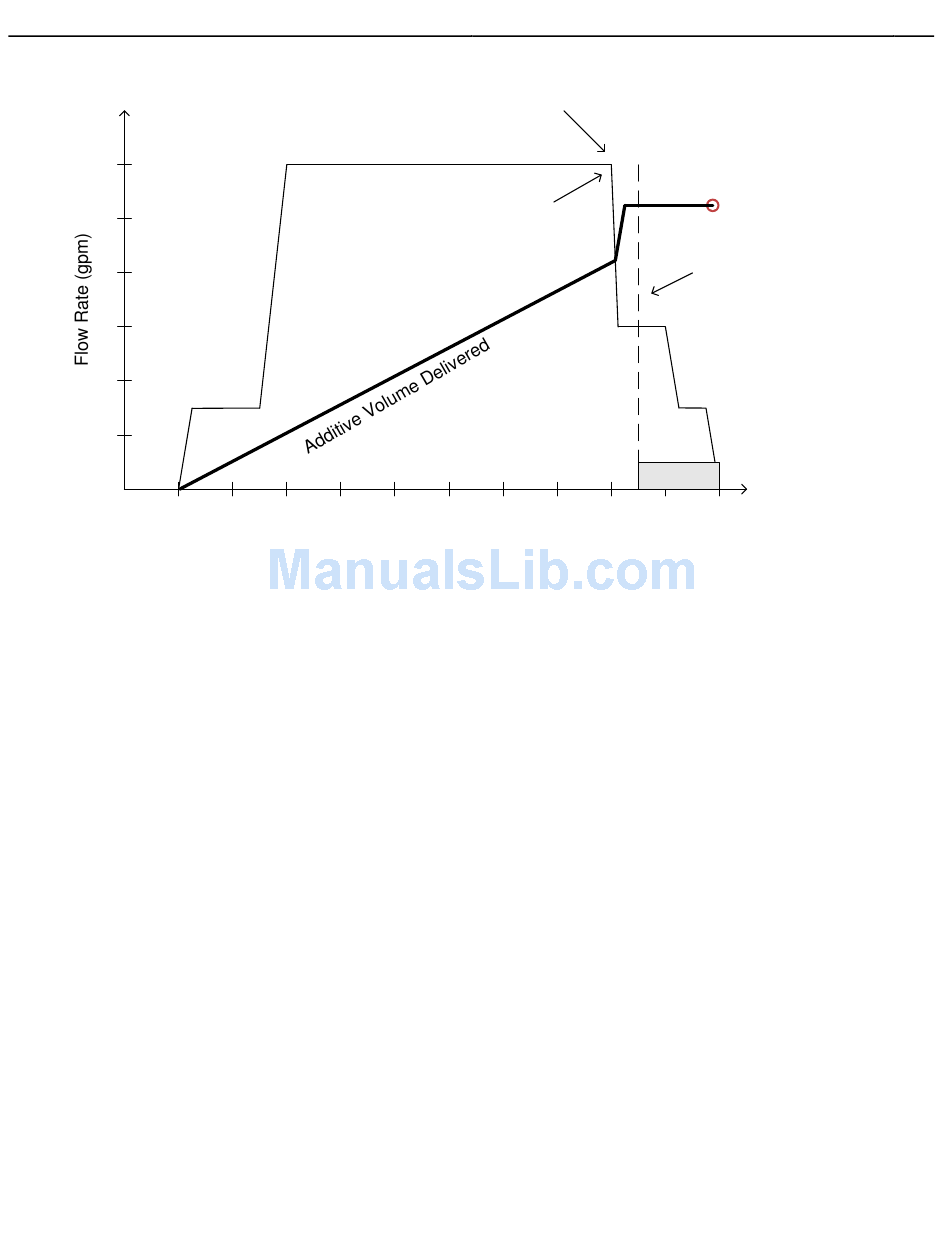

Figure 6.9 Basic Flush Cycle
Last Injection Volume From End-This parameter serves as a warning to the system, that a point is approaching
where all additive for the load must be delivered. Determine the volume that exists between the injection point
st
and the end of the load arm. If the 1 Trip Stage Volume is several times the volume that exists between the
st
injection point and the end of the load arm, enter a value that is equal to the 1 Stage Trip Volume. When the
load's remaining volume is equal to the Last Injection Volume From End, the system will begin its final injection to
finish the additive demand of the load. This parameter should be set to a number that is higher than the volume
specified in the Shutoff Volume From End parameter.
Shutoff Volume From End-When the volume remaining in the load reaches the value entered for Shutoff
Volume From End, additive delivery will cease, regardless of the demand that is remaining. If the Shutoff Volume
From End parameter is set to 150 gallons, additive delivery will stop when there is 150 gallons to be delivered.
The remaining product volume will flush additive from the line.
Line Flush Min Vol-Set this parameter to ensure that the minimum required flush volume is delivered. If the load
is aborted before enough product has flushed the line, an Additive Flush alarm will activate, warning that the flush
may be insufficient.
Throughout most of the delivery cycle, the additive/product ratio will be within the specified recipe. When the final
injection occurs, prior to reaching the volume specified by Shutoff Volume From End, the load will be slightly over
additized. By the time the load is complete the additive/product ratio will be on target.
Firmware Version 3/4.31.37
