Chapter 4 – General Configuration
L
4.21.1
OADING A BUILT IN CUSTOMER LOGO

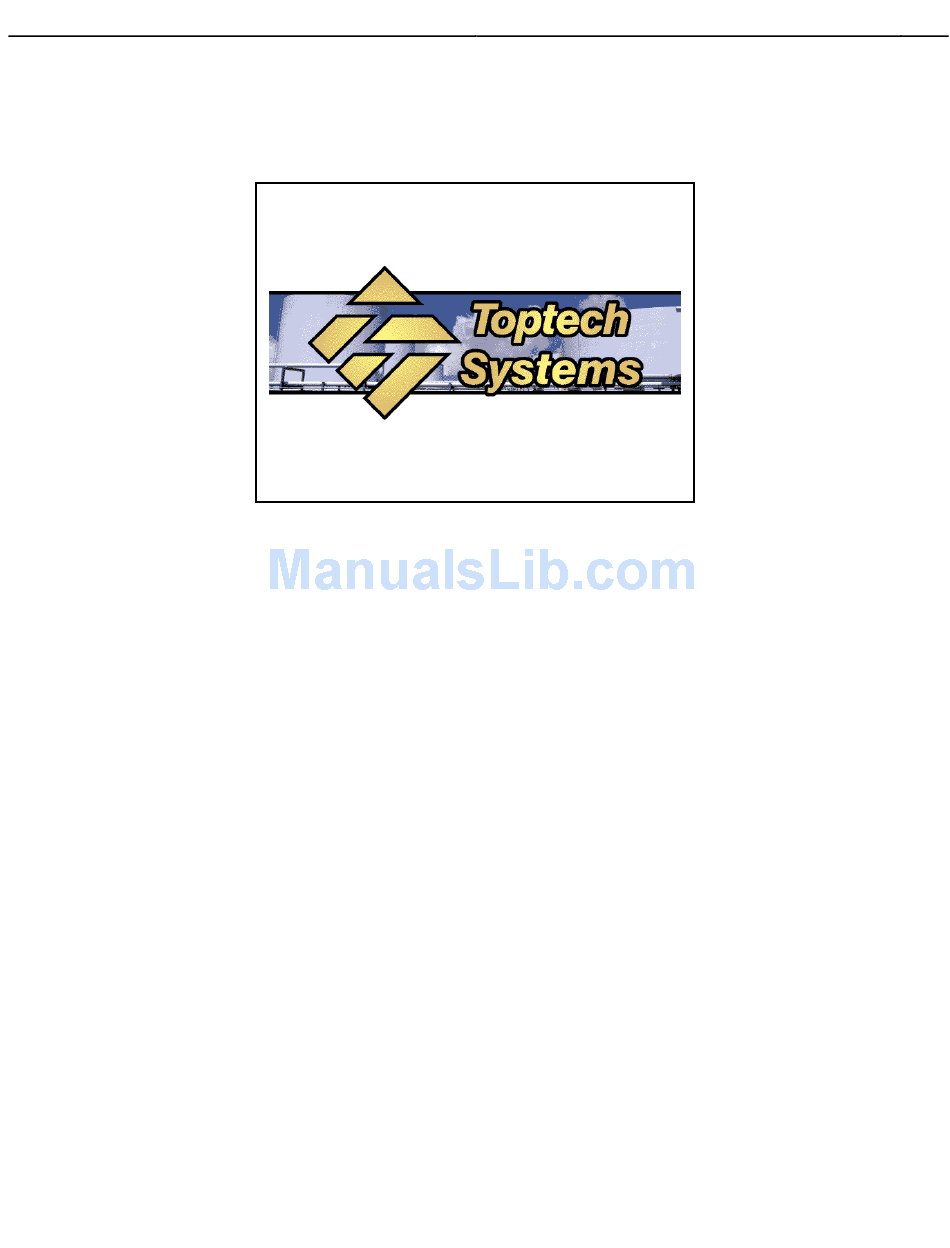

Enter Program Mode, select Configuration, and then Customer Logo Setup. The Customer Logo Setup screen is
displayed.
The currently loaded customer logo is displayed.
Pressing the Next and Prev keys will allow viewing of all built in logos.
Pressing Exit will return to the Configuration Menu without changing the currently loaded customer logo.
Pressing Enter will load the currently displayed customer logo.
U
4.21.2
PLOADING A
The .BMP file containing the customer logo must conform to certain specifications for the upload to be successful.
Those specifications are:
- BMP (Bitmap) format.
- 4 bits per pixel (16 color depth)
- Height MUST be 240 pixels.
TMS 5 and TMS 6 have a utility program to upload a .BMP file conforming to these specifications into a MultiLoad
II. For standalone MultiLoad II and RCU II applications, use the latest MultiMate configuration tool to upload a
customer logo. On Rev 2.0 CPU boards, the SD-Card slot can also be used to upload a logo BMP file.
Firmware Version 3/4.31.37
CUSTOMER LOGO SETUP
Next Prev Exit Enter
C .BMP C L
USTOM USTOMER
- Uncompressed image data.
- Width MUST be 640 pixels.
- No more than 6 custom colors. That is Colors (R, G, B)
other than:
BLACK (0, 0, 0)
RED (255, 0, 0)
GREEN (0, 255, 0)
YELLOW (255, 255, 0)
OGO
BLUE (0, 0, 255)
MAGENTA (255, 0, 255)
CYAN (0, 255, 255)
WHITE (255, 255, 255)
164
