L2TP tunnel sharing—Different users can share the same L2TP tunnel between the LAC

and the LTS. The LTS distributes data of different users to different LNSs.

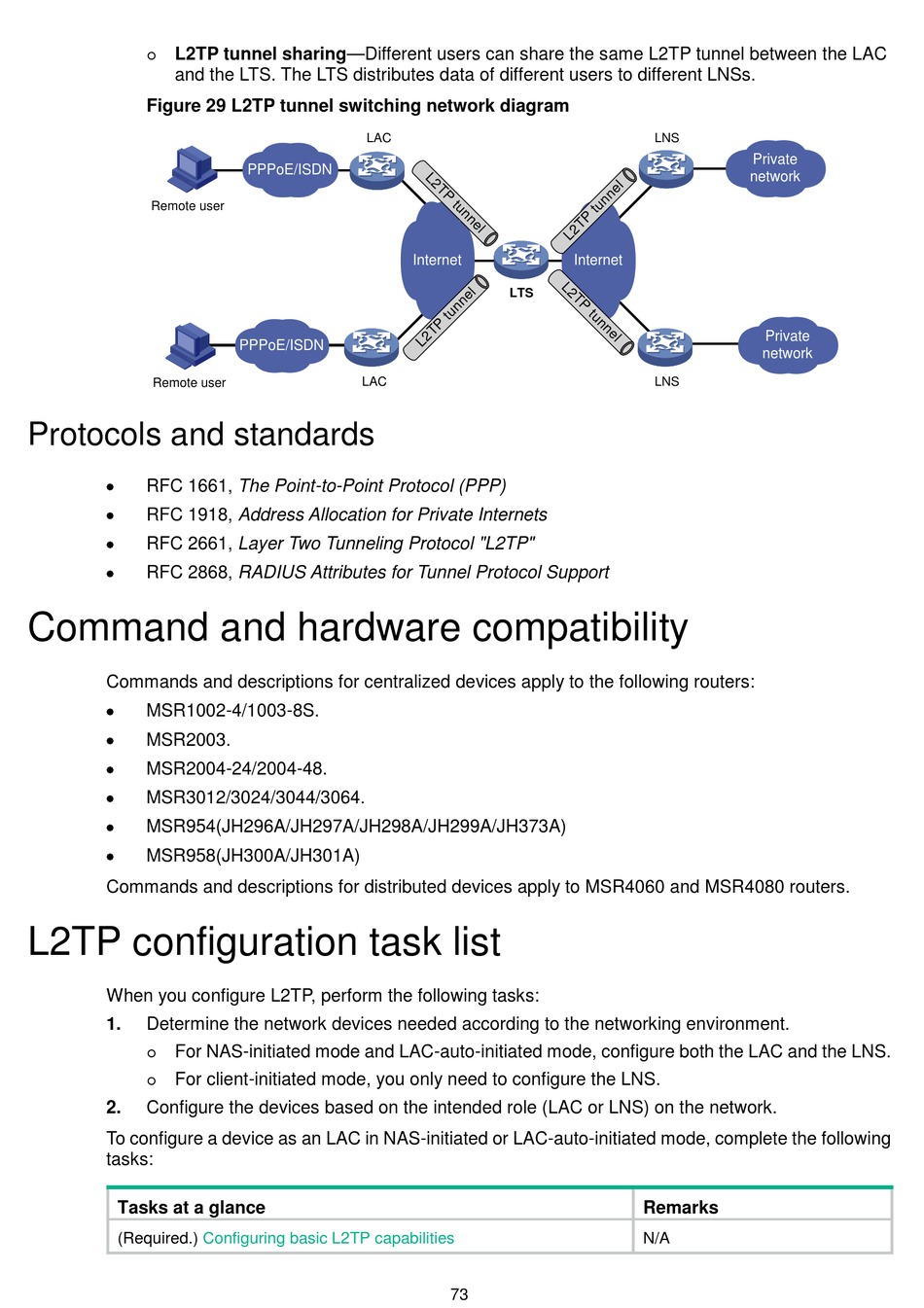

Figure 29 L2TP tunnel switching network diagram
Remote user
Remote user

Protocols and standards

•
RFC 1661, The Point-to-Point Protocol (PPP)
•
RFC 1918, Address Allocation for Private Internets
•
RFC 2661, Layer Two Tunneling Protocol "L2TP"
•
RFC 2868, RADIUS Attributes for Tunnel Protocol Support

Command and hardware compatibility

Commands and descriptions for centralized devices apply to the following routers:
•
MSR1002-4/1003-8S.
•
MSR2003.
•
MSR2004-24/2004-48.
•
MSR3012/3024/3044/3064.
•
MSR954(JH296A/JH297A/JH298A/JH299A/JH373A)
•
MSR958(JH300A/JH301A)
Commands and descriptions for distributed devices apply to MSR4060 and MSR4080 routers.

L2TP configuration task list

When you configure L2TP, perform the following tasks:
1. Determine the network devices needed according to the networking environment.
For NAS-initiated mode and LAC-auto-initiated mode, configure both the LAC and the LNS.

For client-initiated mode, you only need to configure the LNS.

2. Configure the devices based on the intended role (LAC or LNS) on the network.
To configure a device as an LAC in NAS-initiated or LAC-auto-initiated mode, complete the following
tasks:
Tasks at a glance
(Required.)
LAC
PPPoE/ISDN
PPPoE/ISDN
LAC
Configuring basic L2TP capabilities
Internet Internet
LTS
73
LNS
Private
network
Private
network
LNS
Remarks
N/A
