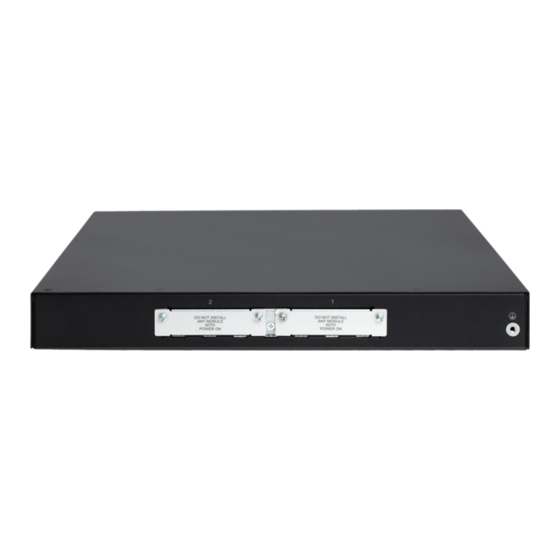

HPE FlexNetwork MSR Router Series

Interface Module Guide

Part number: 5200-2346

Document version: 6W108-20161111

Table of Contents

Summary of Contents for HPE FlexNetwork MSR Series

Page 1 HPE FlexNetwork MSR Router Series Interface Module Guide Part number: 5200-2346 Document version: 6W108-20161111...
Page 2 © Copyright 2016 Hewlett Packard Enterprise Development LP The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.
Page 3: Table Of Contents
Contents SIC/DSIC ······················································································· 1 Ethernet switching module ··········································································································· 1 SIC-4FSW/SIC-4FSW-PoE/DSIC-9FSW/DSIC-9FSW-PoE ·························································· 1 SIC-4GSW/SIC-4GSW-POE ·································································································· 2 SIC-4GSWF ······················································································································· 3 Ethernet interface module ············································································································ 4 SIC-1FEA ·························································································································· 5 SIC-1FEF ·························································································································· 5 SIC-1GEC-V2/SIC-1GEC-H3 ································································································· 6 E1/T1 interface module ··············································································································· 7 SIC-1E1-F ························································································································· 8 SIC-2E1-F ·························································································································...
Page 4 POS (SDH/SONET) interface module ··························································································· 55 MIM-1POS ······················································································································· 55 E1/T1 interface module ············································································································· 56 MIM-2E1/MIM-4E1/MIM-4E1-F modules ················································································· 56 MIM-8E1/MIM-8E1-F ·········································································································· 58 MIM-2T1/MIM-4T1-F ·········································································································· 59 MIM-8T1/MIM-8T1-F ·········································································································· 61 E3/T3 interface module ············································································································· 62 MIM-1CE3 ······················································································································· 62 MIM-1CT3 ······················································································································· 63 xDSL interface module ·············································································································· 64 MIM-1SHL-4W ··················································································································...
Page 5 FIC-2FE/FIC-4FE ············································································································ 106 FIC-1GBE/FIC-2GBE ······································································································· 107 FIC-1GEF/FIC-2GEF ······································································································· 108 ATM interface module ············································································································· 109 FIC-IMA-4E1/FIC-IMA-8E1 ································································································ 110 FIC-IMA-8T1 ·················································································································· 111 FIC-1AE3 ······················································································································ 112 FIC-1AT3 ······················································································································· 113 FIC-1ATM-OC3 ··············································································································· 114 POS (SDH/SONET) interface module ························································································· 115 FIC-1POS ······················································································································ 115 CPOS (SDH/SONET) interface module ······················································································ 116 FIC-1CPOS ····················································································································...
Page 6 Appendix A Interface module list ····················································· 177 Appendix B Purchase guide ··························································· 182 SIC/DSIC purchase guide ········································································································ 182 MIM/XMIM/DMIM purchase guide ······························································································ 187 HMIM purchase guide ············································································································· 189 FIC/DFIC purchase guide ········································································································ 190 ESM/VPM/VCPM purchase guide ······························································································ 192 Index ························································································· 193...
Page 7: Sic/Dsic
SIC/DSIC MSR series routers use modular design and support a wide range of SICs and DSICs. A SIC occupies one SIC slot and a DSIC occupies two SIC slots. The SIC/DSIC series interface modules provide interfaces such as synchronous/asynchronous serial interface, Ethernet interface, E1/T1, ISDN BRI/PRI, ADSL, audio interface, and Layer 2 switching interface.
Page 8: Sic-4Gsw/Sic-4Gsw-Poe
Interface LEDs Figure 1 SIC-4FSW panel Figure 2 SIC-4FSW-PoE panel Figure 3 DSIC-9FSW panel Figure 4 DSIC-9FSW-PoE panel Table 2 LED description Description Steady green A link is present. No link is present. Flashing green Data is being transmitted and received (ACT). In addition, the SIC-4FSW-POE and DSIC-9FSW-POE each provide a PoE LED.
Page 9: Sic-4Gswf
small-sized enterprise network. You can use it to connect PCs and network devices inside the network. The SIC-4GW-PoE interface module can supply power to PDs through PoE. Interface specifications Table 4 Interface specifications Item Specification Connector RJ-45 Interface type MDI/MDIX Number of connectors 100 m (328.08 ft) over category-5 twisted pair cables (both Transmission distance...
Page 10: Ethernet Interface Module
• Support for multiple types of 100/1000 Mbps transceiver modules. • 1000/100 Mbps interface rate. • Full duplex operating mode. Interface specifications Table 6 Interface specifications Item Description Number of interfaces Connector SFP/LC Standard 802.3/802.3u/802.3ab Operating mode 1000/100 Mbps, full duplex Interface LEDs Figure 7 SIC-4GSWF panel The SIC-4GSWF interface module provides a double-color (green/yellow) LED for each port to...
Page 11: Sic-1Fea
SIC-1FEA Introduction 1-port 10Base-T/100Base-TX Ethernet interface module (SIC-1FEA) implements communication between Routers and LANs. Interface specifications Table 8 Interface specifications Item Specification Connector RJ-45 Interface type Number of connectors 100 m (328.08 ft) over category-5 twisted pair cables (both Transmission distance crossover and straight-through) Operating mode 10/100 Mbps autosensing, full duplex/half duplex...
Page 12: Sic-1Gec-V2/Sic-1Gec-H3
Item Specification Connector SFP/LC Interface standard 802.3, 802.3u, and 802.3ab Operating mode 100 Mbps, full duplex Interface LEDs Figure 9 SIC-1FEF panel Table 11 LED description Status Description No link is present. Steady green A link is present. LINK/ACT Flashing green Data is being received and transmitted at 100 Mbps.
Page 13: E1/T1 Interface Module
NOTE: The SIC-1GEC-V2/SIC-1GEC-H3 provides an interface that combines a fiber port and a copper port. Only one port of the combo interface can be activated at a time. The copper port is activated by default. To use the fiber port, execute the related command at the command line interface (CLI). Interface LEDs Figure 10 SIC-1GEC-H3 panel Figure 11 SIC-1GEC-V2 panel...
Page 14: Sic-1E1-F
• SIC-1EPRI • SIC-1T1-F SIC-1E1-F Introduction The 1-port fractional E1 interface module (SIC-1E1-F) provides the following features: • Transmission, receiving, and handling of E1 data streams • CE1 (channelized E1) access • Remote loopback and local loopback functions, facilitating fault test and location The FE1 operating mode supported by the SIC-1E1-F module allows only one bundle.
Page 15: Sic-2E1-F
Interface cables and connection methods For more information about E1 interface cables, see "E1 interface." SIC-2E1-F Introduction The 2-port fractional E1 interface module (fractional) provides the following features: • Transmission/Receiving and handling of E1 data streams • CE1 (channelized E1) access •...
Page 16: Sic-Epri/Sic-1Epri
Description Note: AIS = Alarm indication signal; LFA = loss of frame alignment; RAI = Remote alarm indication Interface cables and connection methods For more information about E1 interface cables, see "E1 interface." SIC-EPRI/SIC-1EPRI Introduction The 1-port E1/CE1/PRI SIC interface module (SIC-EPRI/SIC-1EPRI) provides the following features: •...
Page 17: Sic-1T1-F
Table 20 LED description Description • On means carrier signal has been received. • Flashing means data is being transmitted or received. LINK/ACT • Off means no carrier signal has been received. • On means the interface is in a loopback. •...
Page 18: Serial Interface Module
Interface LEDs Figure 15 SIC-1T1-F panel Table 22 LED description Description • On means the carrier signal has been received. • Off means no carrier signal has been received. LINK/ACT • Flashing means data is being transmitted or/and received. • On means the interface is in a loopback.
Page 19: Sic-16As
Item Specification Interface cable Customized cable with 8-port RJ-45 connector Interface standard RS232 Minimum baud rate 300 bps Maximum baud rate 115.2 Kbps • Modem dial-up • Backup Supported services • Terminal access service • Asynchronous dedicated line Interface LEDs Figure 16 SIC-8AS front panel Table 24 LED description Description...
Page 20: Sic-1Sae/Sic-2Sae/Sic-4Sae
Item Specification Interface standard RS232 Minimum baud rate 300 bps Maximum baud rate 115.2 Kbps • Modem dial-up • Backup Supported services • Terminal access service • Asynchronous dedicated line Interface LEDs Figure 17 SIC-16AS panel Table 26 LED description Description •...
Page 21 Specification Item Synchronous Asynchronous Maximum baud rate 64 k 2.048 M 115.2 (bps) V.24 (RS232) DTE cable V.24 (RS232) DCE cable V.35 DTE cable V.35 DCE cable X.21 DTE cable Cable X.21 DCE cable RS449 DTE cable RS449 DCE cable RS530 DTE cable RS530 DCE cable •...
Page 22: Xdsl Interface Module
XDSL interface module • DSIC-1SHDSL-8W • SIC-1ADSL • SIC-1ADSL-I DSIC-1SHDSL-8W Introduction The 1-port 8-wire (4-pair) high-speed digital subscriber line interface module (DSIC-1SHDSL-8W) supports symmetric link rate of up to 22.76 Mbps. The G. SHDSL provides symmetric uplink and downlink and transmission rates of 192 kbps to 2312 kbps.
Page 23: Sic-1Adsl
Table 30 LED description Description • On means a carrier signal is received. • Off means no carrier signals is received. LINK/ACT (P0-P3) • Fast flashing means data is being received or/and transmitted. • Slow flashing means the module is negotiating rates. Interface cables and connection methods For more information about G.SHDSL interface cables and connection methods, see "G.SHDSL...
Page 24: Sic-1Adsl-I
Item Specification • ITU-T 992.1 G.DMT • ITU-T 992.2 G.Lite • ANSI T1.413 Issue 2 Interface standard • ITU-T 992.3 • ITU-T 992.5 Cable Telephone cable Supported service ADSL over the regular telephone line Interface LEDs Figure 22 SIC-1ADSL panel Table 32 LED description Description •...
Page 25: Isdn Bri Interface Module
Interface specifications Table 33 Interface specifications Item Specification Connector RJ-11 Number of connectors • In ADSL full rate mode (ITU-T 992.1 G.DMT/ANSI T1.413): 8 Mbps (downlink rate)  1024 kbps (uplink rate)  • In ADSL Lite mode (ITU-T 992.2 G.Lite): 64 kbps to 1 Mbps (downlink rate) Interface rate ...
Page 26: Sic-1Bs
SIC-1BS Introduction The 1-port ISDN BRI S/T interface module (SIC-1BS) transmits and processes ISDN BRI S/T traffic flows. It can operate in dial-up or leased line mode. Interface specifications Table 35 Interface specifications Item Description Connector RJ-45 Number of connectors Cable type Telephone cable with ferrite core •...
Page 27: Voice Interface Module
Voice interface module • SIC-1FXS • SIC-1FXO • SIC-2FXS • SIC-2FXO • SIC-2FXS1FXO • DSIC-4FXS1FXO • SIC-2BSV • SIC-1VE1 • SIC-1VT1 • SIC-1VE1T1 SIC-1FXS/SIC-1FXO/SIC-2FXS/SIC-2FXO Introduction The 1/2-port voice subscriber circuit interface module (SIC-1FXS/SIC-2FXS) and 1/2-port voice AT0 analog trunk interface module (SIC-1FXO/SIC-2FXO) provide access for and handle 1/2 channels of analog voice signals over data communication networks.
Page 28: Sic-2Fxs1Fxo
Interface LEDs Figure 25 SIC-1FXS panel Figure 26 SIC-1FXO panel Figure 27 SIC-2FXS panel Figure 28 SIC-2FXO panel Table 38 LED description Description • Off means the link is idle. LINK • On means the link is being occupied for call connection. •...
Page 29: Dsic-4Fxs1Fxo
Interface specifications Table 39 Interface specifications Item Specification Connector type RJ-11 2 FXS interfaces Number of connectors 1 FXO interface • Supports subscriber circuit interface (FXS), compliant with ITU Q.512 • Supports loop trunk interface (FXO), compliant with ITU Q.552 Interface standard •...
Page 30: Sic-1Bsv/Sic-2Bsv
Interface specifications Table 41 Interface specifications Item Specification Connector type RJ-11 4 FXS interfaces Number of connectors 1 FXO interface • Supports subscriber circuit interface (FXS), compliant with ITU Q.512 • Supports loop trunk interface (FXO), compliant with ITU Q.552 Interface standard •...
Page 31 The IP voice traffic received on a WAN interface is forwarded through the CPU on the MPU  to SIC-2BSV, where the traffic is decompressed and sent to the TE device. • When a BSV interface operates in user mode, traffic is processed as follows: The digital voice traffic received from the B channels on the BSV interface is decompressed ...
Page 32: Sic-1Ve1
SIC-1VE1 Introduction The 1-port E1 voice interface module (SIC-1VE1) handles dense voice signals in a VoIP system. It provides a CE1/PRI/R2 port that can process a maximum of 30 channels of voice signals. Interface specifications Table 45 Interface specifications Item Specification Connector DB 15...
Page 33: Sic-1Vt1
Interface cables and connection methods For more information about E1 interface cables, see "E1 interface." SIC-1VT1 Introduction The 1-port T1 voice interface module (SIC-1VT1) handles dense voice signals in a VoIP system. It provides a CT1/PRI/R2 port that can process a maximum of 23 channels of voice signals. Interface specifications Table 47 Interface specifications Item...
Page 34: Sic-1Ve1T1
Interface cables and connection methods For more information about T1 interface cables and connection methods, see "T1 interface." SIC-1VE1T1 Introduction The 1-port E1/T1 voice interface module SIC-1VE1T1 handles dense voice signals in VoIP and FoIP systems. The E1 module transmits, receives, and processes E1 voice signals. It allows the interface to operate in CE1 mode or ISDN PRI mode to process a maximum of 30 channels of voice signals.
Page 35: Wlan Interface Module
Item Specification • E1 interface: 2.048Mbps Interface rate • T1 interface: 1.544 Mbps • E1 75-ohm coaxial cable • E1 120-ohm twisted pair cable: 2 m (6.56 ft), 15 m (49.21 ft), or 30 m (98.43 ft) Cable type • T1 100-ohm standard shielded cable •...
Page 36: Sic-Wlan-B/G/N/Sic-Wlan-B/G/N(Na)
SIC-WLAN-b/g/n/SIC-WLAN-b/g/n(NA) Introduction The SIC-WLAN-b/g/n module receives and sends 802.11b/g/n WIFI protocol data. Two external omnidirectional antennas are available on the module. The antennas follow the 802.11b/g/n standard, work on the 2.4 GHz channel and support 2*2 radio MIMO. The SIC-WLAN-b/g/n (NA) modules are applicable only in North America, and the area code is fixed at NA.
Page 37: Sic-3G-Gsm
SIC-3G-GSM Introduction The SIC-3G-GSM module provides access to 3G networks. It supports the following features: • General Packet Radio Service (GPRS) • Enhanced Data Rate for GSM Evolution (EDGE) • Universal Mobile Telecommunications System (UMTS) • High Speed Downlink Packet Access (HSDPA) Interface specifications Table 53 Interface specifications Item...
Page 38: Sic-3G-Hspa
Description • Steady yellow means the service is valid. HSDPA • Off means no service. Antenna, interface cable, and the connection method For more information about SIC-3G-GSM interface cables and connection methods, see "WLAN interface." Installing a SIM card Push the 3G SIM card holder in the direction marked "OPEN" so the holder projects upwards. Do not insert the 3G SIM card to the card holder before projecting the card holder up.
Page 39: Sic-3G-Hspa
Item Specification 850/900/1900/2100MHz WCDMA/HSDPA/HSUPA Supported wireless band 850/900/1800/1900MHz GPRS/EDGE Interface LEDs Figure 38 SIC-3G-HSPA panel Table 56 LED description Description • Steady green means that a link is present. WWAN • Flashing green means that data is being transmitted or received. •...
Page 40 • EDGE • UMTS • HSDPA Interface specifications Table 57 Interface specifications Item Specification TNC: For connecting an antenna and accessing WLANs. Connector type RJ-45: For connecting to a third-party WLAN debugging and testing software such as CAIT of Qualcomm. 2 TNC RF Number of connectors 1 RJ-45...
Page 41: 4G Interface Module
Antenna, interface cables, and connection methods CAUTION: The 3G antenna provided with the SIC-3G-HSPA+ must be installed on the antenna port that has a MAIN mark. For more information about SIC-3G-HSPA+ Interface cables and connection methods, see "WLAN interface." Installing a SIM card Push the 3G SIM card holder in the direction marked "OPEN"...
Page 42 Item Specification • TNC: None. • SMA: Flexible 174 sized cable. Cable type • Mini USB Type AB: USB console cable. • LTE. • CDMA. Services • GPS. Interface LEDs Figure 40 SIC-4G-LTE-V (JG742A) panel Table 60 LED description Description •...
Page 43: Sic-4G-Lte-V (Jg742B)
Execute the display cellular [slot]/0 all command after the router is started. When "SIM Status = OK" appears in the output information, the SIM module is identified. SIC-4G-LTE-V (JG742B) The SIC-4G-LTE-V (JG742B) module provides access to 4G WLANs. It supports the following services: •...
Page 44: Sic-4G-Lte-A (Jg743A)
Interface LEDs Figure 41 SIC-4G-LTE-V (JG742B) panel Table 62 LED description Description • Steady green: A link is present. • Flashing green fast: Data is being transmitted or received. WWAN • Flashing green slowly: The module is searching for 4G WLANs. •...
Page 45 • DC-HSPA+. • Quad-band EDGE. • GPRS. • GSM. • GPS. Interface specifications Table 63 Interface specifications Item Specification • TNC: Antenna connector for accessing WLANs. • SMA: Antenna connector for accessing GPS. Connector type • Mini USB Type AB: For connecting to third-party WLAN debugging and testing software such as CAIT of Qualcomm.
Page 46: Sic-4G-Lte-A (Jg743B)
Description • Steady green: Strong signal strength. The RSSI is equal to or greater than –69 dBm. • Flashing green fast: Middle- or low-level signal strength. The RSSI is equal to or greater than –89 dBm and less than –69 dBm. RSSI •...
Page 47 Interface specifications Table 65 Interface specifications Item Specification • TNC connector: For connecting to a wireless network antenna. • SMA connector: For connecting to a GPS antenna. Connector type • Mini USB Type AB connector: For connecting to third-party WLAN debugging and testing software such as CAIT of Qualcomm.
Page 48: Sic-4G-Lte-G (Jg744A)
Description • Flashing green: The EVDO service is valid. EVDO • Off: The EVDO service is not available. • Steady green: The LTE service is valid. • Off: The LTE service is not available. • Steady green: The GPS service is valid. •...
Page 49 Item Specification • TNC: LTE, UMTS, HSPA+, CDMA 1x, EVDO Release 0 & A, Quad-band EDGE, GPRS, and GSM. Interface standard • SMA: GPS. • Mini USB Type AB: Support for USB devices. • TNC: None • SMA: Flexible 174 sized cable Cable type •...
Page 50: Sic-4G-Lte-G (Jg744B)
Installing a SIM card Push the 4G SIM card holder in the direction marked "OPEN" so the holder projects upwards. Do not insert the 4G SIM card to the card holder before projecting the card holder up. Do not forcibly lift the holder. Insert the 4G SIM card along the slide rails to the holder.
Page 51 Item Specification • LTE. • UMTS. • HSPA+. • DC-HSPA+. Services • Quad-Band EDGE. • GPRS. • GSM. • GNSS. Interface LEDs Figure 45 SIC-4G-LTE-G (JG744B) panel Table 70 LED description Description • Steady green: A link is present. • Flashing green fast: Data is being transmitted or received.
Page 52 Put down the holder and push the holder in the direction marked "LOCK" to lock the card in position. Position the 4G SIM card socket cover and fasten the screws on the cover. Execute the display cellular [slot]/0 all command after the router is started. When "SIM Status = OK"...
Page 53: Mim/Dmim/Xmim
MIM/DMIM/XMIM The MSR series routers provide a wide range of optional MIM/DMIMs. The MIM/DMIMs provide interfaces such as synchronous/asynchronous serial interface, Ethernet interface, E1/T1, ISDN BRI/PRI, audio interface, and Layer 2 switching interface. The MIM-16FSW and the DMIM-24FSW support PoE to provide –48 VDC power to remote PDs such as IP phone, AP, and network camera through straight-through network cables when installed in a PoE router.
Page 54: Mim-16Fsw/Mim-16Fsw-Poe/Dmim-24Fsw/Dmim-24Fsw-Poe
Figure 47 XMIM-24FSW panel Each 10/100 Mbps Ethernet interface on the panel has two LEDs. Table 72 LED description LED status Description • On: A link is present. Green LED (LINK) • Off: No link is present. • Flashing: Data is being received and sent on the port. Yellow LED (ACT) •...
Page 55 Item MIM-16FSW/MIM-16FSW-PoE DMIM-24FSW/DMIM-24FSW-PoE • 24 × 100 Mbps copper port: 10/100 Mbps autosensing 10/100 Mbps autosensing, full/half • 2 × GE copper port: 10/100/1000 Mbps Operating mode duplex autosensing • 2 × GE fiber port: GE SFP fiber port Interface LEDs Figure 48 MIM-16FSW panel Figure 49 MIM-16FSW-PoE panel Figure 50 DMIM-24FSW panel...
Page 56: Ethernet Interface Module
LED status Description Steady yellow A 100 Mbps link is present, but no data is being transmitted and received. Flashing yellow A 100 Mbps link is present and data is being transmitted and received (ACT). Table 76 Description for the DMIM-24FSW/DMIM-24FSW-PoE fiber interface LEDs LED status Description No link is present.
Page 57: Mim-2Gbe
Interface LEDs Figure 52 MIM-2FE panel Figure 53 MIM-4FE panel Table 78 LED description Description • Off means the Ethernet link is not connected. LINK • On means the link is connected. • Off means no data is being transmitted or received; ACTIVE •...
Page 58: Atm Interface Module
Table 80 LED description Description • Off means no link is present; LINK • On means a link is present. • Off means no data is being transmitted or received; • Flashing means data is being received or/and transmitted. Interface cables and connection methods For more information about the Ethernet interface cables and connection methods, see "Ethernet interface."...
Page 59: Mim-Ima-8E1
Table 82 LED description Description • On means carrier signal has been received. • Flashing means data is being received or/and transmitted. LINK/ACT • Off means no carrier signal has been received. • On means the interface is in a loopback. •...
Page 60: Mim-Ima-4T1
Interface LEDs Figure 56 MIM-IMA-8E1 (75-ohm) panel Table 84 LED description Description • On means carrier signal has been received. • Flashing means data is being received or/and transmitted. LINK/ACT • Off means no carrier signal has been received. • On means the interface is in a loopback.
Page 61: Pos (Sdh/Sonet) Interface Module
Interface LEDs Figure 57 MIM-IMA-4T1 panel Table 86 LED description Description • On means carrier signal has been received. • Flashing means data is being received or/and transmitted. LINK/ACT • Off means no carrier signal has been received. • On means the interface is in a loopback. •...
Page 62: E1/T1 Interface Module
Interface LEDs Figure 58 MIM-1POS panel Table 88 LED description Description • On means carrier signal has been received. • Flashing means data is being received or/and transmitted. LINK/ACT • Off means no carrier signal has been received. • On means the interface is in a loopback. •...
Page 63 Interface specifications Table 89 Interface specifications Specification Item MIM-2E1 MIM-4E1/4E1-F Connector Number of connectors Interface standard G.703, G.704 Interface rate 2.048 Mbps • E1 75-ohm unbalanced coaxial cable • E1 120-ohm balanced twisted pair cable • 120-ohm 4E1 conversion cable (MIM-4E1/MIM-4E1-F modules) Cable type •...
Page 64: Mim-8E1/Mim-8E1-F
Description Note: AIS = Alarm indication signal; LFA = loss of frame alignment; RAI = Remote alarm indication Interface cables and connection methods For more information about E1 interface cables, see "E1 interface." MIM-8E1/MIM-8E1-F Introduction • MIM-8E1 module The 8-port channelized E1/PRI interface module (MIM-8E1) transmits, receives, and processes eight channels of E1 data traffic.
Page 65: Mim-2T1/Mim-4T1-F
Interface LEDs Figure 62 MIM-8E1 (75-ohm) panel Figure 63 MIM-8E1-F (75-ohm) panel Table 92 LED description Description • On means carrier signal has been received. • Flashing means data is being received or/and transmitted. LINK/ACT • Off means no carrier signal has been received. •...
Page 66 Interface specifications Table 93 Interface specifications Item Specification Connector RJ-45 • 2 (MIM-2T1 module) Number of connectors • 4 (MIM-4T1-F module) • G.703/T1.102 • G.704 • AT&T TR 54016 Interface standard • AT&T TR 62411 • ANSI T1.403 Interface rate 1.544 Mbps Cable type T1 cable (100-ohm shielding network cable)
Page 67: Mim-8T1/Mim-8T1-F
MIM-8T1/MIM-8T1-F Introduction • MIM-8T1 The 8-port channelized T1/PRI interface module (MIM-8T1) transmits, receives, and processes eight channels of T1 data traffic. In addition, you can use the module for other purposes, such as CT1 access and the ISDN PRI function. •...
Page 68: E3/T3 Interface Module
Figure 67 MIM-8T1-F panel Table 96 LED description Description • On means carrier signal has been received. • Flashing means data is being received or/and transmitted. LINK/ACT • Off means no carrier signal has been received. • On means the interface is in a loopback. •...
Page 69: Mim-1Ct3
Item Specification Interface standard G.703, G.704, G.751 Interface rate 34.368 Mbps Interface cable type E3/T3 cable (75-ohm coaxial cable) Operating mode Supported service E3 leased line Interface LEDs Figure 68 MIM-1CE3 panel Table 98 LED description Description • Off means the link is not set up. LINK •...
Page 70: Xdsl Interface Module
Item Specification Number of connectors • G.703 • G.704 • G.752 Interface standard • AT&T TR 54014 • AT&T TR 62415 • ANSI T1.107 Interface rate 44.736 Mbps Interface cable type E3/T3 cable (75-ohm coaxial cable) Operating mode Supported service T3 leased line Interface LEDs Figure 69 MIM-1CT3 panel...
Page 71: Serial Interface Module
Compared with ADSL, G.SHDSL allows longer transmission distance and has a wider application scope. It is an alternative to E1/T1 line for high-speed data service access. However, because TCPAM uses the band starting from 0 Hz for data transmission, G.SHDSL cannot share the same line with POTS or ISDN.
Page 72: Mim-2Sae/Mim-4Sae/Mim-8Sae
• MIM-4SAE • MIM-8SAE • MIM-8ASE • MIM-16ASE MIM-2SAE/MIM-4SAE/MIM-8SAE Introduction The 2/4/8-port enhanced high-speed synchronous/asynchronous serial interface module (MIM-2SAE/MIM-4SAE/MIM-8SAE) functions the same as SA modules except that the SAE modules support additional protocols, for example, RS449, X.21, and RS530. Interface specifications Table 103 Interface specifications Specification Item...
Page 73: Mim-8Ase/Mim-16Ase
Interface LEDs Figure 71 MIM-2SAE panel Figure 72 MIM-4SAE panel Table 104 LED description Description • Off means no link is present; LINK • On means a link is present. • Off means no data is being transmitted or received; •...
Page 74: Voice Interface Module
Specification Item MIM-8ASE module MIM-16ASE module • AUX cable • Ethernet straight-through cable Cable • MIM-8ASE/MIM-16ASE dumb terminal cable Minimum baud rate (bps) Maximum baud rate (bps) 115.2 k • Dialup through Modem • Backup Supported services • Terminal access service •...
Page 75: Mim-16Fxs
• MIM-2VE1 • MIM-2VT1 • MIM-1VE1 • MIM-1VT1 MIM-16FXS Introduction The 16-port loop trunk interface module (MIM-16FXS) provides access for 16 channels of analog voice signals over data communication networks. The module provides 16 FXS interfaces. FXS interfaces are analog subscriber line interfaces that provide analog telephone and fax access and also can connect AT0 loop trunks of exchanges.
Page 76: Mim-4Bsv
MIM-4BSV Introduction The 4-port ISDN BRI S/T voice interface module (MIM-4BSV) processes ISDN voice traffic. In the upstream direction, it can be connected to user interfaces on an ISDN switch to receive and decompress, and compress and transmit ISDN BRI digital voice traffic. In the downstream direction, the module can be connected to TE devices to allow their voice traffic to be forwarded through a WAN interface on the router to the Internet to implement VoIP.
Page 77: Mim-2Fxo And Mim-4Fxs/Mim-4Fxo
Table 110 LED description Description • Off means no link is present. LINK • On means a link is present. • Slowly flashing means data is being transmitted or received on B1 channel. • Fast flashing means data is being transmitted or received on B2 channel. •...
Page 78: Mim-4E&M
Figure 79 MIM-4FXS panel Figure 80 MIM-4FXO panel Table 112 LED description Description • Off means no link is present; On means a link is present. LINK • Off means the channel is idle. On means there is call activity. Interface cables and connection methods For more information about FXS/FXO interface cables and connection methods, see "ADSL/BS/FXS/FXO/AM/FCM...
Page 79: Mim-1Ve1
Table 114 LED description Description • Off means no link is present; On means a link is present. LINK • Off means the channel is idle. On means there is call activity. Interface cables and connection methods For more information about E&M interface cables and connection methods, see "E&M interface."...
Page 80: Mim-1Vt1
Description • On means the interface is in a loopback. • Flashing means an AIS, LFA, or RAI alarm signal is present. LP/AL • Off means no loopback or alarm is present. Note: AIS = Alarm indication signal; LFA = loss of frame alignment; RAI = Remote alarm indication Interface cables and connection methods For more information about E1 interface cables, see "E1...
Page 81: Mim-2Ve1
Table 118 LED description Description • On means carrier signal has been received. • Flashing means data is being received or/and transmitted. LINK/ACT • Off means no carrier signal has been received. • On means the interface is in a loopback. •...
Page 82: Mim-2Vt1
Table 120 LED description Description • On means carrier signal has been received. • Flashing means data is being received or/and transmitted. LINK/ACT • Off means no carrier signal has been received. • On means the interface is in a loopback. •...
Page 83 Interface LEDs Figure 85 MIM-2VT1 panel Table 122 LED description Description • On means carrier signal has been received. • Flashing means data is being received or/and transmitted. LINK/ACT • Off means no carrier signal has been received. • On means the interface is in a loopback. •...
Page 84: Hmim
HMIM A wide range of optional HMIMs are available for the MSR series routers. The HMIMs provide multiple types of interfaces such as the synchronous/asynchronous serial interface, Ethernet interface, E1/T1, ISDN BRI/PRI, audio interface, and Layer 2 switching interface. Ethernet interface switching module •...
Page 85: Hmim-8Gswf
Figure 88 HMIM-24GSW-PoE panel Table 124 LED description Description No link is present. Steady green A 1000 Mbps link is present. Flashing green The interface is sending or receiving data at 1000 Mbps. Steady yellow A 10/100 Mbps link is present. Flashing yellow The interface is sending or receiving data at 10/100 Mbps.
Page 86: Ethernet Interface Module
Description • Off means no data is being transmitted or received on the interface. • Flashing means data is being transmitted and/or received. Fiber ports, optical fibers, and the connection methods For more information about fiber ports, optical fibers, and the connection methods, see "Fiber port."...
Page 87: Hmim-2Gef/Hmim-4Gef/Hmim-8Gef
Figure 91 HMIM-4GEE panel Figure 92 HMIM-8GEE panel Table 128 LED description Description Off means no link is present. LINK On means a link is present. Off means no data is being transmitted or received on the interface. Flashing means data is being transmitted and/or received. Interface cables and connection methods For more information about the Ethernet interface cables and connection methods, see "Ethernet...
Page 88: Pos (Sdh/Sonet) Interface Module
Figure 94 HMIM-4GEF panel Figure 95 HMIM-8GEF panel Table 130 LED description Description Off means no link is present. LINK On means a link is present. Off means no data is being transmitted or received on the interface. Flashing means data is being transmitted and/or received. Interface cables and connection methods For more information about the Ethernet interface cables and connection methods, see "Ethernet...
Page 89: Cpos (Sdh/Sonet) Interface Module
Interface LEDs Figure 96 HMIM-1POS front panel Table 132 LED description Description • On means carrier signal has been received. • Flashing means data is being received or/and transmitted. LINK/ACT • Off means no carrier signal has been received. • On means the interface is in a loopback.
Page 90: E1/T1 Interface Module
Item Specification Connector type SFP/LC Interface rate 155.52 Mbps IMPORTANT: If the interface receives signal over a long-distance optical fiber, make sure the transmission distance is longer than 25 km (15.53 miles). If the transmission distance is shorter than 25 km (15.53 miles), use an optical attenuator to reduce the optical power.
Page 91: Hmim-2E1/Hmim-4E1/Hmim-4E1-F
• HMIM-4T1-F • HMIM-8E1T1 • HMIM-8E1T1-F HMIM-2E1/HMIM-4E1/HMIM-4E1-F Introduction The 2-port channelized E1/PRI interface module (HMIM-2E1) and 4-port channelized E1/PRI interface module (HMIM-4E1) transmit, receive, and process E1 data traffic. In addition, you can use these modules for CE1 access and ISDN PRI. The HMIM-4E1-F module is different from the HMIM-4E1 module in the following ways: The FE1 operating mode supported by the E1-F module allows only one n ×...
Page 92: Hmim-8E1
Figure 100 HMIM-4E1-F panel Table 136 LED description Description • On means carrier signal has been received. • Flashing means data is being received or/and transmitted. LINK/ACT • Off means no carrier signal has been received. • On means the interface is in a loopback. •...
Page 93: Hmim-2T1/Hmim-4T1-F
Item Description • Backup • Terminal access service Supported services • ISDN PRI Interface LEDs Figure 101 HMIM-8E1 (75-ohm) panel Figure 102 LED description Description • On means carrier signal has been received. • Flashing means data is being received or/and transmitted. LINK/ACT •...
Page 94: Hmim-8E1T1/Hmim-8E1T1-F
Item Specification • G.703/T1 102 • G.704 • AT & T TR 54016 Interface standard • AT & T TR 62411 • ANSI T1.403 Interface rate 1.544 Mbps cable type T1 cable (100-ohm shielding network cable) CT1, ISDN PRI (only supported by the HMIM-2T1) Operating mode FT1 (only supported by the HMIM-4T1-F) •...
Page 95 The 8-port fractional T1 interface module allows only one bundle. The time slots can only be bundled into one n × 64 Kbps/56 Kbps channel, where the value range of n is 1 to 31. The module does not support the PRI mode. •...
Page 96 Interface specifications Table 140 Interface specifications Item Specification Connector type RJ-45 Number of connectors • G.703/G.704 • T1 102 • AT&T TR 54016 Interface standard • AT&T TR 62411 • ANSI T1.403 • 1.544 Mbps Interface rate • 2.048 Mbps •...
Page 97: E3/T3 Interface Module
Interface cables and connection methods For more information about E1 interface cables, see "E1 interface." For more information about T1 interface cables, see "T1 interface." E3/T3 interface module • HMIM-1CE3 • HMIM-1CT3 • HMIM-1E3T3 HMIM-1CE3 Introduction The 1-port channelized E3 interface module (HMIM-1CE3) provides the following features: •...
Page 98: Hmim-1Ct3
Table 143 LED description Description • On means carrier signal has been received. • Flashing means data is being received or/and transmitted. LINK/ACT • Off means no carrier signal has been received. • On means the interface is in a loopback. •...
Page 99: Hmim-1E3T3
Item Specification Supported services T3 leased line Interface LEDs Figure 109 HMIM-1CT3 panel Table 145 LED description Description • On means carrier signal has been received. • Flashing means data is being received or/and transmitted. LINK/ACT • Off means no carrier signal has been received. •...
Page 100: Serial Interface Module
Item Specification Supported services T3 leased line Interface LEDs Figure 110 HMIM-1E3T3 panel Table 147 LED description Description • On: Carrier signal has been received. • Flashing: Data is being received or/and transmitted. LINK/ACT • Off: No carrier signal has been received. •...
Page 101 Item Synchronous Asynchronous Minimum baud rate (bps) 1200 1200 Maximum baud rate (bps) 64 k 2.048 M 115.2 V.24 (RS232) DTE cable V.24 (RS232) DCE cable V.35 DTE cable V.35 DCE cable X.21 DTE cable cable type X.21 DCE cable RS449 DTE cable RS449 DCE cable RS530 DTE cable...
Page 102: Hmim-16Ase
Interface cables and connection methods more information about synchronous/asynchronous serial port cables, "Synchronous/asynchronous serial ports." HMIM-16ASE Introduction The 16-port ASE module (HMIM-16ASE) is an enhanced asynchronous serial interface module that transmits, receives, and handles asynchronous serial interface data streams. It uses RJ-45 connectors and AUX cables.
Page 103: Voice Interface Module
Voice interface module • HMIM-16FXS • HMIM-2VE1 • HMIM-1VE1 • HMIM-2VT1 • HMIM-1VT1 • HMIM-4FXS • HMIM-4FXO • HMIM-4E&M HMIM-16FXS Introduction The 16-port loop trunk interface module HHMIM-16FXS provides access for and handles 16 channels of analog voice signals over data communication networks. The module provides 16 FXS interfaces.
Page 104: Hmim-2Ve1
Interface cables and connection methods more information about interface cables connection methods, "ADSL/BS/FXS/FXO/AM/FCM interface." HMIM-2VE1 Introduction The 2-port E1 voice interface module (HMIM-2VE1) handles dense voice signals in VoIP system. It provides two CE1/PRI/R2 ports that allow access of a maximum of 60 channels of voice signals. Interface specifications Table 155 Interface specifications Item...
Page 105: Hmim-2Vt1
Interface cables and connection methods For more information about E1 interface cables and connection methods, see "E1 interface." HMIM-2VT1 Introduction The 2-port T1 voice interface module HMIM-2VT1 handles dense voice signals in VoIP system. It provides two CT1/PRI ports that allow access of a maximum of 48 channels of voice signals. Interface specifications Table 157 Interface specifications Item...
Page 106: Hmim-1Ve1
Interface cables and connection methods For more information about T1 interface cables and connection methods, see "T1 interface." HMIM-1VE1 Introduction The 1-port E1 voice interface module (HMIM-1VE1) handles dense voice signals in VoIP system. It provides a CE1/PRI/R2 port that allows access of a maximum of 30 channels of voice signals. Interface specifications Table 159 Interface specifications Item...
Page 107: Hmim-1Vt1
Interface cables and connection methods For more information about E1 interface cables and connection methods, see "E1 interface." HMIM-1VT1 Introduction The 1-port T1 voice interface module (HMIM-1VT1) handles dense voice signals in VoIP system. It provides a CT1/PRI port that allows access of 24 channels of voice signals. Interface specifications Table 161 Interface specifications Item...
Page 108: Hmim-4Fxs/Hmim-4Fxo
Interface cables and connection methods For more information about T1 interface cables and connection methods, see "T1 interface." HMIM-4FXS/HMIM-4FXO Introduction The 4-port voice subscriber circuit interface module (HMIM-4FXS) processes and transmits voice signals for 2/4 regular analog phones, faxes, or AT0 loop trunks of telephone exchanges over data communications networks.
Page 109: Hmim-4E&M
HMIM-4E&M Introduction The 4-port voice E&M analog trunk interface module (HMIM-4E&M) provides and transmits voice signals for 4 E&M analog trunks over data communications networks. Interface specifications Table 165 Interface specifications Item Specification Connector RJ-45 Number of connectors • Telephone cable with ferrite core Cable type •...
Page 110: Fic/Dfic
Layer switching interface module (FIC-16FSW/FIC-16FSW-PoE/DFIC-24FSW/DFIC-24FSW-PoE) is used on the HPE MSR50 series router. A router installed with FIC-16FSW/DFIC-24FSW modules can act as a switching/routing integrated device on a small-sized enterprise network to connect PCs and network devices inside network. interfaces...
Page 111 FIC-16FSW/FIC-16FSW-PoE DFIC-24FSW/DFIC-24FSW-PoE Item module module 16 × 100 Mbps RJ-45 connector 24 × 100 Mbps RJ-45 connector 1 × 1000 Mbps RJ-45 connector 2 × 1000 Mbps RJ-45 connector Number of connectors 1 × SFP connector 2 × SFP connector 100 m (328.08 ft) over category-5 twisted pair cables (both crossover and Transmission distance straight-through)
Page 112: Ethernet Interface Module
Table 169 LED description for the FIC-16FSW/FIC-16FSW-PoE/DFIC-24FSW/DFIC-24FSW-PoE GE ports Description No link is present. Steady green A 1000 Mbps link is present, but no data is being transmitted and received. Flashing green A 1000 Mbps link is present and data is being transmitted and received (ACT). Steady yellow A 100 Mbps link is present, but no data is being transmitted and received.
Page 113: Fic-1Gbe/Fic-2Gbe
Specification Item FIC-2FE FIC-4FE Connector RJ-45 Number of connectors 100 m (328.08 ft) over category-5 twisted pair cables (both crossover Transmission distance and straight-through) Operating mode 10/100 Mbps auto-sensing, full duplex/half-duplex Ethernet_II Supported frame format Ethernet_SNAP Interface LEDs Figure 126 FIC-2FE panel Figure 127 FIC-4FE panel Table 172 LED description Description...
Page 114: Fic-1Gef/Fic-2Gef
Interface specifications Table 173 Interface specifications Item FIC-1GBE FIC-2GBE Connector RJ-45 Number of connectors Interface type MDI/MDIX Interface standard 802.3, 802.3u, and 802.3ab 100 m (328.08 ft) over category-5 twisted pair cables (both crossover Transmission distance and straight-through) Operating mode 10/100/1000 Mbps auto-sensing, half-duplex/full duplex Interface LEDs Figure 128 FIC-1GBE panel...
Page 115: Atm Interface Module
Interface specifications Table 175 Interface specifications Item FIC-1GEF FIC-2GEF Connector Number of interfaces Interface standard 802.3, 802.3u, 802.3ab Operating mode 1000 Mbps, full duplex Interface LEDs Figure 130 FIC-1GEF panel Figure 131 FIC-2GEF panel Table 176 LED description Description • Off means no link is present;...
Page 116: Fic-Ima-4E1/Fic-Ima-8E1
FIC-IMA-4E1/FIC-IMA-8E1 Introduction The 4-port/8-port E1 ATM inverse multiplexing interface module (FIC-IMA-4E1/FIC-IMA-8E1) provides four/eight E1 interfaces that support the IMA (inverse multiplexing for ATM) technology. IMA technology combines multiple low-speed links into a group to support a high-speed ATM cell stream. It distributes an ATM cell stream over multiple low-speed E1 links on cell by cell basis at the transmission end and reassembles the cells on the low-speed E1 links into the original stream at the far end.
Page 117: Fic-Ima-8T1
Table 178 LED description Description • Off means no link is present; LINK • On means a link is present. • Off means no data is being transmitted or received; • Flashing means data is being received or transmitted. Interface cables and connection methods For more information about E1 interface cables, see "E1 interface."...
Page 118: Fic-1Ae3
Description • Off means no data is being transmitted or received; • Flashing means data is being received or transmitted. Interface cables and connection methods For more information about T1 interface cables and connection methods, see "T1 interface." FIC-1AE3 Introduction The 1-port 34 Mbps ATM-E3 interface module (FIC-1AE3) provides the following features: •...
Page 119: Fic-1At3
Interface cables and connection methods For more information about E3 interface cables and connection methods, see "E3/T3 interface." FIC-1AT3 Introduction The 1-port 44 Mbps ATM-T3 interface module (FIC-1AT3) provides the following features: • Two ATM cell mapping modes: ADM and PLCP. •...
Page 120: Fic-1Atm-Oc3
FIC-1ATM-OC3 Introduction The 1-port ATM 155 Mbps optical interface module (FIC-1ATM-OC3) provides the following features: • Two frame formats: SDH STM-1 and SONET OC-3. • Scrambling in data transmission. • Line clock (when working as DTE interface), and internal clock (when working as DCE interface) •...
Page 121: Pos (Sdh/Sonet) Interface Module
POS (SDH/SONET) interface module • FIC-1POS FIC-1POS Introduction The 1-port SDH/SONET interface module (FIC-1POS) supports interface rates up to 155.52 Mbps (STM-1/OC-3). The FIC-1POS uses the protocols such as PPP, Frame Relay and HDLC at the data link layer and IP at the network layer.
Page 122: Cpos (Sdh/Sonet) Interface Module
CPOS (SDH/SONET) interface module • FIC-1CPOS FIC-1CPOS Introduction 1-port channelized SDH/SONET interface module (FIC-1CPOS) provides STM-1/OC3-compliant multi-channel interface and supports communication speeds up to 155.52 Mbps. The FIC-1CPOS supports the switchover of E1 and T1 interface modes. The FIC-1CPOS communicates with the CPU through the PCI interface to receive and transmit data on the STM-1 channelized POS interface.
Page 123: E1/T1 Interface Module
Description Note: AIS = Alarm indication signal; LFA = loss of frame alignment; RAI = Remote alarm indication Fiber ports, optical fibers, and the connection method For more information about fiber ports, optical fibers, and the connection methods, see "Fiber port."...
Page 124 Interface specifications Table 191 Interface specifications Specification Item FIC-2E1 FIC-4E1/FIC-4E1-F Connector Number of connectors Interface standard G.703, G.704 Interface rate 2.048 Mbps • E1 75-ohm unbalanced coaxial cable • E1 120-ohm balanced twisted-pair cable • 120-ohm 4E1 adapter cable (FIC-4E1/FIC-4E1-F) Cable type •...
Page 125: Fic-8E1
Table 192 LED description Description • On means carrier signal has been received. • Flashing means data is being received or/and transmitted. LINK/ACT • Off means no carrier signal has been received. • On means the interface is in a loopback. •...
Page 126: Fic-4T1-F
Interface LEDs Figure 143 FIC-8E1 (75-ohm) panel Table 194 LED description Description • On means carrier signal has been received. • Flashing means data is being received or/and transmitted. LINK/ACT • Off means no carrier signal has been received. • On means the interface is in a loopback.
Page 127: E3/T3 Interface Module
Interface LEDs Figure 144 FIC-4T1-F panel Table 196 LED description Description • On means the carrier signal has been received. • Off means no carrier signal has been received. LINK/ACT • Flashing means data is being transmitted or/and received. • On means the interface is in a loopback.
Page 128: Fic-1Ct3
Interface specifications Table 197 Interface specifications Item Specification Connector Number of connectors G.703 Interface standard G.704 G.751 Interface rate 34.368 Mbps Cable type E3/T3 cable (75-ohm coaxial cable) Operating mode Supported service E3 leased line Interface LEDs Figure 145 FIC-1CE3 panel Table 198 LED description Description •...
Page 129 • In CT3 mode, provides the subscribers with N × 64 kbps or N × 56 kbps low-speed access, where N is smaller than or equal to 128. NOTE: T3 represents the tertiary group rate (44.736 Mbps) of T system in the TDM system. Through T23 and T12A demultiplexing, a T3 channel can be channelized into 28 T1 lines.
Page 130: Isdn Bri Interface Module
Interface cables and connection methods For more information about T3 interface cables, see "E3/T3 interface." ISDN BRI interface module • FIC-4BSE FIC-4BSE Introduction The four-port ISDN BRI interface module (FIC-4BSE) transmits, receives, and processes four channels of ISDN BRI S/T data traffic on ISDN BRI S/T interfaces. The FIC-4BSE differs from the FIC-4BS only in the way they set matched resistance for an ISDN BRI S/T interface.
Page 131 Table 202 Set the jumpers on the FIC-4BSE Jumper settings & description • To use a 100-ohm matched resistance for data transmission, place the jumper over pins 1 and 2. • To do otherwise, place the jumper over jump pins 2 and 3. •...
Page 132: Serial Interface Module
Description • Off means no data is being received or transmitted. • Flashing means data is being received and/or transmitted. Interface cables and connection methods For more information about BSE interface cables, see "BSV/BSE interface." Serial interface module • FIC-4SAE •...
Page 133 V.24 (RS232) V.35 38400 20 m 65.6 ft) 38400 78 m (255.9 ft) 64000 20 m (65.6 ft) 56000 60 m (196.9 ft) 115200 10 m (32.8 ft) 64000 50 m (164 ft) — — 2048000 30 m (98.4 ft) NOTE: When a V.24 cable is used, make sure the baud rate of the FIC-SA in synchronous mode does not exceed 64 Kbps.
Page 134: Fic-8Ase/Fic-16Ase
Interface LEDs Figure 149 FIC-4SAE panel Table 206 LED description Description • Off means no link is present; LINK • On means a link is present. • Off means no data is being transmitted or received. • Flashing means data is being transmitted and/or received. Figure 150 FIC-8SAE front panel On the FIC-8SAE panel, each link has a LED.
Page 135: Voice Interface Module
Specification Item FIC-8ASE FIC-16ASE • AUX cable • Ethernet straight-through cable Cable type • FIC-8ASE/FIC-16ASE dumb terminal cable Min. baud rate (bps) Max. baud rate (bps) 115.2 k • Dialup through modem • Backup Service supported • Terminal access service •...
Page 136: Fic-4Fxs/Fic-4Fxo
FIC-4FXS/FIC-4FXO Introduction The 4-port voice subscriber circuit interface module (FIC-4FXS) processes and transmits over data communications networks voice signals for 4 regular analog phones, faxes, or AT0 loop trunks of telephone exchanges. The 4-port voice AT0 analog trunk interface module (FIC-4FXO) processes and transmits over data communications networks voice signals for 4 loops of telephone exchanges.
Page 137: Fic-4E&M
Interface cables and connection methods For more information about FXS / FXO interface cables and connection methods, see "ADSL/BS/FXS/FXO/AM/FCM interface." FIC-4E&M Introduction The 4-port voice E&M analog trunk interface module (FIC-4E&M) processes and transmits over data communications networks voice signals for 4 E&M analog trunks. Interface specifications Table 210 Interface specifications Item...
Page 138: Fic-24Fxs
FIC-24FXS Introduction The 24-port voice subscriber circuit interface module (FIC-24FXS) processes and transmits voice signals over data communications networks for 24 regular analog phones, faxes, or AT0 loop trunks of telephone exchanges. Interface specifications Table 212 Interface specifications Item Description Connector 50-pin D-type female connector Interface standard...
Page 139: Fic-2Vt1
Item Specification Operating mode ISDN PRI Interface rate 2.048 Mbps • E1 75-ohm unbalanced twisted pair cable • E1 120-ohm balanced twisted pair cable Cable • Coaxial connector, network connector, 75-to-120-ohm adapter (with BNC connector) • R2 signaling • DSS1 signaling Supported service •...
Page 140 Interface specifications Table 216 Interface specifications Item Specification Connector RJ-45 Number of connector • G.703/T1.102 • G.704 • AT&T TR 54016 Interface standard • AT&T TR 62411 • ANSI T1.403 Interface rate 1.544 Mbps Cable type T1 cable (100-ohm standard shielded cable) •...
Page 141: Fic-1Ve1
FIC-1VE1 Introduction The 1-port E1 voice interface module (FIC-1VE1) handles dense voice signals in VoIP system. It provides a CE1/PRI/R2 port that allows access of a maximum of 30 channels of voice signals. Interface specifications Table 218 Interface specifications Item Specification Connector Number of connectors...
Page 142: Fic-1Vt1
FIC-1VT1 Introduction The 1-port T1 voice interface module (FIC-1VT1) handles dense voice signals in VoIP system. It provides a CT1/PRI port that allows access of a maximum of 24 channels of voice signals. Interface specifications Table 220 Interface specifications Item Specification Connector RJ-45...
Page 143 Interface cables and connection methods For more information about T1 interface cables and connection methods, see "T1 interface."...
Page 144: Esm/Vcpm/Vpm
Yellow: The ANDE module is in the slot but cannot be accessed by the router. Note: x means the number of the slot the ESM LED is in. Installing and removing an ESM-ANDE module For more information about installing and removing an ESM-ANDE module, see the installation guides for the HPE MSR router models.
Page 145: Esm-Snde
ESM LED is in. Installing and removing an ESM-SNDE module For more information about installing and removing an ESM-SNDE module, see the installation guides for the HPE MSR router models. VCPM/VPM •...
Page 146: Vcpm
VCPM and VPM on the main board of the router. The number of VPMs needed depends on the number of calls. Installation should be performed by HPE Support or an authorized HPE partner.
Page 147: Vpm
X means the slot number VCPM module LED is on. Installing/removing a VCPM module For more information about how to install or remove a VCPM module, see the installation guides for HPE MSR series routers. Introduction The Voice Processing Module (VPM) provides the following features: •...
Page 148: Cables And Connection Methods
Cables and connection methods Ethernet interface Ethernet cable appearance and applicable models Table 229 Ethernet cable appearance and applicable models Cable Appearance Applicable models SIC-4FSW SIC-4FSW-PoE DSIC-9FSW DSIC-9FSW-PoE SIC-4GSW SIC-4GSW-PoE MIM-16FSW MIM-16FSW-PoE DMIM-24FSW DMIM-24FSW-PoE FIC-16FSW FIC-16FSW-PoE DFIC-24FSW DFIC-24FSW-PoE SIC-1FEA SIC-1GEC Ethernet XMIM-16FSW cable...
Page 149 Category-5 cables provide a transmission frequency of 100 MHz for voice and data transmission. They are typically used in 100Base-T and 10Base-T networks. Category-5 cables are common Ethernet cables, which can also be used to transmit 1000 Mbps Ethernet data. Category-5 enhanced cables feature low attenuation and crosstalk, providing higher attenuation to crosstalk ratio (ACR), less delay error and higher performance than category-5 cables.
Page 150: Fiber Port
Connecting an Ethernet cable Connect one end of an Ethernet cable to an Ethernet interface on the module and the other end to the Ethernet interface on the peer device. Because the Ethernet interface of the module supports MDI/MDIX auto-sensing, you can use a straight-through cable or crossover cable to connect the interface.
Page 151 Description diame Output t code ngth (Mbp distan optical satu (nm) sensiti (µm) power ratio vity HPE X115 50/125 2 km 100M SFP LC –19 to ≤ –30 ≤ –14 (1.24 JD102B 1310 62.5/12 –14 miles) Transceiver HPE X110 15 km 100M SFP LC –15 to...
Page 152 (nm) power (µm) ance ation z*km (180 4.46 50/125 (164 HPE X120 1G 0.42 ≤ –17 ≤–3 JD118B SFP LC SX –9.5 to 0 Transceiver (902. 23 ft) 62.5/12 (721. 78 ft) HPE X120 1G 9/125 (6.21...
Page 153 (nm) power (µm) ance ation z*km (180 4.46 62.5/12 (180 4.46 HPE X125 1G SFP LC LH40 (24.8 ≤ –22 ≤ –3 JD061A 1310 9/125 –2 to +5 1310nm Transceiver miles HPE X120 1G SFP LC LH40 (24.8...
Page 154 Optica wavelengt sion Output diamete code h (nm) distance optical r (µm) sensit satura power ivity tion HPE X120 1310 1G SFP (TX) JD098 LC BX 10-U 1490 Transceive (RX) 10 km ≤ –18.7 ≤ –3 9/125 (6.21 –9 to –3...
Page 155: E1 Interface
Table 237 E1 cable appearance and applicable models Produ Applicable Description Cable Appearance numbe models SIC-1E1-F SIC-1EPRI MIM-1E1 MIM-1E1-F MIM-2E1 MIM-2E1-F HPE X260 E1 FIC-1E1 2*BNC 75 ohm 3m Router Cable FIC-1E1-F JD175A HPE X260 E1 FIC-2E1 1-port E1 JD514A BNC 20m Router 75-ohm cable FIC-2E1-F Cable JD516A 1 ×...
Page 156 Produ Applicable Description Cable Appearance numbe models HPE X260 E1 RJ45 120 ohm 2m Router Cable HPE X260 E1 HMIM-8E1T1 1-port E1 JC156A RJ45 120 ohm 120-ohm cable HMIM-8E1T1 JC151A 15m Router (2m,15m,30m) 1 × RJ45 < ---- > 1 × RJ45...
Page 157 Produ Applicable Description Cable Appearance numbe models MIM-8E1 DB68 MIM-8E1-F HPE X260 8E1 MIM-IMA-8E BNC 75 ohm 3m JD512A Router Cable 8-port E1 75-ohm cable FIC-8E1 JD927A HPE CAB-75ohm 8E1-3m-BNC-IM FIC-8E1-F FIC-IMA-8E1 1 × D68 < ---- > 16 × BNC...
Page 158 Table 238 DIP switch-to-interface map DIP switch E1 interface Applicable models MIM-2E1 MIM-4E1 MIM-4E1-F FIC-2E1 FIC-4E1 FIC-4E1-F HMIM-2E1 HMIM-4E1 Interface 0 HMIM-4E1-F SIC-1VE1 MIM-1VE1 MIM-2VE1 FIC-1VE1 FIC-2VE1 HMIM-1VE1 HMIM-2VE1 MIM-2E1 MIM-4E1 MIM-4E1-F FIC-2E1 FIC-4E1 FIC-4E1-F Interface1 HMIM-2E1 HMIM-4E1 HMIM-4E1-F MIM-2VE1 FIC-2VE1 HMIM-2VE1 MIM-4E1...
Page 159 Figure 161 Default DIP switch settings As a best practice, use the DIP switch as follows: • When the interface is connected to a 70-ohm cable, turn on switches BIT1 through 8. • When the interface is connected to a 120-ohm cable, turn off switches BIT1 through 8. DIP switch settings descriptions are shown in the following table: Table 239 Description for DIP switch settings Configuration of...
Page 160 To connect the BNC connectors of the E1 75-ohm cable to the remote network device: Connect the D15/D68 connector of the E1 75-ohm cable to the D15/D68 interface of the interface module and fasten the bolts to fix the cable. The other end of the cable provides one pair or multiple pairs of 75-ohm BNC connectors.
Page 161 Figure 164 Connecting an impedance converter 1/2/4/8-port E1 75-ohm cable Straight-through cable Device (120ohm E1 Port) E1 / E1-F (75ohm) Impedance converter Connecting a 4-port E1 75-ohm cable (D25 <----> D15) Connect the D25 connector of the 4-port E1 75-ohm cable to the D25 interface of the interface module and fasten the bolts to fix the cable.
Page 162: T1 Interface
Connecting a 4-port E1 120-ohm cable (D25 <----> D15) Connect the D25 connector of the 4-port E1 120-ohm cable to the D25 interface on the interface module and fasten the bolts to fix the cable. The other end of the cable provides four D15 connectors. Connect them to the D15 interface on the remote device as needed.
Page 163 MIM-2T1 MIM-2T1-F MIM-4T1-F FIC-1T1 FIC-1T1-F FIC-2T1 FIC-2T1-F FIC-4T1 FIC-4T1-F 1-port T1 cable HMIM-2T1 JD518 HPE X260 T1 (100- ohm HMIM-4T1-F 1 × RJ45 < ---- > 1 × RJ45 Router Cable standard SIC-1VE1T1 shielded cable) SIC-1VE1T1 SIC-1VT1 MIM-1VT1 MIM-2VT1 FIC-1VT1...
Page 164: E3/T3 Interface
E3/T3 cable appearance and applicable models Table 241 E3/T3 cable appearance and applicable models Product Applicable Description Cable Appearance number models MIM-1CE3 MIM-1CT3 FIC-1CE3 HPE X260 BNS头 T3/E3 Router SMB头 FIC-1CT3 E3/T3 Cable JD531A interface FIC-1AE3 JD533A HPE X260 cable FIC-1AT3 1 ×...
Page 165: Synchronous/Asynchronous Serial Ports
Table 242 Appearance and applicable models of synchronous/asynchronous serial port cables Product Applicable Description Cable Appearance number models Pos.1 Pos.1 HPE X200 V.24 V.24 DTE JD519A DTE 3m Serial cable Port Cable Pos.28 Pos.25 1 × D25 (male) < ---- > 1 × D28 Pos.25 Pos.1 HPE X200 V.24...
Page 166: Asynchronous Serial Ports
Product Applicable Description Cable Appearance number models Pos.1 Pos.28 HPE X260 RS449 RS-449 JF826A 3m DCE Serial Port Cable cable Pos.1 Pos.37 1 × D28 < ---- > 1 × D37 (female) Pos.1 Pos.1 HPE X260 RS530 RS-530 JF827A 3m DTE Serial...
Page 167 Product Applicable Description Cable Appearance number models 4-port asynchron HPE X260 mini D-28 ous serial JG263A to 4-RJ45 0.3m SIC-16AS port Router Cable adapter cable 1 × D28 < ---- > 4 × RJ45 (female) MIM-8ASE MIM-16ASE Straight-thr FIC-8ASE ough cable 1 ×...
Page 168 Figure 168 Connecting a telecommunication device Asynchronous serial Straight-through cable port adapter cable Telecom device 16AS • If the remote device is a bank dumb terminal device: • Connect the RJ45 connector (male) on one end of the dumb terminal cable to the RJ45 interface on the asynchronous serial port adapter cable.
Page 169 Figure 170 Connecting a modem Asynchronous serial AUX cable port adapter cable Modem 16AS Connecting a MIM-8ASE/MIM-16ASE/FIC-8ASE/FIC-16ASE interface module CAUTION: • To avoid damage to the device and the ports, do not plug or unplug the MIM-8ASE/MIM-16ASE module interface cable when the router is powered on. •...
Page 170 Figure 172 Connecting a bank dumb terminal device Dumb terminal Straight- Dumb terminal adapter adapter cable through cable Bank dumb terminal device 8ASE 16ASE • If the interface of the remote device is a D25/D9 interface, use the AUX cable to connect the RJ45 interface on the MIM-8ASE/MIM-16ASE/FIC-8ASE/FIC-16ASE interface module.
Page 171: Adsl/Bs/Fxs/Fxo/Am/Fcm Interface
ADSL/BS/FXS/FXO/AM/FCM interface Appearance and applicable models of the magnetic-core telephone cable Table 244 Appearance and applicable models of magnetic-core telephone cable Applicable Cable Appearance models SIC-1ADSL SIC-1ADSL-I SIC-1BS SIC-1FXS SIC-1FXO SIC-2FXS SIC-2FXO SIC-2FXS1FXO DSIC-4FXS1FXO MIM-2FXS Magnetic-core MIM-2FXO telephone cable MIM-4FXS 1 ×...
Page 172: E&M Interface
Figure 174 Connecting the U interface cable to the SIC-1BS interface module Magnetic-core telephone cable ISDN U interface cable of Service provider SIC-1BS If the service provider provides an ISDN S/T interface cable, directly connect the cable to the RJ45 interface of the SIC-1BS interface module. Figure 175 Connecting the S/T interface cable to the SIC-1BS interface module ISDN S/T interface cable of Service provider SIC-1BS...
Page 173: 24Fxs Interface
24FXS interface cable appearance and the applicable model Table 246 24FXS interface cable appearance and the applicable model Product Applicable Description Cable Appearance number models HPE A-MSR 50 pin D-sub 24FXS Male to 24 × JG318A interface FIC-24FXS RJ-11 Plug cable...
Page 174: Bsv/Bse Interface
Connecting the cable Connect the D50 interface (male) of the 24FXS interface cable to the FIC-24FXS interface module. Connect the other end of the 24FXS interface cable to the RJ11 interface on the remote device. BSV/BSE interface BSV/BSE interface cable appearance and applicable models Table 247 BSV/BSE interface cable appearance and applicable models Applicable Cable...
Page 175 Figure 177 Connecting a service provider U interface cable to a BSV interface module ISDN S/T interface standard cable ISDN U interface cable of service provider If the service provider provides an ISDN S/T interface cable, directly connect the service ...
Page 176 Connecting a FIC-4BSE interface module cable Choose the cable connection type according to the service provider line type: • If the service provider provides an ISDN U interface cable, you must use an NT1 device for adaptation. a. Connect one end of the standard ISDN S/T interface cable to the RJ45 interface of the BSE interface module.
Page 177: G.shdsl Interface
G.SHDSL interface Appearance and applicable models of the G.SHDSL interface adapter cable Table 248 Appearance and applicable models of the G.SHDSL interface adapter cable Applicable Cable Appearance models 8-wire G.SHDSL DSIC-1SHDSL-8W interface cable 1 × RJ45 (8 wires) < ---- > 2 × RJ11 (4 wire) 4-wire Y type G.SHDSL MIM-1SHL-4W...
Page 178 Table 249 Pinouts of DSIC-1SHDSL-8W interface module cable Line Signal Ring Ring Ring Ring Connecting a MIM-1SHL-4W interface module cable One end of the cable provides one RJ11 connector, the other end of the cable provides two RJ11 connectors that can be connected to two 2-core telephone cables. To connect the 4-wire Y type G.SHDSL interface cable: Connect the end with only one RJ11 connector of the cable to RJ11 interface on the MIM-1SHL-4W interface module...
Page 179: Wlan Interface
WLAN interface Appearance and applicable models of the WLAN interface module antenna Table 251 Appearance and applicable models of the WLAN interface module antenna Cable Appearance Applicable models SIC-WLAN-b/g/n WLAN interface module antenna SIC-WLAN-b/g/n(NA) Connecting a WLAN interface module antenna To install an antenna, adjust the angle of the antenna to 180º.
Page 180 Product Applicable Description Cable Appearance number models HPE X260 JD508A Auxiliary Router AUX cable Cable 1 × D25 & 1 × D9 < ---- > 1 × RJ45 Table 253 Detailed specifications for the SIC-3G-GSM/SIC-3G-HSPA / SIC-3G-HSPA+ interface module antenna...
Page 181: Interface
4G interface Appearance and applicable models of the SIC-4G-LTE-V/SIC-4G-LTE-A/SIC-4G-LTE-G interface module antenna Table 254 Appearance and applicable models of the 4G interface module antenna Appearance Applicable models SIC-4G-LTE-V SIC-4G-LTE-A SIC-4G-LTE-G Table 255 Specifications Item Description Frequency scope 698 to 960 MHz/1.71 to 2.7 GHz Voltage standing wave ratio Input impedance 50 ohms...
Page 182 Connect the other end to the Mini USB port on the interface module.
Page 183: Appendix A Interface Module List
Appendix A Interface module list The full names and abbreviations of the interface modules are listed below. To simplify the descriptions in the guide, abbreviations are used to identify the interface modules. Table 256 Interface module list Product code Full name Abbreviation Height JD573B...
Page 184 Product code Full name Abbreviation Height JD576B RT-SIC-1VT1-V2-H3 SIC-1VT1 0.5U JH240A RT-SIC-1VE1T1 SIC-1VE1T1 0.5U JF819A RT-SIC-AP-H3 SIC-WLAN-b/g/n 0.5U JG211A RT-SIC-AP-H3 SIC-WLAN-b/g/n (NA) 0.5U JF820A RT-SIC-3G-GSM-H3 SIC-3G-GSM 0.5U JG187A RT-SIC-3G-HSPA-H3 SIC-3G-HSPA 0.5U JG929A RT-SIC-3G-HSPA+-H3 SIC-3G-HSPA+ 0.5U JG739A RT-SIC-4GSW SIC-4GSW 0.5U JH239A RT-SIC-4GSWF SIC-4GSWF 0.5U...
Page 185 Product code Full name Abbreviation Height JC159A RT-MIM-8T1-F-H3 MIM-8T1-F 0.5U JD630A RT-MIM-1CE3-V2-H3 MIM-1CE3 0.5U JD628A RT-MIM-1CT3-V2-H3 MIM-1CT3 0.5U JD547A RT-MIM-1SHL-4W-H3 MIM-1SHL-4W 0.5U JD540A RT-MIM-2SAE-H3 MIM-2SAE 0.5U JD541A RT-MIM-4SAE-H3 MIM-4SAE 0.5U JD552A RT-MIM-8SAE-H3 MIM-8SAE 0.5U JF840A RT-MIM-8ASE-H3 MIM-8ASE 0.5U JF841A RT-MIM-16ASE-H3 MIM-16ASE JD543A RT-MIM-2FXO-V2-H3...
Page 186 Product code Full name Abbreviation Height JH169A RT-HMIM-8E1T1 HMIM-8E1T1 0.5U JH172A RT-HMIM-8E1T1-F HMIM-8E1T1-F 0.5U JG436A RT-HMIM-1CE3 HMIM-1CE3 0.5U JG435A RT-HMIM-1CT3 HMIM-1CT3 0.5U JH449A RT-HMIM-1E3T3 HMIM-1E3T3 0.5U JG442A RT-HMIM-4SAE HMIM-4SAE 0.5U JG443A RT-HMIM-8SAE HMIM-8SAE 0.5U JG445A RT-HMIM-16ASE HMIM-16ASE JG431A RT-HMIM-2VE1 HMIM-2VE1 JG429A RT-HMIM-1VE1 HMIM-1VE1...
Page 187 Product code Full name Abbreviation Height JD585A RT-FIC-8E1(75)-V3-H3 FIC-8E1(75) JD586B RT-FIC-8T1-V2-H3 FIC-8T1 JD592A RT-FIC-4T1-F-V3-H3 FIC-4T1-F JD625A RT-FIC-1CE3-V3-H3 FIC-1CE3 JD629A RT-FIC-1CT3-V3-H3 FIC-1CT3 JD589A RT-FIC-4BSE-V2-H3 FIC-4BSE JD584A RT-FIC-4SAE-V2-H3 FIC-4SAE JD580A RT-FIC-8SAE-V2-H3 FIC-8SAE JF260B RT-FIC-8ASE-V2-H3 FIC-8ASE JF265B RT-FIC-16ASE-V2-H3 FIC-16ASE JD594A RT-FIC-4FXS-V3-H3 FIC-4FXS JD593A RT-FIC-4FXO-V3-H3 FIC-4FXO JG197A...
Page 188: Appendix B Purchase Guide
Appendix B Purchase guide This appendix introduces to you the types of interface modules that each model of HPE MSR routers can accommodate. In the tables, "Yes" means "Supported" and "No" means "Not supported. SIC/DSIC purchase guide NOTE: • MSR50(MPU-G2), MSR4000, MSR900, and MSR930 routers do not support the installation of SIC/DSIC interface module.
Page 189 50-40 30-11E 30-20/ Product 20-1 20-20/ 50-60 Type 20-40 30-10 /30-11 30-16 30-40/ code 20-21 30-60 Yes in Yes in Yes in Yes in SIC-1GE Slot 2 Yes in Yes in Slot 2 Slot 2 Slot 2 JD572A C-H3 and Slot Slot 2 Slot 2 and Slot...
Page 190 50-40 30-11E 30-20/ Product 20-1 20-20/ 50-60 Type 20-40 30-10 /30-11 30-16 30-40/ code 20-21 30-60 Yes in JD575B SIC-1VE1 Slot 1 Yes in JD576B SIC-1VT1 Slot 1 SIC-1VE1 JH240A Yes in Yes in Yes in Yes in SIC-3G-G Slot 2 Yes in Yes in Slot 2...
Page 191 1003-8 Produc 2004-2 Type 1002-4 /1003- 2003 3012 3024 3044 3064 t code 4/48 Yes in Yes in Yes in Slot 2 Slot 2 Slot 2 DSIC-9 Yes in Yes in Yes in JD574B Slot 2 Slot 2 Slot 2 and Slot and Slot Slot 4...
Page 192 1003-8 Produc 2004-2 Type 1002-4 /1003- 2003 3012 3024 3044 3064 t code 4/48 SIC-2F JD560A SIC-1F JD559A SIC-2F JD558A SIC-2F XS1FX JD632A Yes in Yes in Yes in DSIC-4 Yes in Yes in Yes in Slot 2 Slot 2 Slot 2 JG189A FXS1F...
Page 193: Mim/Xmim/Dmim Purchase Guide
1003-8 Produc 2004-2 Type 1002-4 /1003- 2003 3012 3024 3044 3064 t code 4/48 Yes in Yes in Yes in Yes in Yes in Yes in Slot 2 Slot 2 Slot 2 Slot 2 Slot 2 Slot 2 Yes in 4G-LT JG743B Slot 2...
Page 194 30-11E/30-11F/ 30-40/ Product code Type 30-10 30-20 30-16 30-60 MIM-IMA-8E1(7 JD555B JD556A MIM-IMA-4T1 JG193A MIM-1POS JD544A MIM-2E1 JD550A MIM-4E1 JF257B MIM-4E1-F JD563A MIM-8E1(75) JF255A MIM-8E1(75)-F JD549A MIM-2T1 JF254B MIM-4T1-F JC160A MIM-8T1 JC159A MIM-8T1-F JD630A MIM-1CE3 JD628A MIM-1CT3 JD547A MIM-1SHL-4W JD540A MIM-2SAE JD541A MIM-4SAE...
Page 195: Hmim Purchase Guide
HMIM purchase guide NOTE: • Only MSR3000, MSR4000 routers support the installation of the HMIM interface modules. • A PoE interface module provides PoE features only when it is installed on a PoE device. Table 259 HMIM options Product Type 3012 3024 3044...
Page 196: Fic/Dfic Purchase Guide
Product Type 3012 3024 3044 3064 4060 4080 code HMIM-4T1- JG457A HMIM-8E1 JH169A HMIM-8E1 JH172A T1-F HMIM-1CE JG436A HMIM-1CT JG435A HMIM-1E3 JH449A HMIM-4SA JG442A HMIM-8SA JG443A HMIM-16A JG445A HMIM-2VE JG431A HMIM-1VE JG429A HMIM-2VT JG432A HMIM-1VT JG430A HMIM-16F JG434A HMIM-4FX JG446A HMIM-4FX JG447A HMIM-4E&...
Page 197 Table 260 FIC/DFIC options Product code Type 50-40/ 50-60 MPUF 50-40/ 50-60 MPU-G2 JD604A FIC-16FSW FIC-16FSW-PO JD616A JD603A DFIC-24FSW DFIC-24FSW-P JD617A JD577A FIC-2FE JF824A FIC-4FE JD583B FIC-1GBE JF269B FIC-2GBE JD582A FIC-1GEF JF270B FIC-2GEF FIC-IMA-4E1(75 JD622A FIC-IMA-8E1(75 JF278B JD596A FIC-1AE3 JD595A FIC-1AT3 JG200A FIC-IMA-8T1...
Page 198: Esm/Vpm/Vcpm Purchase Guide
Product code Type 50-40/ 50-60 MPUF 50-40/ 50-60 MPU-G2 JD602A FIC-4E&M JD607A FIC-1VE1 JD605A FIC-1VT1 JD587A FIC-2VE1 JD606A FIC-2VT1 ESM/VPM/VCPM purchase guide Table 261 ESM/VPM/VCPM options 50-4 20-1 30-2 50-6 20-2 30-1 0/20 0/30 Product 20-1 20-4 30-1 30-1 Type -11/ -40/ code...
Page 199: Index
Index BS interface, Numerics BSE interface, 3G interface module BSV interface, SIC-3G-GSM, E&M interface, SIC-3G-HSPA, 32, 33 E1 interface, 4G interface module E3 interface, SIC-4G-LTE-A, 38, 40, 42, 44 Ethernet interface, SIC-4G-LTE-G, 38, 40, 42, 44 FCM interface, SIC-4G-LTE-V, 35, 37 fiber port, FXO interface, antenna...
Page 200 E3 interface, FIC-IMA-8T1, FXO interface, Ethernet interface, FCM interface, FXS interface, fiber port, G.SHDSL interface, HMIM-16ASE, FIC-16ASE, FIC-16FSW, HMIM-16FXS, FIC-16FSW-PoE, HMIM-1CE3, FIC-1AE3, HMIM-1CPOS, FIC-1AT3, HMIM-1CT3, 93, 94 HMIM-1POS, FIC-1ATM-OC3, FIC-1CE3, HMIM-1VE1, FIC-1CPOS, HMIM-1VT1, HMIM-24GSW, FIC-1CT3, FIC-1GBE, HMIM-24GSW-PoE, FIC-1GEF, HMIM-2E1, HMIM-2E1T1, FIC-1POS, FIC-1VE1, HMIM-2E1T1-F,...
Page 201 HMIM-8SAE, SIC-1ADSL-I, SIC-1BS, MIM-16ASE, MIM-16FSW, SIC-1BSV, MIM-16FSW-PoE, SIC-1E1-F, SIC-1EPRI, MIM-16FXS, MIM-1ATM-OC3, SIC-1FEA, MIM-1CE3, SIC-1FEF, MIM-1CT3, SIC-1FXO, MIM-1POS, SIC-1FXS, SIC-1GEC, MIM-1SHL-4W, MIM-1VE1, SIC-1SAE, MIM-1VT1, SIC-1T1-F, SIC-1VE1, MIM-2E1, MIM-2FE, SIC-1VT1, MIM-2FXO, SIC-2BSV, SIC-2E1-F, MIM-2GBE, MIM-2SAE, SIC-2FXO, MIM-2T1, SIC-2FXS, SIC-2FXS1FXO, MIM-2VE1, MIM-2VT1, SIC-2SAE, MIM-4BSV, SIC-3G-GSM, SIC-3G-HSPA,...
Page 202 HMIM-1CPOS, MIM-8T1, MIM-8T1-F, SIC-1E1-F, SIC-1EPRI, FIC-4SAE, SIC-1T1-F, FIC-8SAE, SIC-2E1-F, DFIC SIC-EPRI, Ethernet switching module, E3/T3 interface module DMIM FIC-1CE3, Ethernet switching module, FIC-1CT3, DSIC HMIM-1CE3, Ethernet switching module, HMIM-1CT3, voice interface module, HMIM-1E3T3, XDSL interface module, MIM-1CE3, MIM-1CT3, FIC-4SAE, FIC-8SAE, ESM-ANDE, ESM-SNDE, E1 cable...
Page 203 MIM-4FE, MIM-1ATM-OC3, MIM-1POS, SIC-1FEA, SIC-1FEF, SIC-1FEF, SIC-1GEC, ATM interface module, Ethernet interface switching module HMIM-24GSW, CPOS (SDH/SONET) interface module, HMIM-24GSW-PoE, E1/T1 interface module, HMIM-8GSW, E3/T3 interface module, HMIM-8GSWF, Ethernet interface module, Ethernet switching module Ethernet switching module, DFIC-24FSW, ISDN BRI interface module, DFIC-24FSW-PoE, POS (SDH/SONET) interface module, serial interface module,...
Page 204 DMIM-24FSW, FIC-8E1, FIC-8SAE, DMIM-24FSW-PoE, DSIC-1SHDSL-8W, FIC-IMA-4E1, DSIC-4FXS1FXO, FIC-IMA-8E1, FIC-IMA-8T1, DSIC-9FSW, DSIC-9FSW-PoE, HMIM-16ASE, ESM-ANDE, HMIM-16FXS, ESM-SNDE, HMIM-1CE3, FIC-16ASE, HMIM-1CPOS, HMIM-1CT3, FIC-16FSW, FIC-16FSW-PoE, HMIM-1E3T3, FIC-1AE3, HMIM-1POS, HMIM-1VE1, FIC-1AT3, FIC-1ATM-OC3, HMIM-1VT1, FIC-1CE3, HMIM-24GSW, HMIM-24GSW-PoE, FIC-1CPOS, FIC-1CT3, HMIM-2E1, FIC-1GBE, HMIM-2E1T1, HMIM-2E1T1-F, FIC-1GEF, FIC-1POS, HMIM-2GEE, FIC-1VE1, HMIM-2GEF, HMIM-2T1,...
Page 205 HMIM-8GSW, SIC-16AS, SIC-1ADSL, HMIM-8GSWF, HMIM-8SAE, SIC-1ADSL-I, MIM-16ASE, SIC-1BS, SIC-1BSV, MIM-16FSW, MIM-16FSW-PoE, SIC-1E1-F, MIM-16FXS, SIC-1EPRI, MIM-1ATM-OC3, SIC-1FEA, MIM-1CE3, SIC-1FEF, SIC-1FXO, MIM-1CT3, MIM-1POS, SIC-1FXS, MIM-1SHL-4W, SIC-1GEC, SIC-1SAE, MIM-1VE1, MIM-1VT1, SIC-1T1-F, MIM-2E1, SIC-1VE1, SIC-1VT1, MIM-2FE, MIM-2FXO, SIC-2BSV, MIM-2GBE, SIC-2E1-F, SIC-2FXO, MIM-2SAE, MIM-2T1, SIC-2FXS, MIM-2VE1, SIC-2FXS1FXO, SIC-2SAE,...
Page 206 XMIM-24FSW, FIC-IMA-8E1, FIC-IMA-8T1, interface cable DFIC, HMIM-16ASE, DFIC-24FSW, HMIM-16FXS, HMIM-1CE3, DFIC-24FSW-PoE, DMIM-24FSW, HMIM-1CT3, 93, 94 DMIM-24FSW-PoE, HMIM-1VE1, DSIC-1SHDSL-8W, HMIM-1VT1, DSIC-4FXS1FXO, HMIM-24GSW, HMIM-24GSW-PoE, DSIC-9FSW, DSIC-9FSW-PoE, HMIM-2E1, FIC, HMIM-2E1T1, HMIM-2E1T1-F, FIC-16ASE, FIC-16FSW, HMIM-2GEE, FIC-16FSW-PoE, HMIM-2GEF, HMIM-2T1, FIC-1AE3, FIC-1AT3, HMIM-2VE1, FIC-1CE3, HMIM-4E&M, HMIM-4E1, FIC-1CT3, FIC-1VE1, HMIM-4E1-F,...
Page 207 MIM-1CE3, SIC-1FXS, SIC-1GEC, MIM-1CT3, MIM-1SHL-4W, SIC-1SAE, MIM-1VE1, SIC-1T1-F, SIC-1VE1, MIM-1VT1, MIM-2E1, SIC-1VT1, MIM-2FE, SIC-2BSV, MIM-2FXO, SIC-2E1-F, MIM-2GBE, SIC-2FXO, SIC-2FXS, MIM-2SAE, MIM-2T1, SIC-2FXS1FXO, MIM-2VE1, SIC-2SAE, SIC-3G-GSM, MIM-2VT1, MIM-4BSV, SIC-3G-HSPA, 33, 35 MIM-4E&M, SIC-4FSW, SIC-4FSW-PoE, MIM-4E1, MIM-4E1-F, SIC-4G-LTE-G, 40, 42, 43, 45 MIM-4FE, SIC-4G-LTE-V, 36, 38...
Page 208 VCPM, 138, 139, 140 FIC-4FE, FIC-4FX, VPM, 138, 139, 141 XMIM, FIC-4FXO, introduction FIC-4SAE, FIC-4T1-F, DFIC-24FSW, DFIC-24FSW-PoE, FIC-8ASE, DMIM-24FSW, FIC-8E1, DMIM-24FSW-PoE, FIC-8SAE, DSIC-1SHDSL-8W, FIC-IMA-4E1, FIC-IMA-8E1, DSIC-4FXS1FXO, DSIC-9FSW, FIC-IMA-8T1, DSIC-9FSW-PoE, HMIM-16ASE, HMIM-16FXS, ESM-ANDE, ESM-SNDE, HMIM-1CE3, FIC-16ASE, HMIM-1CPOS, HMIM-1CT3, FIC-16FSW, FIC-16FSW-PoE, HMIM-1E3T3, FIC-1AE3, HMIM-1POS, HMIM-1VE1,...
Page 209 HMIM-4T1-F, MIM-8T1, MIM-8T1-F, HMIM-8E1, HMIM-8E1T1, MIM-IMA-4T1, HMIM-8E1T1-F, MIM-IMA-8E1, SIC-16AS, HMIM-8GEE, HMIM-8GEF, SIC-1ADSL, HMIM-8GSW, SIC-1ADSL-I, HMIM-8GSWF, SIC-1BS, HMIM-8SAE, SIC-1BSV, SIC-1E1-F, MIM-16ASE, MIM-16FSW, SIC-1EPRI, MIM-16FSW-PoE, SIC-1FEA, SIC-1FEF, MIM-16FXS, MIM-1ATM-OC3, SIC-1FXO, MIM-1CE3, SIC-1FXS, SIC-1GEC, MIM-1CT3, MIM-1POS, SIC-1SAE, MIM-1SHL-4W, SIC-1T1-F, SIC-1VE1, MIM-1VE1, MIM-1VT1, SIC-1VT1, MIM-2E1, SIC-2BSV, SIC-2E1-F,...
Page 210 XMIM-16FSW, FIC-4E1-F, FIC-4FE, XMIM-24FSW, ISDN BRI interface module FIC-4FX, FIC-4BSE, FIC-4FXO, FIC-4SAE, SIC-1BS, FIC-4T1-F, FIC-8ASE, jumper setting FIC-8E1, FIC-4BSE, FIC-8SAE, FIC-IMA-4E1, FIC-IMA-8E1, DMIM-24FSW, FIC-IMA-8T1, DMIM-24FSW-PoE, HMIM-16ASE, DSIC-1SHDSL-8W, HMIM-16FXS, DSIC-4FXS1FXO, HMIM-1CE3, ESM-ANDE, HMIM-1CPOS, ESM-SNDE, HMIM-1CT3, FIC-16ASE, HMIM-1E3T3, FIC-1AE3, HMIM-1POS, FIC-1AT3, HMIM-1VE1, FIC-1ATM-OC3, HMIM-1VT1, FIC-1CE3,...
Page 211 HMIM-4SAE, MIM-8E1, MIM-8E1-F, HMIM-4T1-F, HMIM-8E1, MIM-8SAE, HMIM-8E1T1, MIM-8T1, MIM-8T1-F, HMIM-8E1T1-F, HMIM-8GEE, MIM-IMA-4T1, HMIM-8GEF, MIM-IMA-8E1, HMIM-8GSW, SIC-16AS, HMIM-8GSWF, SIC-1ADSL, SIC-1ADSL-I, HMIM-8SAE, MIM-16ASE, SIC-1BS, MIM-16FSW, SIC-1BSV, SIC-1E1-F, MIM-16FSW-PoE, MIM-16FXS, SIC-1EPRI, MIM-1ATM-OC3, SIC-1FEA, SIC-1FEF, MIM-1CE3, MIM-1CT3, SIC-1FXO, MIM-1POS, SIC-1FXS, SIC-1GEC, MIM-1SHL-4W, MIM-1VE1, SIC-1SAE, MIM-1VT1, SIC-1T1-F, SIC-1VE1,...
Page 212 SIC-WLAN-b/g/n, DMIM, DSIC, VCPM, XMIM-16FSW, ESM, XMIM-24FSW, FIC, HMIM, MIM, SIC, ATM interface module, VCPM, 139, 192 E1/T1 interface module, VPM, 139, 192 E3/T3 interface module, XMIM, Ethernet interface module, Ethernet switching module, POS (SDH/SONET) interface module, removal ESM-ANDE, serial interface module, voice interface module, ESM-SNDE, xDSL interface module,...
Page 213 Ethernet interface module, SIC-1BSV, SIC-1FXO, Ethernet switching module, ISDN BRI interface module, SIC-1FXS, serial interface module, SIC-1VE1, SIC-1VT1, voice interface module, WLAN interface module, SIC-2BSV, XDSL interface module, SIC-2FXO, synchronous interface SIC-2FXS, FIC-4SAE, SIC-2FXS1FXO, FIC-8SAE, WLAN interface module voice interface module SIC-WLAN-b/g/n, SIC-WLAN-b/g/n(NA), DSIC-4FXS1FXO,...
