# Configure a PPPoE session that corresponds to dialer bundle 1 (dialer bundle 1 corresponds
to Dialer 1).
[RouterB] interface gigabitethernet 1/0/1
[RouterB-GigabitEthernet1/0/1] pppoe-client dial-bundle-number 1
[RouterB-GigabitEthernet1/0/1] quit
# Configure a static route.
[RouterB] ip route-static 1.1.1.1 255.0.0.0 dialer 1
# Set the link-idle timeout timer to 150 seconds.
[RouterB] interface dialer 1
[RouterB-Dialer1] dialer timer idle 150
[RouterB-Dialer1] quit
Verifying the configuration
# Display summary information about the PPPoE session established between Router B and Router
A (PPPoE server).
[RouterB-Dialer1] display pppoe-client session summary
Bundle ID
1 1

PPPoE client in diagnostic mode configuration example

Network requirements
As shown in
operating in diagnostic mode, and set the diagnostic interval to 200 seconds.

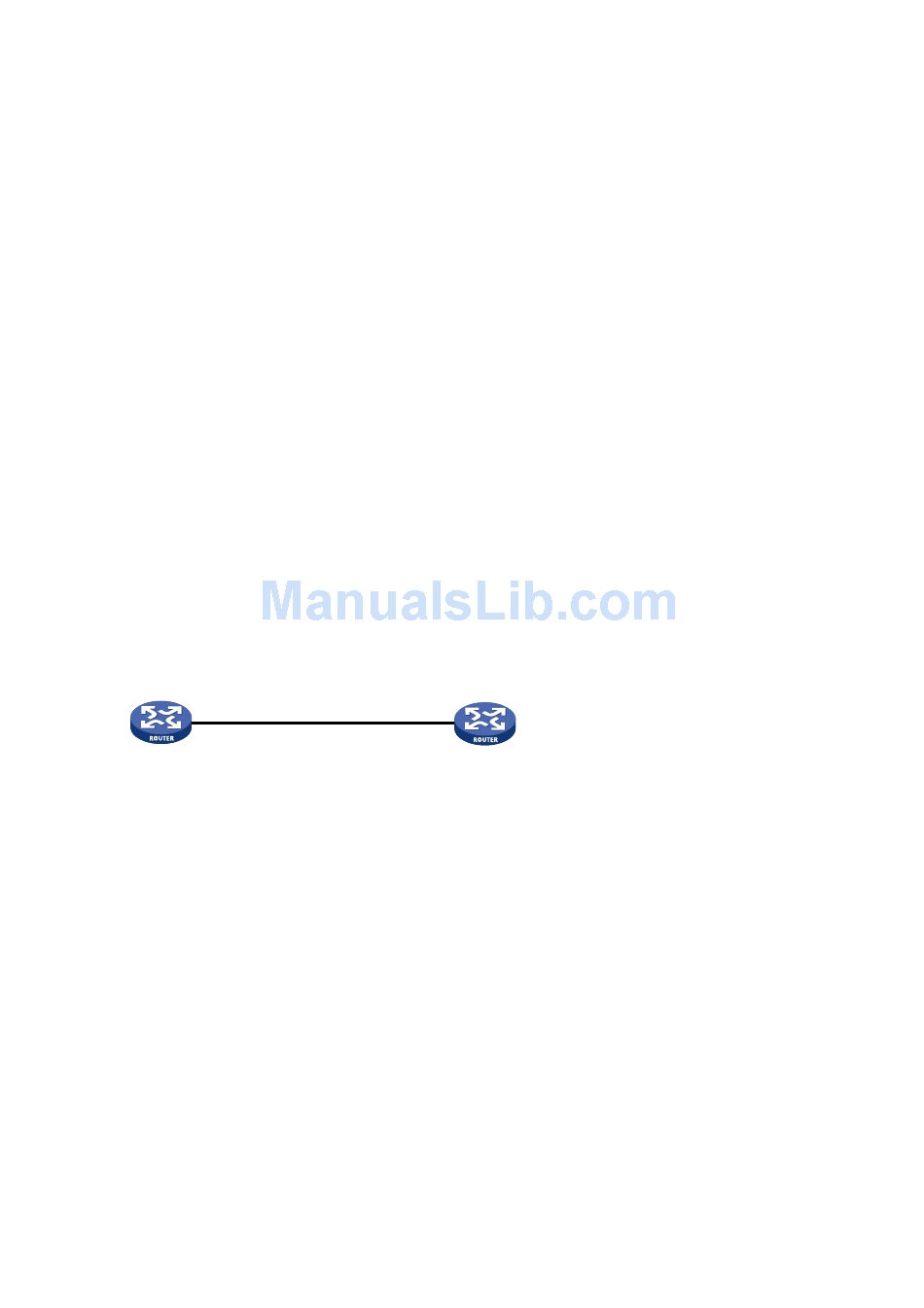

Figure 18 Network diagram
PPPoE Server
GE1/0/1
Router A
Configuration procedure
1. Configure Router A as the PPPoE server:
# Configure an IP address for Virtual-Template 1 and specify an IP address for the peer.
<RouterA> system-view
[RouterA] interface virtual-template 1
[RouterA-Virtual-Template1] ip address 1.1.1.1 255.0.0.0
[RouterA-Virtual-Template1] remote address 1.1.1.2
[RouterA-Virtual-Template1] quit
# Enable the PPPoE server on GigabitEthernet 1/0/1, and bind the interface to Virtual-Template
1.
[RouterA] interface gigabitethernet 1/0/
[RouterA-GigabitEthernet1/0/1] pppoe-server bind virtual-template 1
[RouterA-GigabitEthernet1/0/1] quit
2. Configure Router B as the PPPoE client:
# Create dialer access group 1 and configure a dial access control rule for it.
<RouterB> system-view
[RouterB] dialer-group 1 rule ip permit
# Enable bundle DDR on Dialer 1.
Interface VA
GE1/0/1 VA0
Figure 18, Router A serves as a PPPoE server. Configure Router B as a PPPoE client
RemoteMAC
00e0-1400-4300 00e0-1500-4100 SESSION
PPPoE Client
GE1/0/1
Router B
62
LocalMAC State
