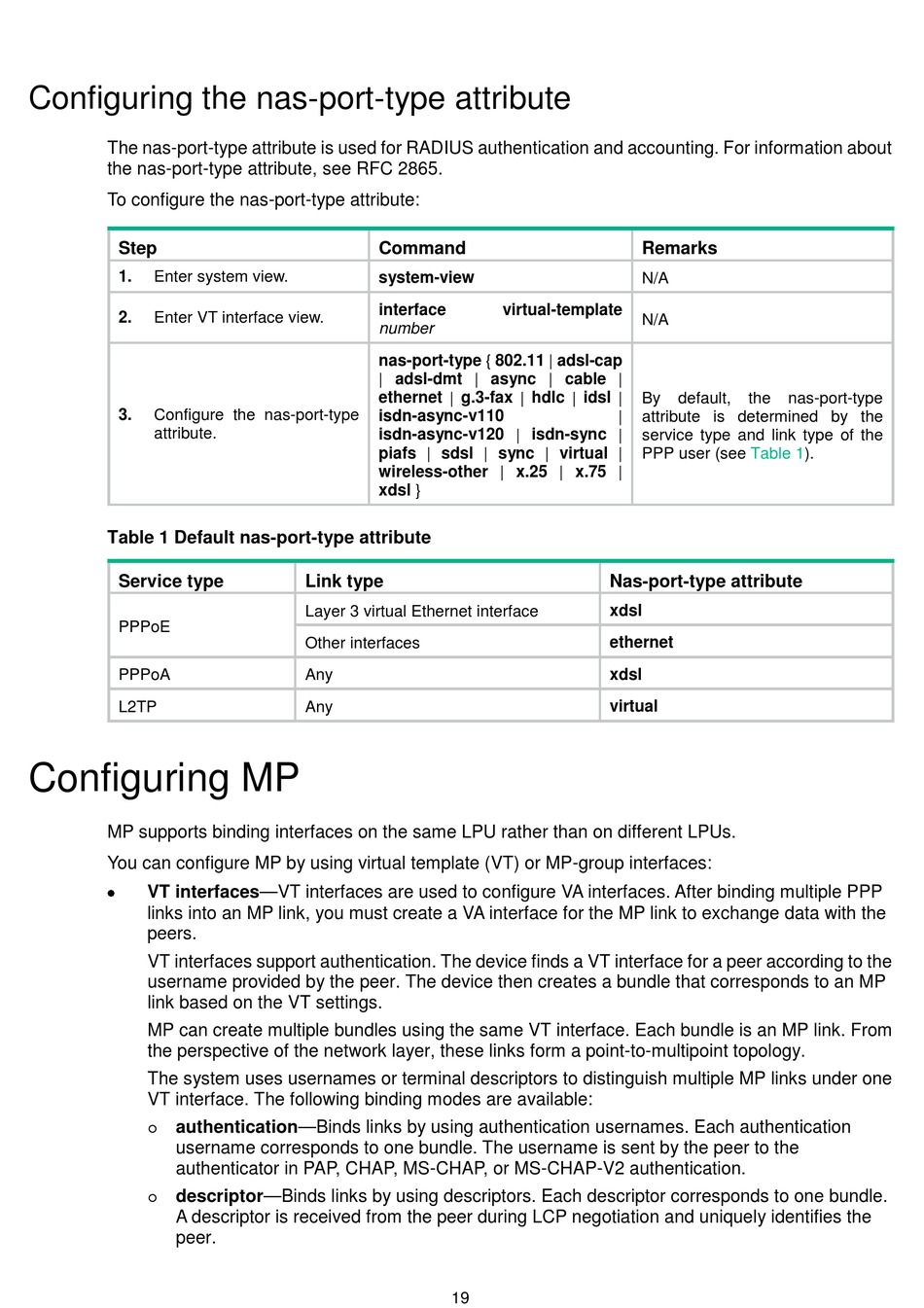

Configuring the nas-port-type attribute

The nas-port-type attribute is used for RADIUS authentication and accounting. For information about
the nas-port-type attribute, see RFC 2865.
To configure the nas-port-type attribute:
Step
1. Enter system view.
2. Enter VT interface view.
3. Configure the nas-port-type
attribute.
Table 1 Default nas-port-type attribute
Service type
PPPoE
PPPoA
L2TP

Configuring MP

MP supports binding interfaces on the same LPU rather than on different LPUs.
You can configure MP by using virtual template (VT) or MP-group interfaces:
•
VT interfaces—VT interfaces are used to configure VA interfaces. After binding multiple PPP
links into an MP link, you must create a VA interface for the MP link to exchange data with the
peers.
VT interfaces support authentication. The device finds a VT interface for a peer according to the
username provided by the peer. The device then creates a bundle that corresponds to an MP
link based on the VT settings.
MP can create multiple bundles using the same VT interface. Each bundle is an MP link. From
the perspective of the network layer, these links form a point-to-multipoint topology.
The system uses usernames or terminal descriptors to distinguish multiple MP links under one
VT interface. The following binding modes are available:
authentication—Binds links by using authentication usernames. Each authentication

username corresponds to one bundle. The username is sent by the peer to the
authenticator in PAP, CHAP, MS-CHAP, or MS-CHAP-V2 authentication.
descriptor—Binds links by using descriptors. Each descriptor corresponds to one bundle.

A descriptor is received from the peer during LCP negotiation and uniquely identifies the
peer.
Command
system-view
interface
number
nas-port-type { 802.11 | adsl-cap
| adsl-dmt | async | cable |
ethernet | g.3-fax | hdlc | idsl |
isdn-async-v110
isdn-async-v120 | isdn-sync |
piafs | sdsl | sync | virtual |
wireless-other | x.25 | x.75 |
xdsl }
Link type
Layer 3 virtual Ethernet interface
Other interfaces
Any
Any
19
Remarks
N/A
virtual-template
N/A
By
| attribute is determined by the
service type and link type of the
PPP user (see
Nas-port-type attribute
xdsl
ethernet
xdsl
virtual
default, the nas-port-type
Table 1).
