Setting the country code of a modem

CAUTION:
This task disconnects the modem connection.
Modem encoding format differs with countries. You must configure the correct country code for a
modem to function correctly. This task is available only on AM interfaces.
To set the country code of a modem:
Step
1. Enter system view.
2. Enter AM interface
view.
3. Set the country code.

Modem management configuration example

Network requirements

As shown in
establish a modem dial-up connection between the Serial 2/1/0 interfaces for data transmission.
For more information about DDR, see "Configuring DDR."

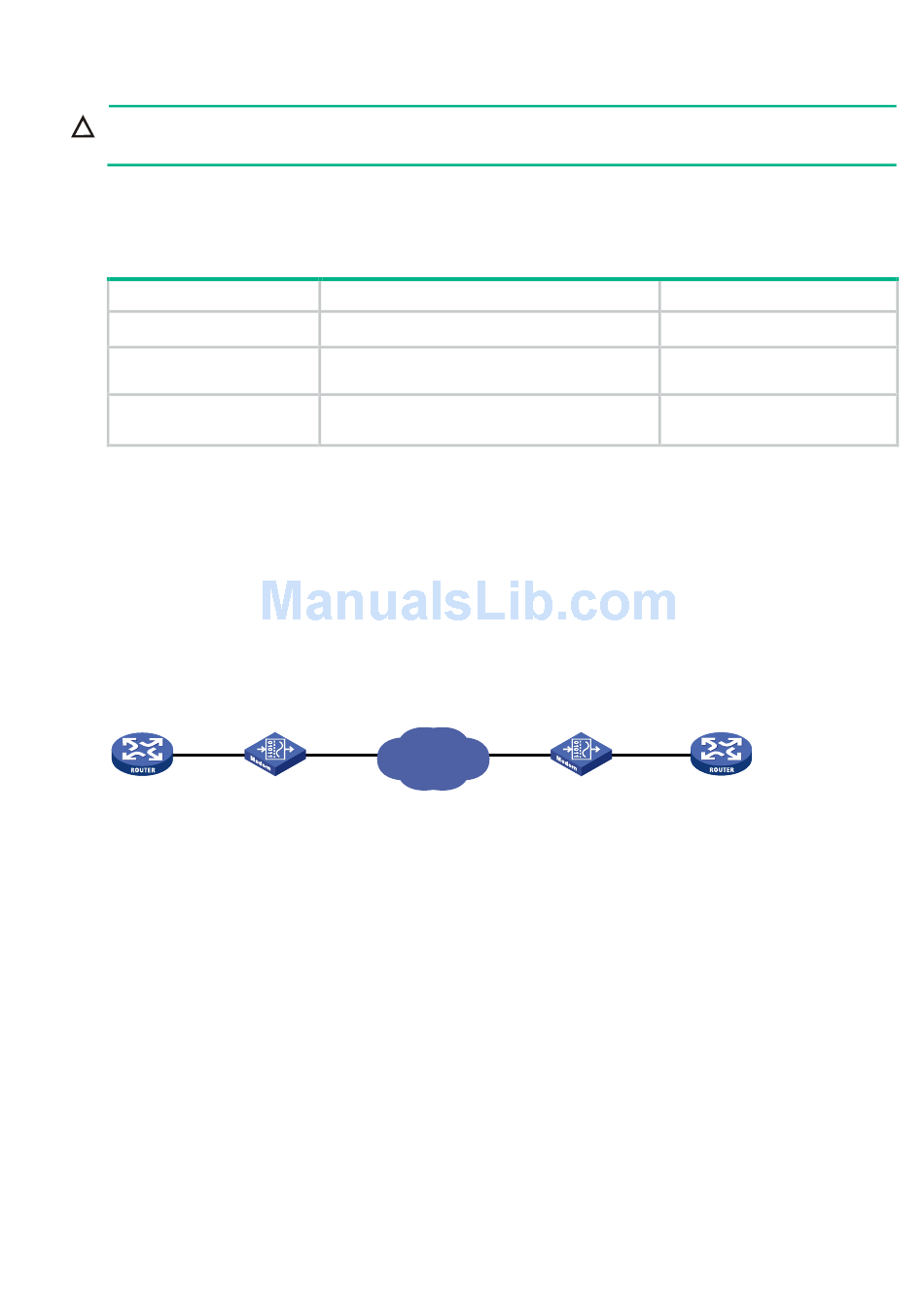

Figure 49 Network diagram
Ser2/1/0
1.1.1.1/16
Router A

Configuration procedure

1. Configure Router A:
# Create dialer access group 1 and add a dial access rule to match call triggering traffic. The
rule in this example permits any IP packets to trigger a call.
<RouterA> system-view
[RouterA] dialer-group 1 rule ip permit
# Configure the asynchronous/synchronous serial interface Serial 2/1/0 to operate in
asynchronous mode and protocol mode.
[RouterA] interface serial 2/1/0
[RouterA-Serial2/1/0] physical-mode async
[RouterA-Serial2/1/0] async-mode protocol
# Assign the IP address 1.1.1.1/16 to Serial 2/1/0.
[RouterA-Serial2/1/0] ip address 1.1.1.1 255.255.0.0
# Enable traditional DDR on Serial 2/1/0.
[RouterA-Serial2/1/0] dialer circular enable
Command
system-view
interface analogmodem interface-number
country-code area-name
Figure 49, configure DDR and modem access services for Router A and Router B to
Modem
PSTN
Modem
151
Remarks
N/A
N/A
The default country code is
united-states.
Ser2/1/0
2.2.2.2/16
Router B
