# Configure the dial string for calling Router A.
[RouterC-Dialer0] dialer number 8810048
# Configure PAP authentication on the interface.
[RouterC-Dialer0] ppp authentication-mode pap
[RouterC-Dialer0] ppp pap local-user userc password simple userc
[RouterC-Dialer0] quit
# Assign the interface to dialer bundle 0.
[RouterC] interface bri 2/4/0
[RouterC-Bri2/4/0] dialer bundle-member 0
# Enable PPP encapsulation on the interface.
[RouterC-Bri2/4/0] link-protocol ppp
# Configure PAP authentication on the interface.
[RouterC-Bri2/4/0] ppp authentication-mode pap
[RouterC-Bri2/4/0] ppp pap local-user userc password simple userc
Verifying the configuration
# Verify that Router A can successfully ping Router B and Router C. (Details not shown.)
# Verify that Router B and Router C cannot ping each other. (Details not shown.)

MP for DDR configuration example

Network requirements
As shown in
are connected across ISDN.
Configure Router A to call Router B by using bundle DDR, and configure Router B to call Router A by
using traditional DDR. In addition, implement traffic distribution for the two interfaces on Router A by
setting traffic thresholds.

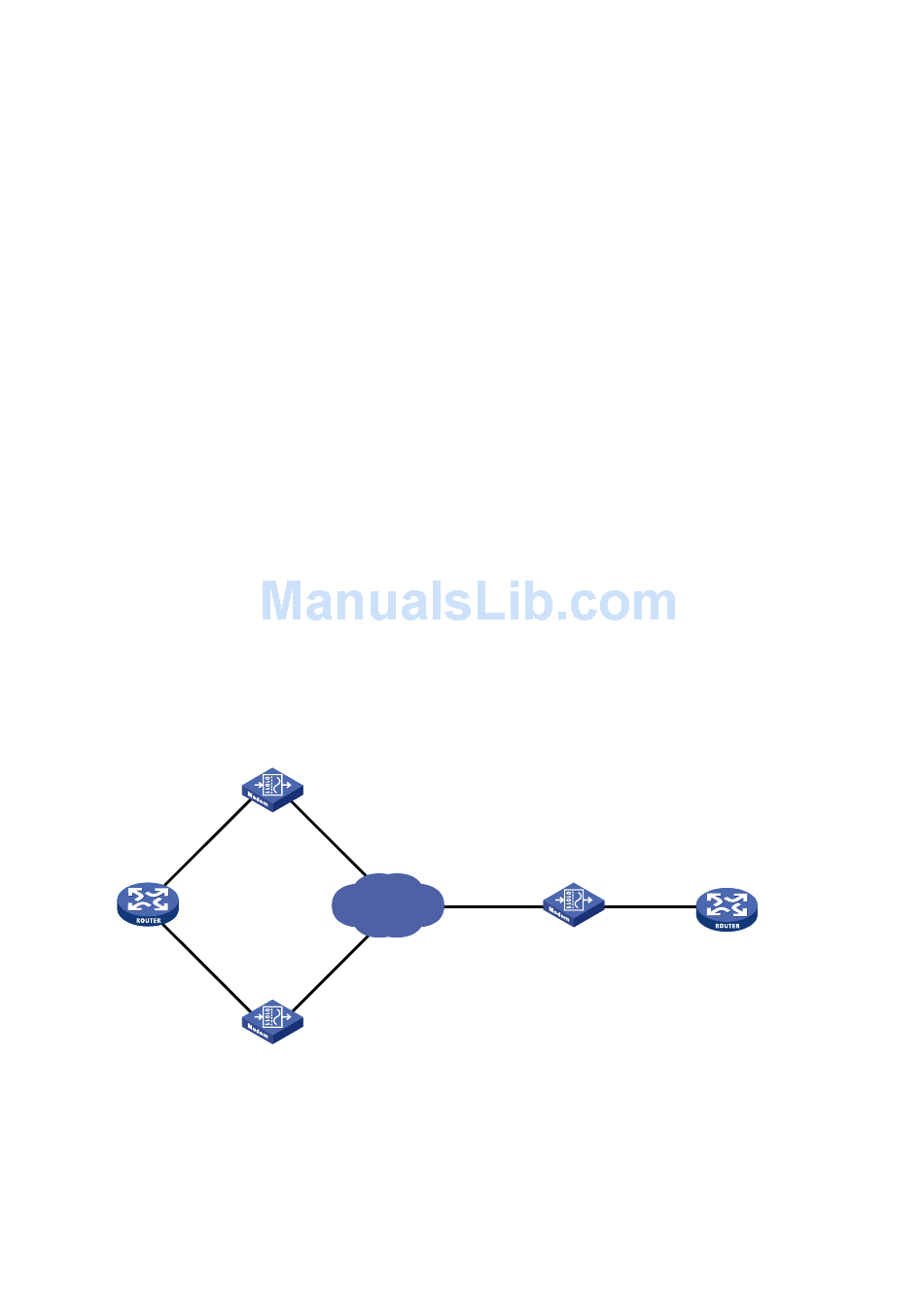

Figure 59 Network diagram
Dialer 0
100.1.1.1/24
Router A
Bri2/4/1
Bri2/4/0
Configuration procedure
1. Configure Router A:
# Create dialer group 1 and configure a dial rule for it.
<RouterA> system-view
[RouterA] dialer-group 1 rule ip permit
# Create a local user userb for authenticating Router B, and configure the service type as PPP.
[RouterA] local-user userb class network
Figure 59, two ISDN BRI interfaces on Router A and an ISDN PRI interface on Router B
NT 1
8810048
ISDN
8810049
NT 1
NT 1
100.1.1.2/24
8810052
196
Dialer 0
Router B
E1 2/3/0
