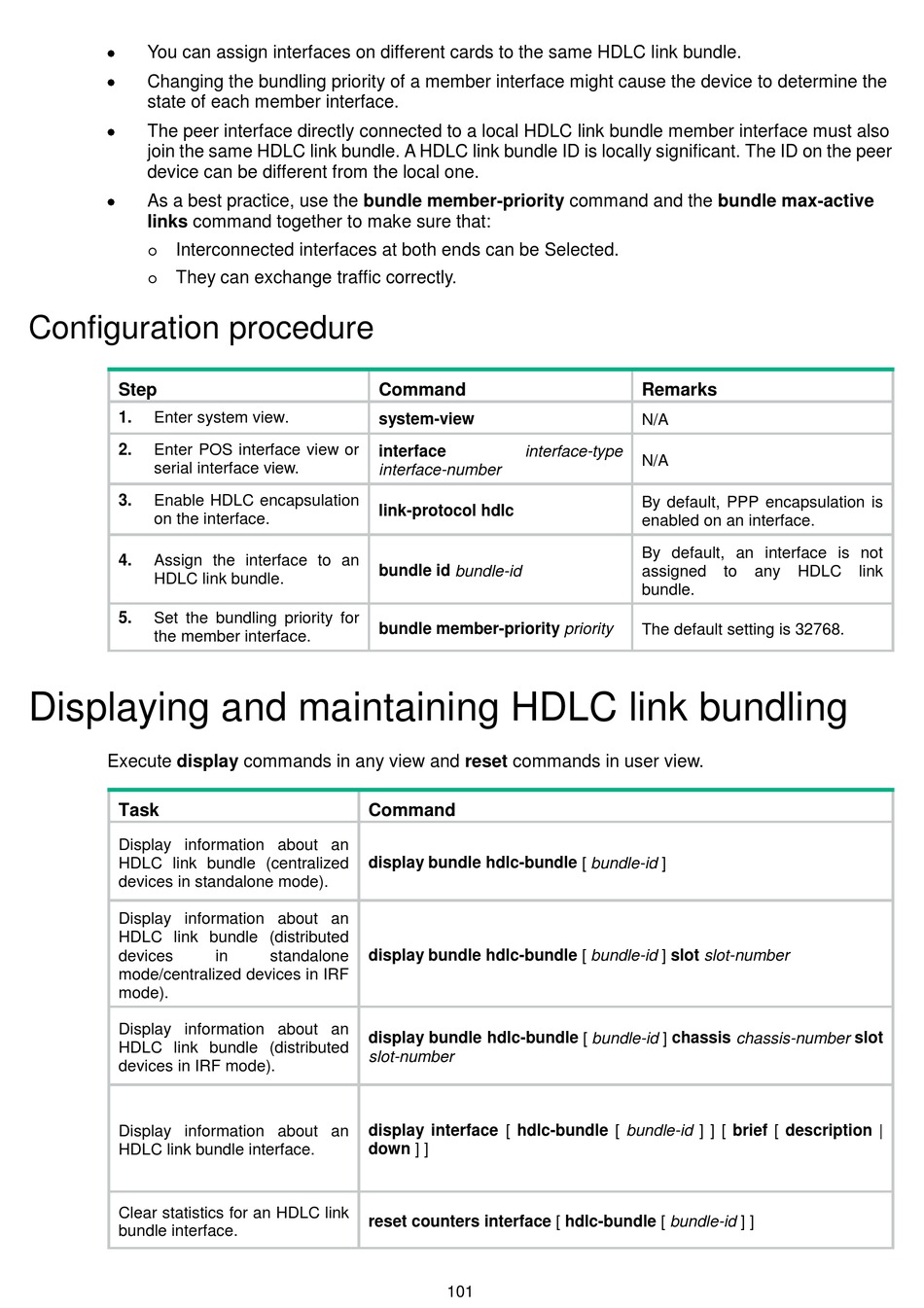

Configuration Procedure; Displaying And Maintaining Hdlc Link Bundling - HPE FlexNetwork MSR series Configuration Manual

•
You can assign interfaces on different cards to the same HDLC link bundle.
•
Changing the bundling priority of a member interface might cause the device to determine the
state of each member interface.
•
The peer interface directly connected to a local HDLC link bundle member interface must also
join the same HDLC link bundle. A HDLC link bundle ID is locally significant. The ID on the peer
device can be different from the local one.
•
As a best practice, use the bundle member-priority command and the bundle max-active
links command together to make sure that:
Interconnected interfaces at both ends can be Selected.

They can exchange traffic correctly.


Configuration procedure

Step
1. Enter system view.
2. Enter POS interface view or
serial interface view.
3. Enable HDLC encapsulation
on the interface.
4. Assign the interface to an
HDLC link bundle.
5. Set the bundling priority for
the member interface.

Displaying and maintaining HDLC link bundling

Execute display commands in any view and reset commands in user view.
Task
Display information about an
HDLC link bundle (centralized
devices in standalone mode).
Display information about an
HDLC link bundle (distributed
devices
mode/centralized devices in IRF
mode).
Display information about an
HDLC link bundle (distributed
devices in IRF mode).
Display information about an
HDLC link bundle interface.
Clear statistics for an HDLC link
bundle interface.
Command
system-view
interface
interface-number
link-protocol hdlc
bundle id bundle-id
bundle member-priority priority
Command
display bundle hdlc-bundle [ bundle-id ]
display bundle hdlc-bundle [ bundle-id ] slot slot-number
in standalone
display bundle hdlc-bundle [ bundle-id ] chassis chassis-number slot
slot-number
display interface [ hdlc-bundle [ bundle-id ] ] [ brief [ description |
down ] ]
reset counters interface [ hdlc-bundle [ bundle-id ] ]
interface-type
101
Remarks
N/A
N/A
By default, PPP encapsulation is
enabled on an interface.
By default, an interface is not
assigned to any HDLC
bundle.
The default setting is 32768.
link
