<RouterA> system-view
[RouterA] interface virtual-template 0
[RouterA-Virtual-Template0] ip address ppp-negotiate
[RouterA-Virtual-Template0] quit
# Create a PVC, and enable it to carry PPP.
[RouterA] interface atm 2/4/0
[RouterA-ATM2/4/0] pvc pppoa 0/60
[RouterA-ATM2/4/0-pvc-pppoa-0/60] map ppp virtual-template 0
[RouterA-ATM2/4/0-pvc-pppoa-0/60] quit
[RouterA-ATM2/4/0] quit
3. Configure ADSL Router B in the same way ADSL Router A is configured.
Verifying the configuration
Both ADSL Router A and ADSL Router B can ping Router C successfully.

PPPoEoA configuration example

Network requirements
As shown in
ADSL Router A and ADSL Router B. They communicate with Router C through DSLAM.
The IP addresses of the VT interfaces of Router C are 202.38.160.1 and 202.38.161.1.
The VPI/VCI values of two PVCs connecting Router C and DSLAM are 0/60 and 0/61, pointing to
ADSL Router A and ADSL Router B, respectively.
Both the WAN port of Router C and the DSL interfaces of the ADSL routers use PPPoEoA. PPP
authentication is not performed. The IP addresses of the two ADSL routers are assigned by Router
C.

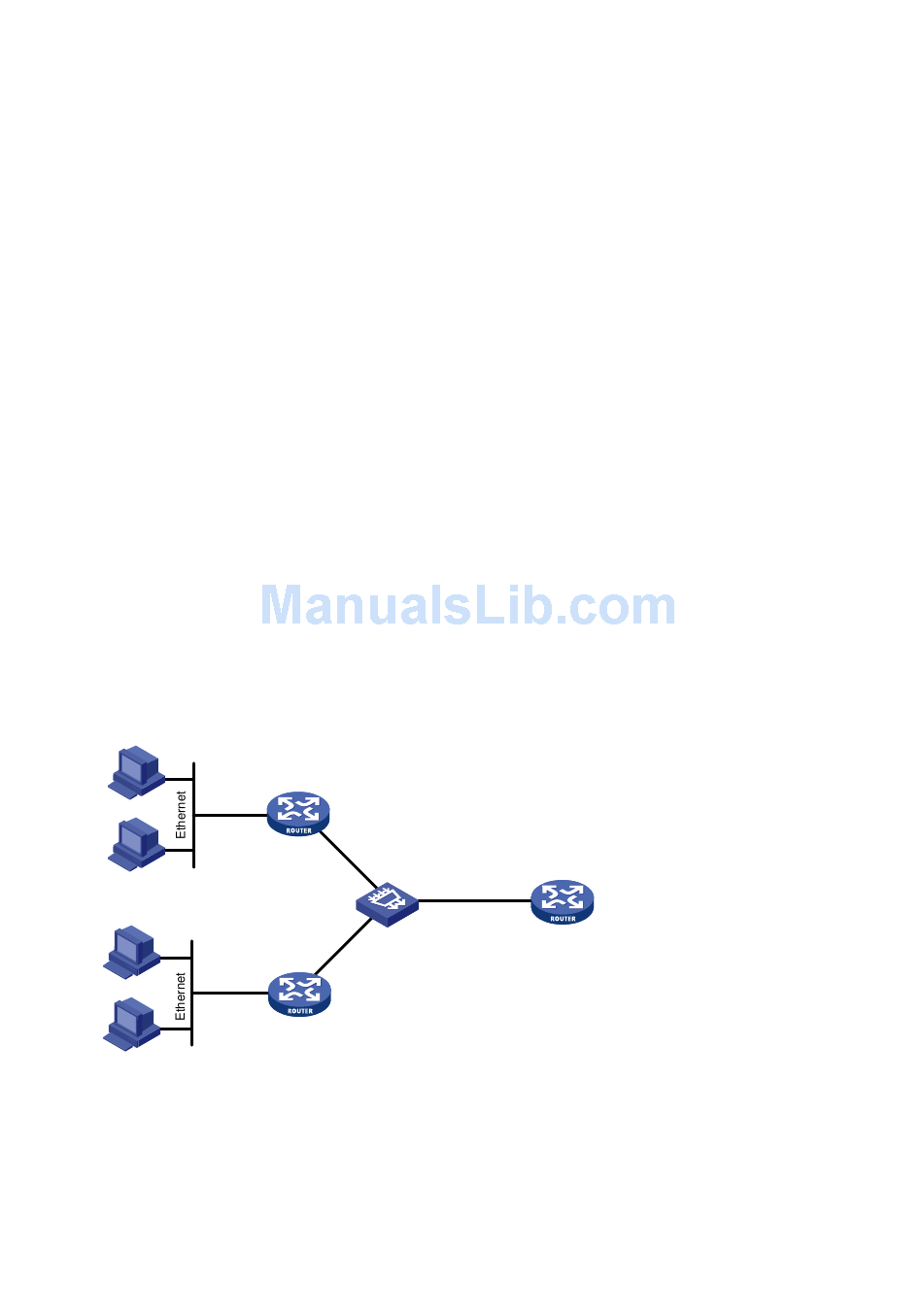

Figure 47 Network diagram
Host A
Host B
Host C
Host D
Configuration procedure
1. Configure Router C (PPPoEoA server):
# Create VT interfaces and configure IP addresses for them. Assign IP addresses to the remote
ends.
<RouterC> system-view
[RouterC] interface virtual-template 10
Figure 47, the hosts in the two Ethernets are connected to the ATM network through
ADSL Router A
DSLAM
ADSL Router B
ATM2/4/0.1
VPI/VCI:
To Router A:0/60
To Router B:0/61
Router C
VT10
202.38.160.1/24
VT11
202.38.161.1/24
