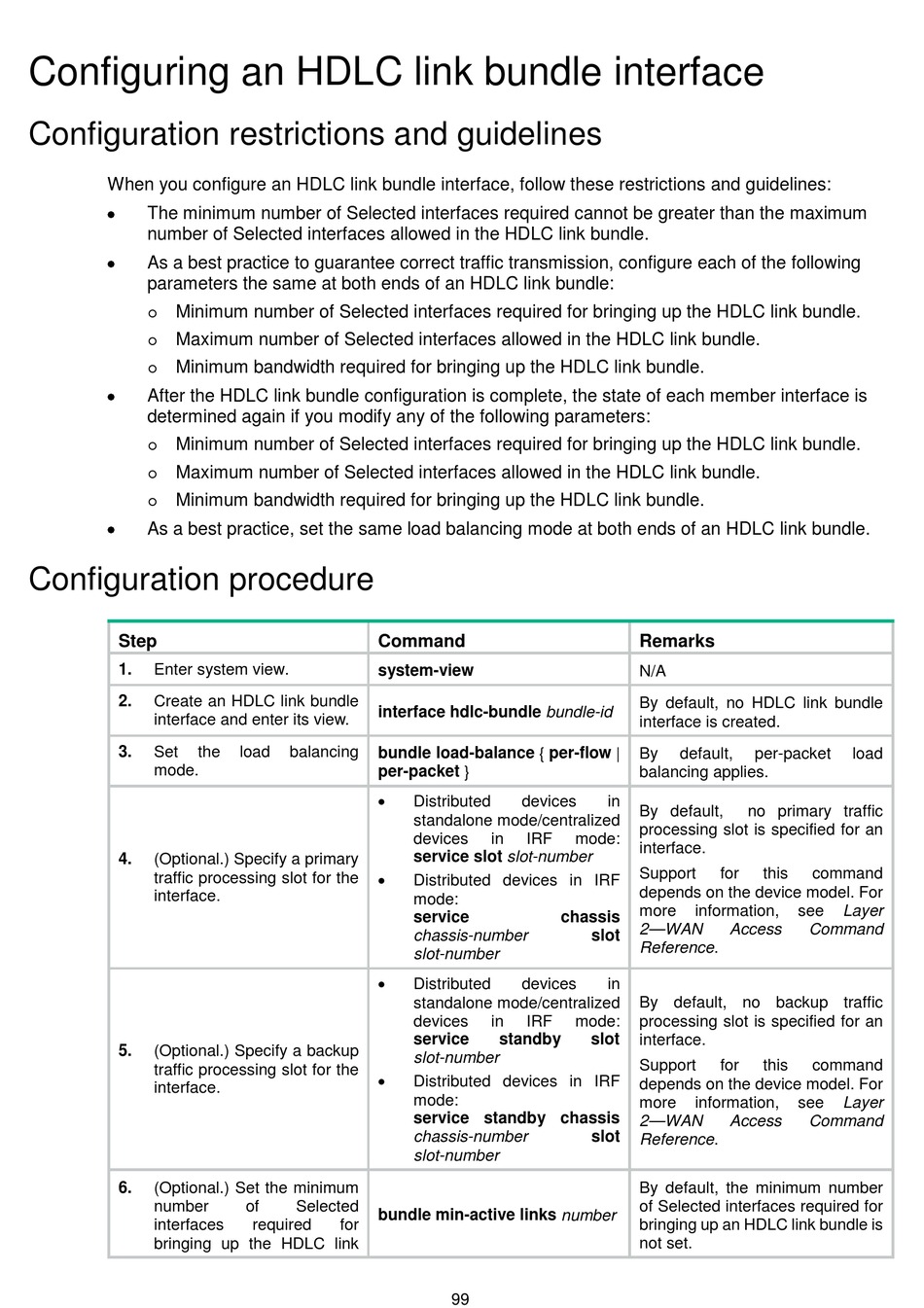

Configuring an HDLC link bundle interface

Configuration restrictions and guidelines

When you configure an HDLC link bundle interface, follow these restrictions and guidelines:
•
The minimum number of Selected interfaces required cannot be greater than the maximum
number of Selected interfaces allowed in the HDLC link bundle.
•
As a best practice to guarantee correct traffic transmission, configure each of the following
parameters the same at both ends of an HDLC link bundle:
Minimum number of Selected interfaces required for bringing up the HDLC link bundle.

Maximum number of Selected interfaces allowed in the HDLC link bundle.

Minimum bandwidth required for bringing up the HDLC link bundle.

•
After the HDLC link bundle configuration is complete, the state of each member interface is
determined again if you modify any of the following parameters:
Minimum number of Selected interfaces required for bringing up the HDLC link bundle.

Maximum number of Selected interfaces allowed in the HDLC link bundle.

Minimum bandwidth required for bringing up the HDLC link bundle.

•
As a best practice, set the same load balancing mode at both ends of an HDLC link bundle.

Configuration procedure

Step
1. Enter system view.
2. Create an HDLC link bundle
interface and enter its view.
3. Set the
mode.
4. (Optional.) Specify a primary
traffic processing slot for the
interface.
5. (Optional.) Specify a backup
traffic processing slot for the
interface.
6. (Optional.) Set the minimum
number
interfaces
bringing up the HDLC link
Command
system-view
interface hdlc-bundle bundle-id
load balancing
bundle load-balance { per-flow |
per-packet }
•
•
•
•
of Selected
bundle min-active links number
required for
Distributed devices
standalone mode/centralized
devices in IRF mode:
service slot slot-number
Distributed devices in IRF
mode:
service chassis
chassis-number
slot-number
Distributed devices
standalone mode/centralized
devices in IRF mode:
service standby
slot-number
Distributed devices in IRF
mode:
service standby chassis
chassis-number
slot-number
99
Remarks
N/A
By default, no HDLC link bundle
interface is created.
By default, per-packet
balancing applies.
in
By default, no primary traffic
processing slot is specified for an
interface.
Support for this
depends on the device model. For
more information,
2—WAN Access
slot
Reference.
in
By default, no backup traffic
processing slot is specified for an
slot interface.
Support for this
depends on the device model. For
more information,
2—WAN Access
slot
Reference.
By default, the minimum number
of Selected interfaces required for
bringing up an HDLC link bundle is
not set.
load
command
see Layer
Command
command
see Layer
Command
