I/O Modules

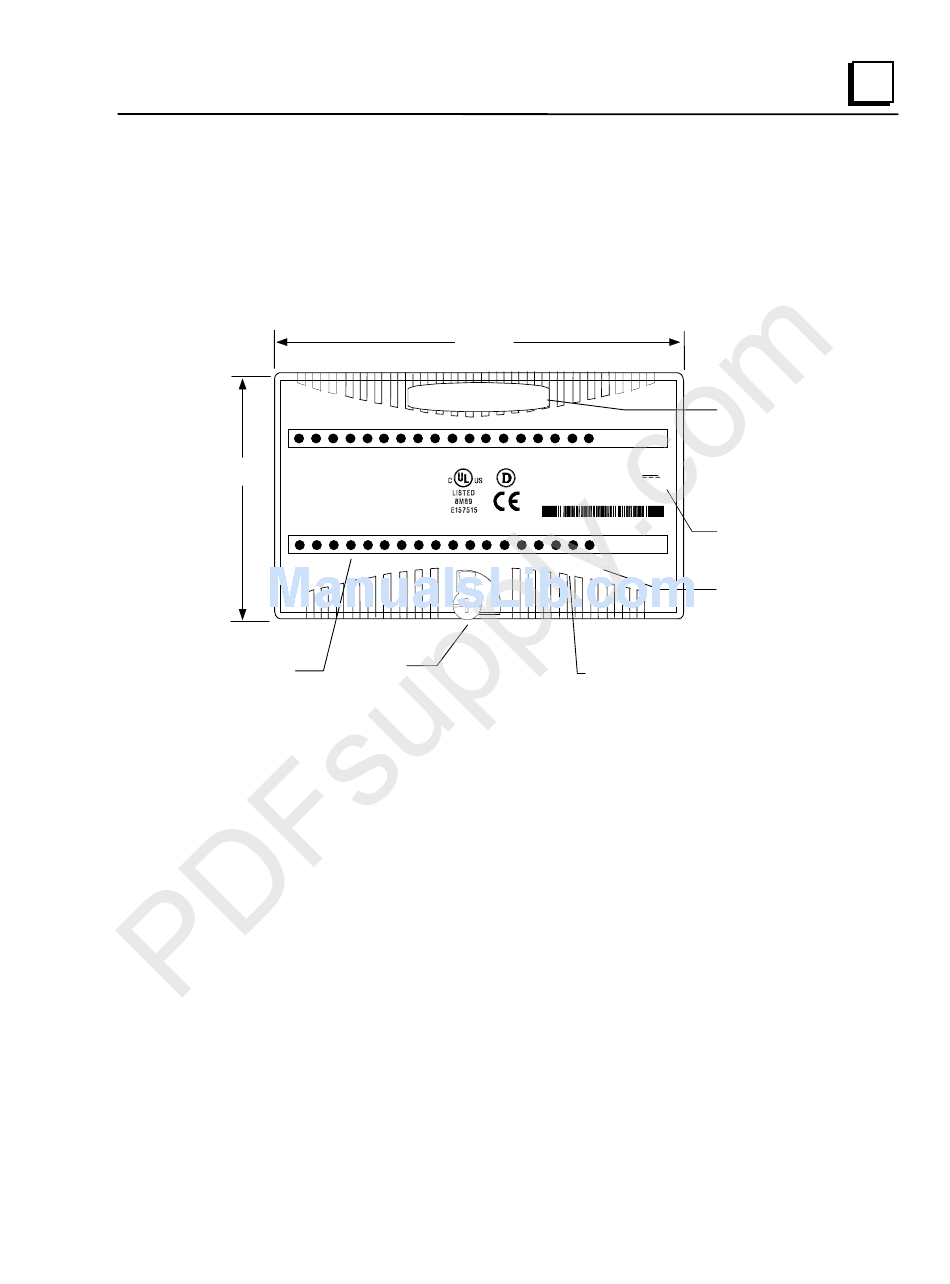

VersaMax IO and option modules are approximately 110mm (4.3in) by 66.8mm (2.63in)
in size. Modules can be mounted either horizontally or vertically on several types of
available I/O Carriers. Modules are 50mm (1.956 in) in depth, not including the height of
the carrier or the mating connectors.
66.8mm
(2.63in)
Individual Point LEDS
on Discrete Modules
VersaMax I/O modules are described in this manual. They are grouped into chapters by
module type. For more information about a specific module, please refer to the Table of
Contents or Index to locate the module description.
GFK-1504K Chapter 1 Introduction
110mm
(4.33in)
Q
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
IND CONT EQ FOR HAZ LOC
CLASS I DIV 2 GROUPS ABCD
Temp Code T4A Ambient 60C
CLASS I ZONE 2 GROUP IIC
Ex nA IIC T4 OC ≤ To ≤ 60C
Ex nV T4 Demko No. 98Y. 125014
17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32
Q
Latch
FLD
PWR OK
IC200MDL750
OUTPUT 12/24VDC
POS GRP .5A 32PT
1234567 831
FLD OK
PWR
Field Power LED
indicates presence of
power from external
supply
1
Color code:
Red: AC
Blue: DC
Gold: Mixed
Gray: Analog/other
Module
Description
OK LED indicates
presence of power from
VersaMax power supply
1-9
