Installing an Expansion Receiver Module

An Expansion Receiver Module (IC200ERM001 or 002) must be installed in the leftmost
slot of each VersaMax expansion "rack".
1. Insert the label inside the small access door at the upper left corner of the module.
2. Attach the module to the DIN rail at the left end of the expansion rack.
3. Select the expansion rack ID (1 to 7) using the rotary switch under the access door at
upper left corner of the module. Each rack must be set to a different rack ID. With a
single-ended cable (one expansion rack only), set the Rack ID to 1.
4. Install a VersaMax Power Supply module on top of the Expansion Receiver. See
"Installing a Power Supply" in this chapter for details.
5. Attach the cables. If the system includes an Expansion Transmitter Module, attach the
terminator plug to the EXP2 port on the last Expansion Receiver Module.
6. After completing any additional system installation steps, apply power and observe
the module LEDs.

Removing an Expansion Receiver Module

1. Make sure rack power is off.
2. Un-install the Power Supply module from the Expansion Receiver Module.
3. Slide the Expansion Receiver Module on DIN rail away from the other modules.
4. Using a small screwdriver, pull down on the tab on the bottom of the module and lift
the module off the DIN rail.
2-6 VersaMax® Modules, Power Supplies, and Carriers User's Manual – March 2003
7

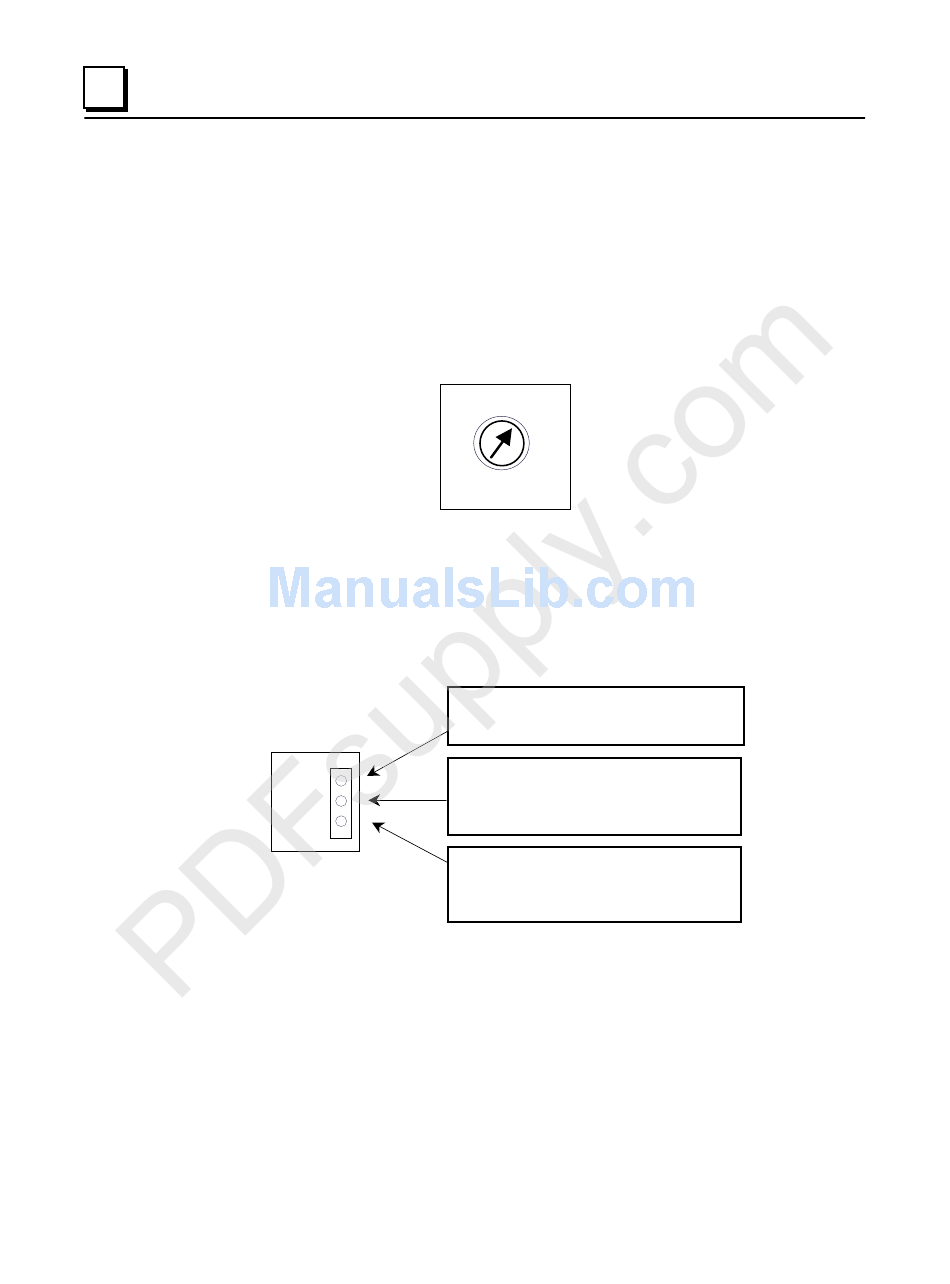

On indicates presence of 5VDC power.
Off indicates no 5VDC power.
Green indicates CPU/NIU is scanning
PWR
I/O in expansion racks.
SCAN
Amber indicates not scanning.
EXP RX
Blinking or On indicates module is
communicating on expansion bus
Off indicates module not communicating
0
1
2
3
4
6
5
GFK-1504K
