GE VersaMax Manual page 199

8
IC200MDL329
Output Module, 120VAC 0.5 Amp, Isolated 8 Points
Field Wiring
If additional bussed terminals are needed, the B terminals can be made available by
using a shorting bar. The shorting bar has a maximum current-carrying capacity of
2A per point. See chapter 2 for additional information about using the shorting bar.
When wiring outputs to inductive loads, use of external suppression circuits is
recommended. See chapter 2, "Installing Wiring for I/O Devices-Wiring to Inductive
Loads" for more information.

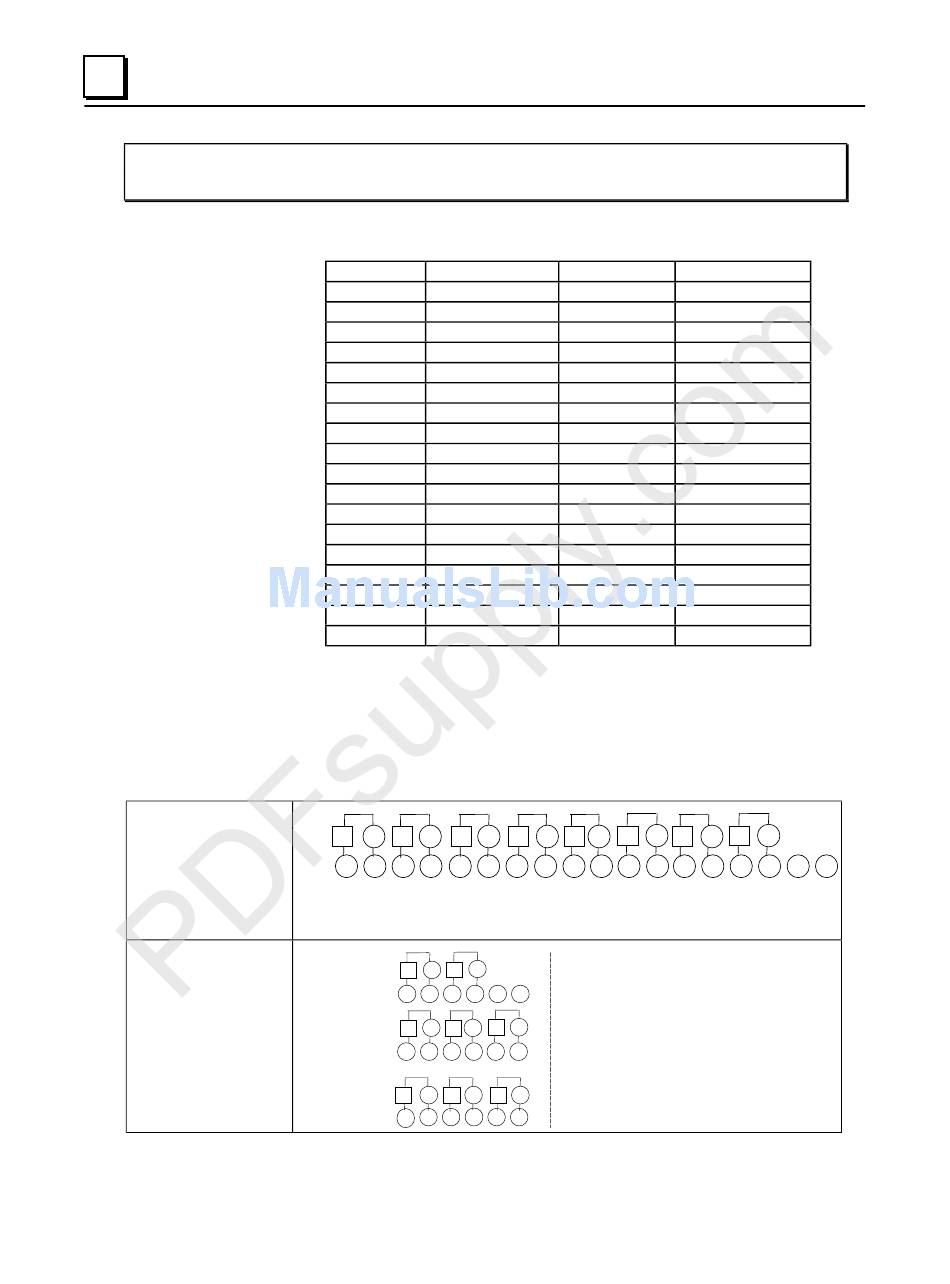

Wiring Connections
for Carriers with Two
Rows of Terminals
IC200CHS002, 005
IC200CHS012, 015
Wiring Connections
for Carriers with Three
Rows of Terminals
IC200CHS001, 022, 025
IC200CHS011
8-4 VersaMax® Modules, Power Supplies, and Carriers User's Manual – March 2003
Terminal Connection
A1 Output 1
A2 Output 1 Ret
A3 Output 2
A4 Output 2 Ret
A5 Output 3
A6 Output 3 Ret
A7 Output 4
A8 Output 4 Ret
A9 Output 5
A10 Output 5 Ret
A11 Output 6
A12 Output 6 Ret
A13 Output 7
A14 Output 7 Ret
A15 Output 8
A16 Output 8 Ret
A17 No connection
A18 No connection
_ _
_
~ ~ ~
Q1 Q2 Q3
+ +
+
A
1 2 3 4 5
~
~
Q8
Q7
13
14 15 16
~ ~
Q4 Q5
7 8 9 10
~ ~
Q1 Q2
A 1 2 3 4
Terminal
B1
B2
B3
B4
B5
B6
B7
B8
B9
B10
B11
B12
B13
B14
B15
B16
B17
B18
_ _ _
~
~ ~
Q6
Q4 Q5
+ + +
6 7 8 9 10 11 12
17 18
~
Q6
11 12
~
Q3
5 6
Connection
No connection
No connection
No connection
No connection
No connection
No connection
No connection
No connection
No connection
No connection
No connection
No connection
No connection
No connection
No connection
No connection
No connection
No connection
_ _
~
~
Q8
Q7
+ +
13 14 15 16 17 18
GFK-1504K
