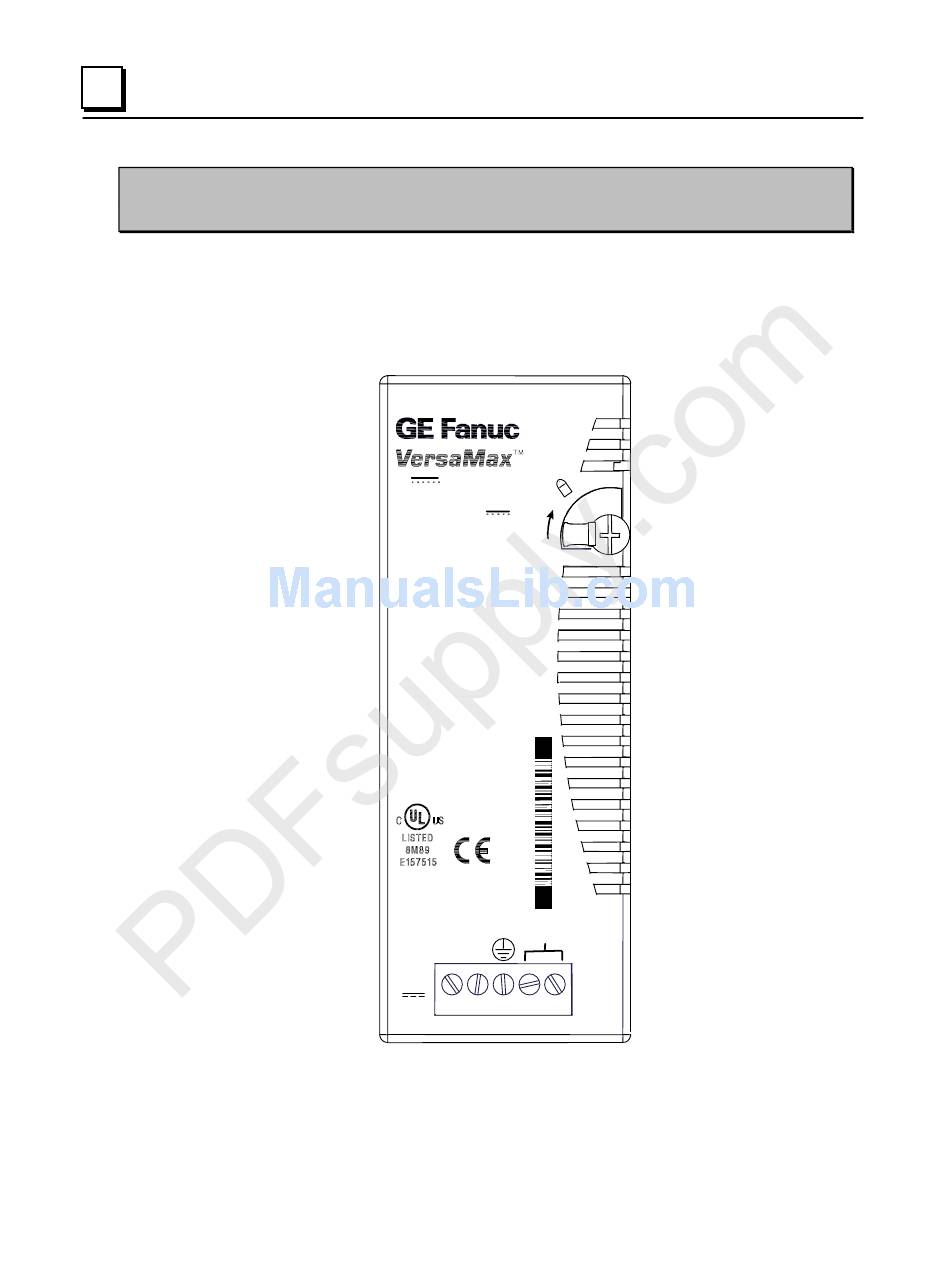

IC200PWR202
12VDC Expanded 3.3 V Power Supply
12VDC Expanded 3.3V Power Supply IC200PWR202 provides backplane power for
CPU, NIU, and I/O modules. It supplies up to 1.5 Amps output current via 3.3 volt and 5
volt outputs, with up to 1.0 Amp on the 3.3 Volt output. Module backplane current
consumption is summarized in appendix C.
When mounted on the CPU or NIU module, it serves as the main power supply for the
station. It can also be used as a supplemental power supply when mounted on a Power
Supply Booster Carrier. Refer to the Power Supply Booster Carrier section of chapter 4 for
more information.
3-12 VersaMax® Modules, Power Supplies, and Carriers User's Manual – March 2003
