Input Module, 240Vac 8 Points - GE VersaMax Manual

Discrete Input Module IC200MDL141 provides one group of 8 discrete inputs.
Inputs are positive logic or sourcing-type inputs; they receive current from AC input
devices and return the current on the common. Input devices are connected between
the input terminals and common terminals.
Power for module operation comes from the backplane.
Intelligent processing for the module is performed by the CPU or NIU. The module
provides 8 bits of discrete input data.
LED Indicators
Individual green LEDs indicate the on/off state of each input point.
The green OK LED is on when backplane power is present to the module.
GFK-1504K Chapter 7 Discrete Input Modules

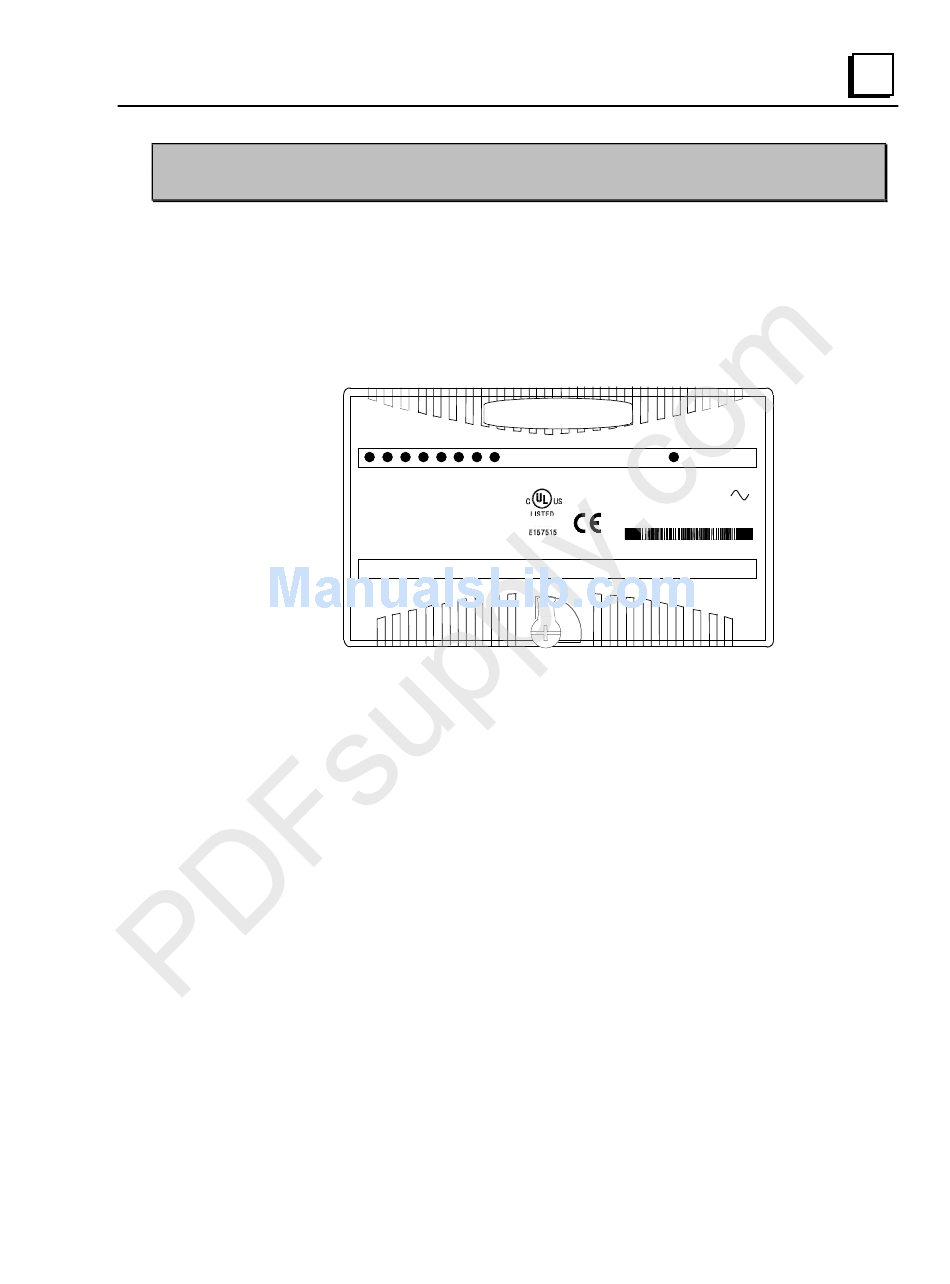

I
1 2 3 4 5 6 7 8
IND CONT EQ FOR HAZ LOC
CLASS I DIV 2 GROUPS ABCD
Temp Code T4A Ambient 60C
6M89
CLASS I ZONE 2 GROUP IIC TA4
CLASS I ZONE 2 Ex nA IIC T4 OC ≤ Ta ≤ 60C
Ex nV T4 Demko No
IC200MDL141

Input Module, 240VAC 8 Points

OK
IC200MDL141
INPUT 240VAC
GRP 8PT
1234567 831
7
7-5
