12
IC200ALG431
Analog Mixed Module, 12 Bit 0 to 10VDC Input 4 Channels and Output 2 Channels
Jumper Selection
A jumper on the carrier can be used to select the output default mode. If no jumper is
installed on pins B13 and B14 outputs hold their last state (the last commanded value from
the backplane) if backplane power or communications are interrupted or the PLC is
stopped. With a jumper installed, if such conditions occur outputs default to 0 volts. This
should only be changed with field power and backplane power removed.

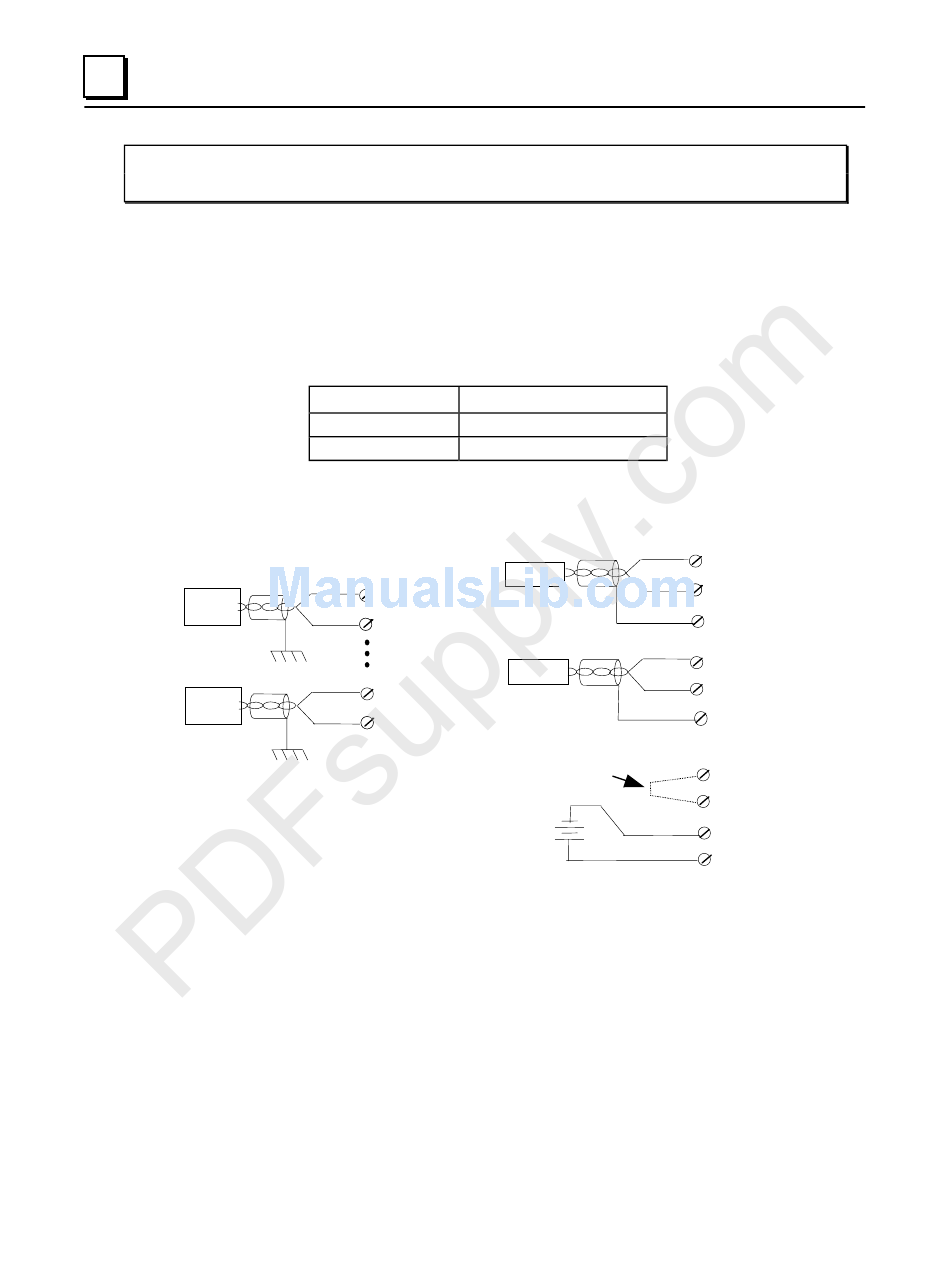

Wiring Examples
Voltage Inputs
Voltage
Source
Voltage
Source
An external source is needed to
power input transceivers.
12-12 VersaMax® Modules, Power Supplies, and Carriers User's Manual – March 2003
Jumper Selects
None Hold Last State
JMP 1 Default to 0
V In 1
V In RET 1
V In 4
V In RET 4
Jumper present
selects default to 0
24VDC
Voltage Outputs
Load
Load
-
+
V Out 1
V Out RET 1
Shield
V Out 2
V Out RET 2
Shield
JMP 1A
JMP 1B
Field Return
Field Power
