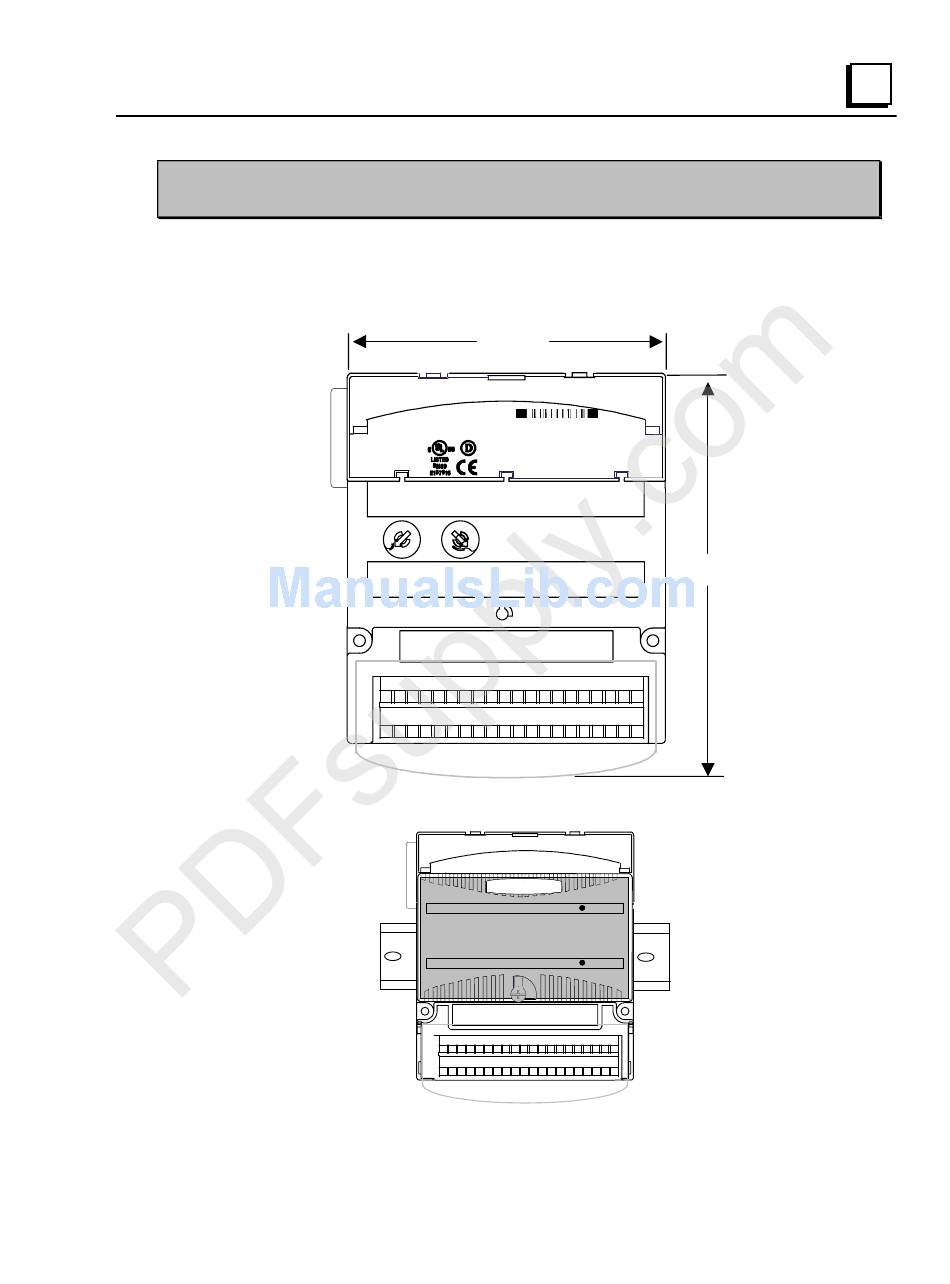

Spring-Style I/O Carrier - GE VersaMax Manual

The Spring-Style I/O Carrier (IC200CHS005) has 36 spring-clamp style terminals for field
wiring. It provides mounting, backplane communications, and field wiring for one I/O
module.
The I/O module mounts lengthwise (parallel to the DIN rail) on this carrier.
GFK-1504K Chapter 4 Carriers
110.5mm
(4.35in)
IC200CHS005
I/O CARRIER
IND CONT EQ FOR HAZ LOC
SPRING STYLE CLASS I DIV 2 GROUPS ABCD
Ambient 60C
CLASS 1 ZONE 2 GROUP IIC
Ex nA IIC 0C <To<60C
Ex nV II Demko No. 98Y.125014
H B 8 2
C 7
G 3
D
F 6 4
A
B
A
B
IC200CHS005

Spring-Style I/O Carrier

139.7mm
(5.5in)
4-11
4
