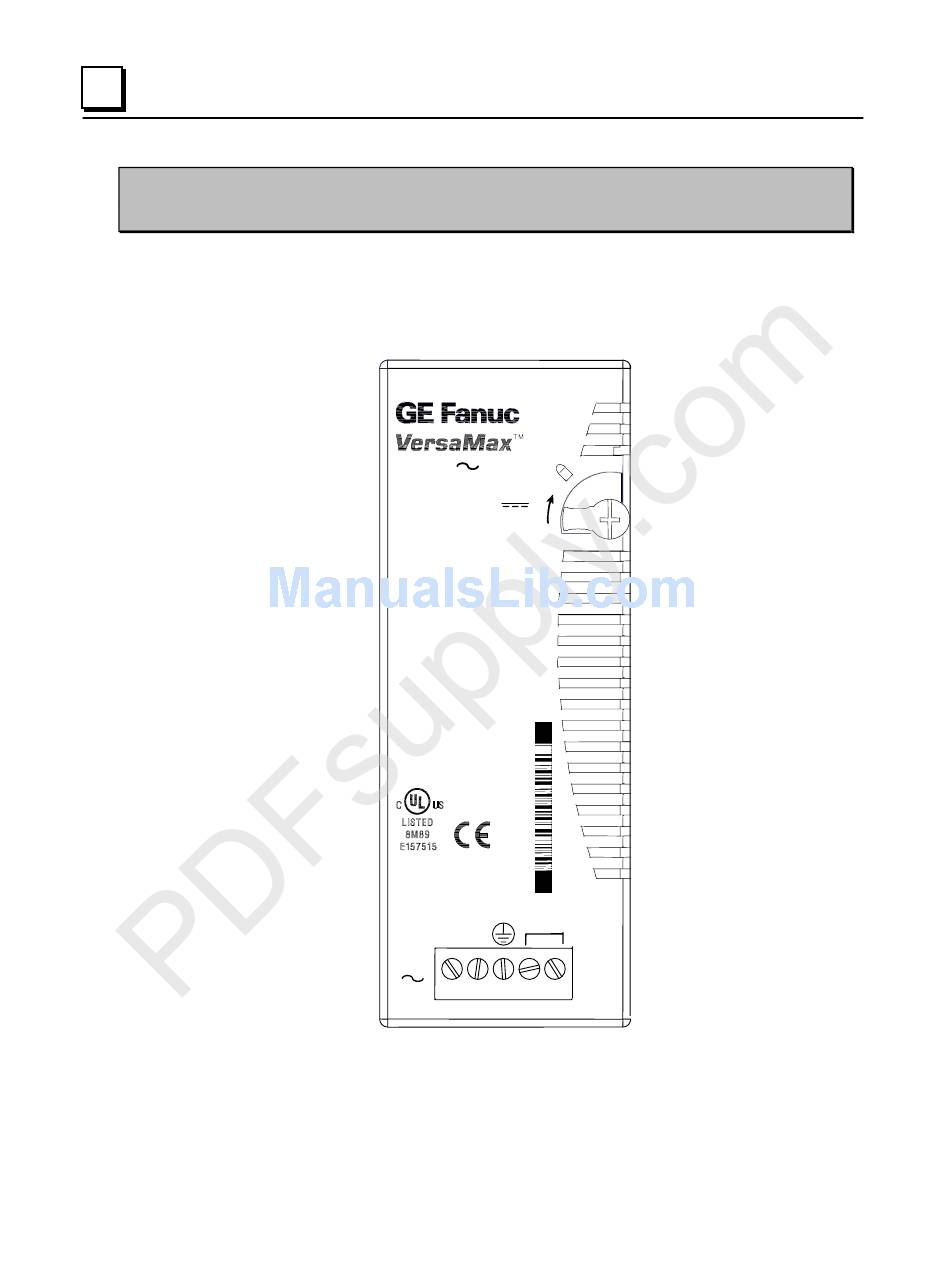

IC200PWR102
120/240VAC Expanded 3.3V Power Supply
120/240VAC Expanded 3.3 Power Supply IC200PWR102 provides backplane power for
CPU, NIU, and I/O modules. It supplies up to 1.5 Amps output current via 3.3 Volt and 5
Volt outputs, with up to 1.0 Amp on the 3.3V output. Module backplane current
consumption is summarized in appendix C.
When mounted on the CPU or NIU module, this power supply serves as the main power
supply for the station. It can also be used as a supplemental power supply when mounted
on a Power Supply Booster Carrier. Refer to the Power Supply Booster Carrier section of
chapter 4 for more information.
3-8 VersaMax® Modules, Power Supplies, and Carriers User's Manual – March 2003
120/240 VAC, 27VA
POWER SUPPLY
EXPANDED 3.3VDC
WARNING:
EXPLOSION HAZARD
WHEN IN HAZARDOUS
LOCATIONS TURN OFF
POWER BEFORE
REPLACING OR WIRING
MODULES.
IND CONT EQ FOR HAZ LOC
CLASS I DIV 2
GROUPS ABCD
Temp Code T4A
Ambient 60C
MADE IN USA
IC200PWR102
ADD JUMPER
FOR 120V
L N
INPUT
VAC
GFK-1504K
