9
IC200MDD843
Mixed Module, 24VDC Positive Logic Input Grouped 10 Points /
Output Relay 2.0A per Point Grouped 6 Points

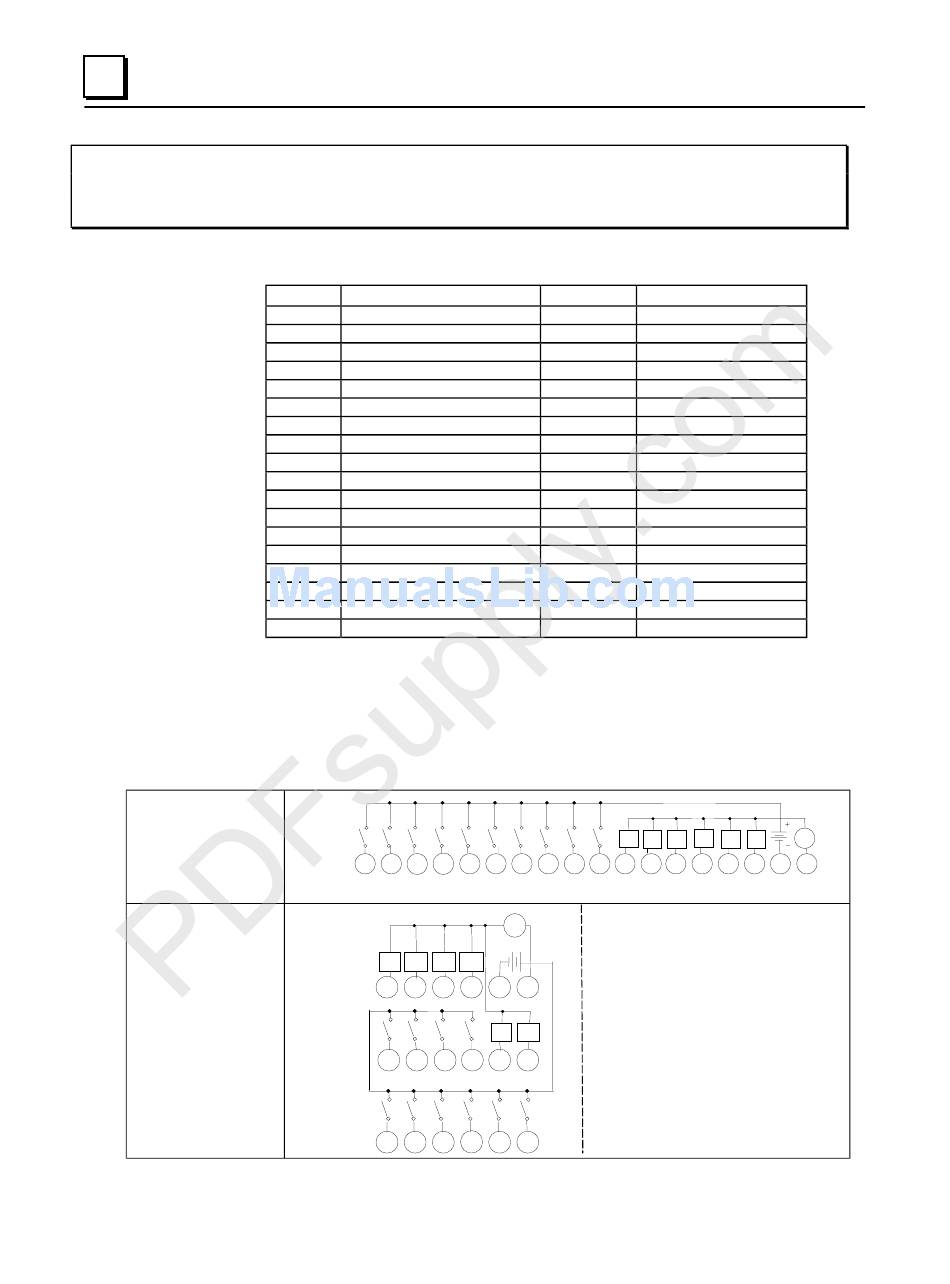

Field Wiring
If additional bussed terminals are needed, the B terminals can be made available by using a
shorting bar. The shorting bar has a maximum current-carrying capacity of 2 Amps per
point. See chapter 2 for additional information about using the shorting bar. When wiring
outputs to inductive loads, use of external suppression circuits is recommended. See
chapter 2, "Installing Wiring for I/O Devices-Wiring to Inductive Loads" for more
information.
Wiring Connections
for Carriers with Two
Rows of Terminals
IC200CHS002, 005
IC200CHS012, 015
Wiring Connections
for Carriers with
Three Rows of
Terminals
IC200CHS001, 022, 025
IC200CHS011
9-14 VersaMax® Modules, Power Supplies, and Carriers User's Manual – March 2003
Terminal Connection
A1 Input 1
A2 Input 2
A3 Input 3
A4 Input 4
A5 Input 5
A6 Input 6
A7 Input 7
A8 Input 8
A9 Input 9
A10 Input 10
A11 Output 1
A12 Output 2
A13 Output 3
A14 Output 4
A15 Output 5
A16 Output 6
A17 Inputs 1-10 Common
A18 Outputs 1-6 Common
I1 I2 I3 I4
A
1 2 3 4
A
Q3 Q4 Q5
13 14 15
I7 I8 I9
7 8 9
I1 I2 I3
1 2 3
Terminal
B1
B2
B3
B4
B5
B6
B7
B8
B9
B10
B11
B12
B13
B14
B15
B16
B17
B18
9 I10 Q1 Q2
I5 I6 I7 I8
5 6 7 8 9 10 11
V
+
-
Q6
16 17 18
I10
Q1 Q2
10 11 12
I4 I5 I6
4 5 6
Connection
No connection
No connection
No connection
No connection
No connection
No connection
No connection
No connection
No connection
No connection
No connection
No connection
No connection
No connection
No connection
No connection
No connection
No connection
Q4
Q3 Q5 Q6
V
12 13 14 15 16 17 18
