9
IC200MDD846
Mixed Module, Output Relay 2.0A per Pt Isolated 8 Points /
Input 120VAC Grouped 8 Points
Backplane Power Drain per Point
The module's backplane 5 volt power requirement increases as the number of output

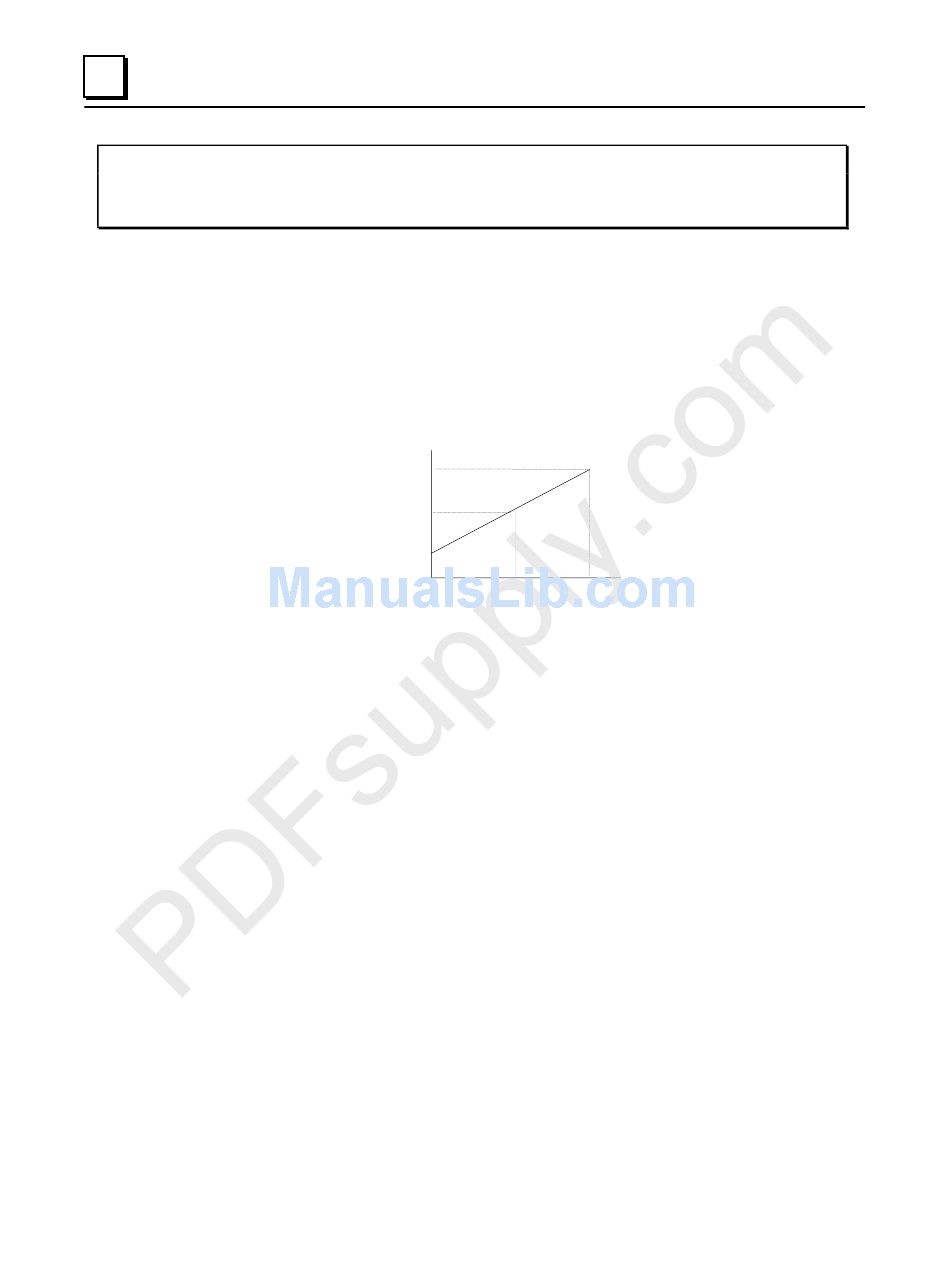

points that are simultaneously on increases. The chart below shows the relationship
between the number of points on and the maximum current required.
mA = 76 + (28 x number of output points on)
9-30 VersaMax® Modules, Power Supplies, and Carriers User's Manual – March 2003
Maximum Current Drawn from Backplane (mA)
300
188
76
0 4
Number of Output Points On
8
GFK-1504K
