IC200MDD840
Mixed Module, 24VDC Positive Logic Input 20 Points /
Output Relay 2.0 Amp 12 Points

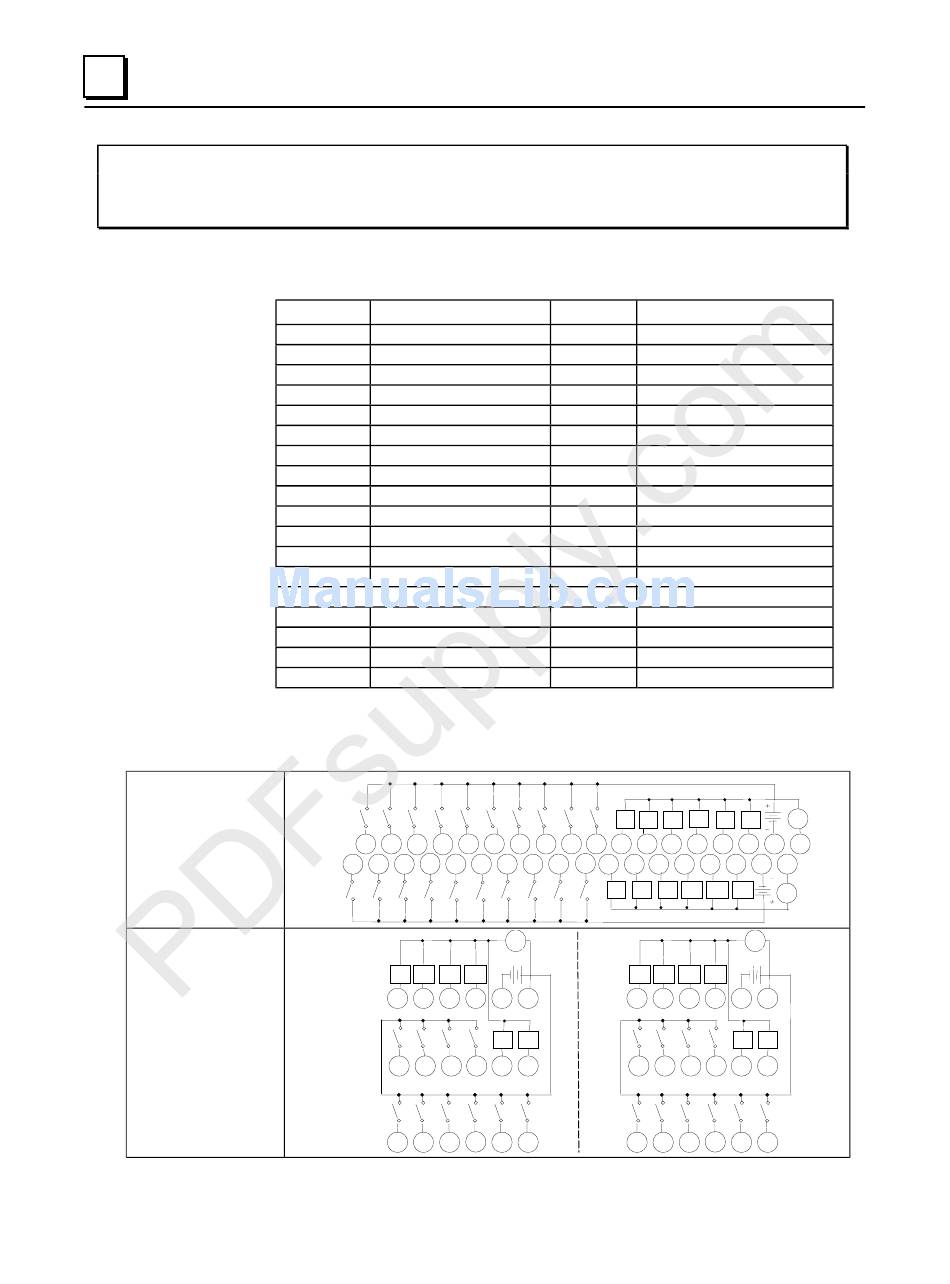

Field Wiring
When wiring outputs to inductive loads, use of external suppression circuits is
recommended. See chapter 2, "Installing Wiring for I/O Devices-Wiring to Inductive
Loads" for more information.
Wiring Connections
for Carriers with Two
Rows of Terminals
IC200CHS002, 005
IC200CHS012, 015
Wiring Connections
for Carriers with
Three Rows of
Terminals
IC200CHS001, 022, 025
IC200CHS011
9-4 VersaMax® Modules, Power Supplies, and Carriers User's Manual – March 2003
Terminal Connection
A1 Input 1
A2 Input 2
A3 Input 3
A4 Input 4
A5 Input 5
A6 Input 6
A7 Input 7
A8 Input 8
A9 Input 9
A10 Input 10
Output 1
A11
Output 2
A12
Output 3
A13
Output 4
A14
Output 5
A15
Output 6
A16
A17 Inputs 1-10 Common
A18 Outputs 1-6 Common
I1 I3 I4 I5
I2
A
1 2 3 4 5
B
1 2 3 4 5
I11 I12 I13 I14
I15
Q3 Q4 Q5 Q6
13 14 15 16
I7 I8 I9
7 8 9
I1 I2 I3
A
1 2 3
Terminal
B1
B2
B3
B4
B5
B6
B7
B8
B9
B10
B11
B12
B13
B14
B15
B16
B17
B18
I6 I7 I8 9 I10 Q1 Q2
6 7 8 9 10 11 12
6 7 8 9 10 11 12
Q7 Q8
I17 I18 I19 I20
I16
V
- +
Q9
17 18 13
I10 I17
Q1 Q2
10 11 12 7
I4 I5 I6 I11
B
4 5 6 1
Connection
Input 11
Input 12
Input 13
Input 14
Input 15
Input 16
Input 17
Input 18
Input 19
Input 20
Output 7
Output 8
Output 9
Output 10
Output 11
Output 12
Inputs 11-20 Common
Outputs 7-12 Common
Q4
Q3 Q5 Q6 V
13 14 15 16 17 18
13 14 15 16 17 18
Q9 Q10 Q11 Q12
V
V
- +
Q10 Q11 Q12
14 15 16 17 18
I18 I19 I20
Q7 Q8
8 9 10 11 12
I12 I13 I14 I15 I16
2 3 4 5 6
