Install the Internal HBA Card in PCIe Slot 4

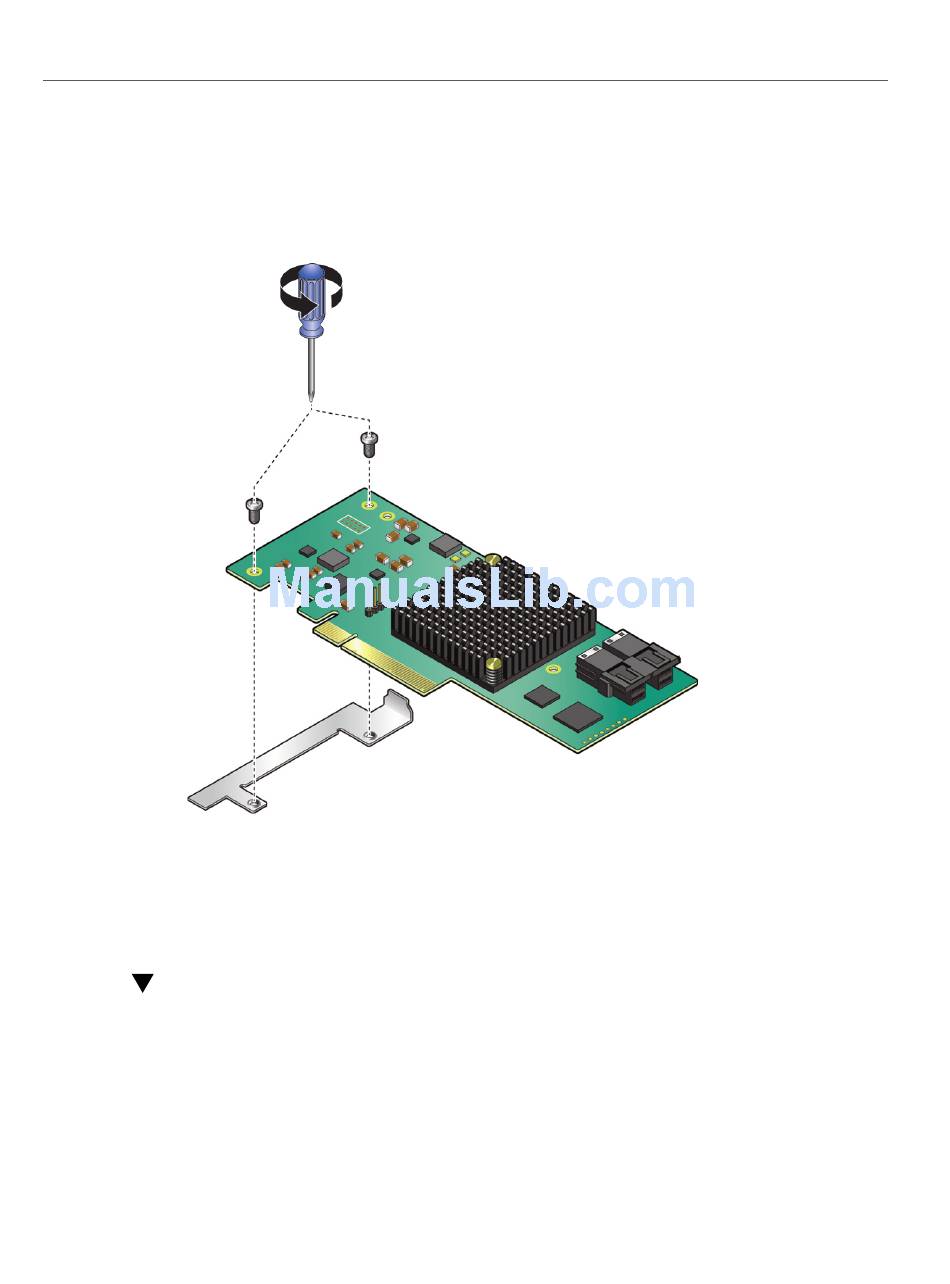

You must install the special fitted bracket on the replacement HBA card. Set aside the bracket
until you are ready to install the replacement HBA card.
If you need to remove the SAS cables, see "Remove the HBA SAS Cable
7.
Assembly" on page 119.
Install the Internal HBA Card in PCIe Slot 4
This is a cold-service procedure that must be performed by qualified service personnel. Power
down the server completely before performing this procedure.
Servicing PCIe Cards 105
