1B-30 AIR CONDITIONING (OPTIONAL)
2
5
3
2
1

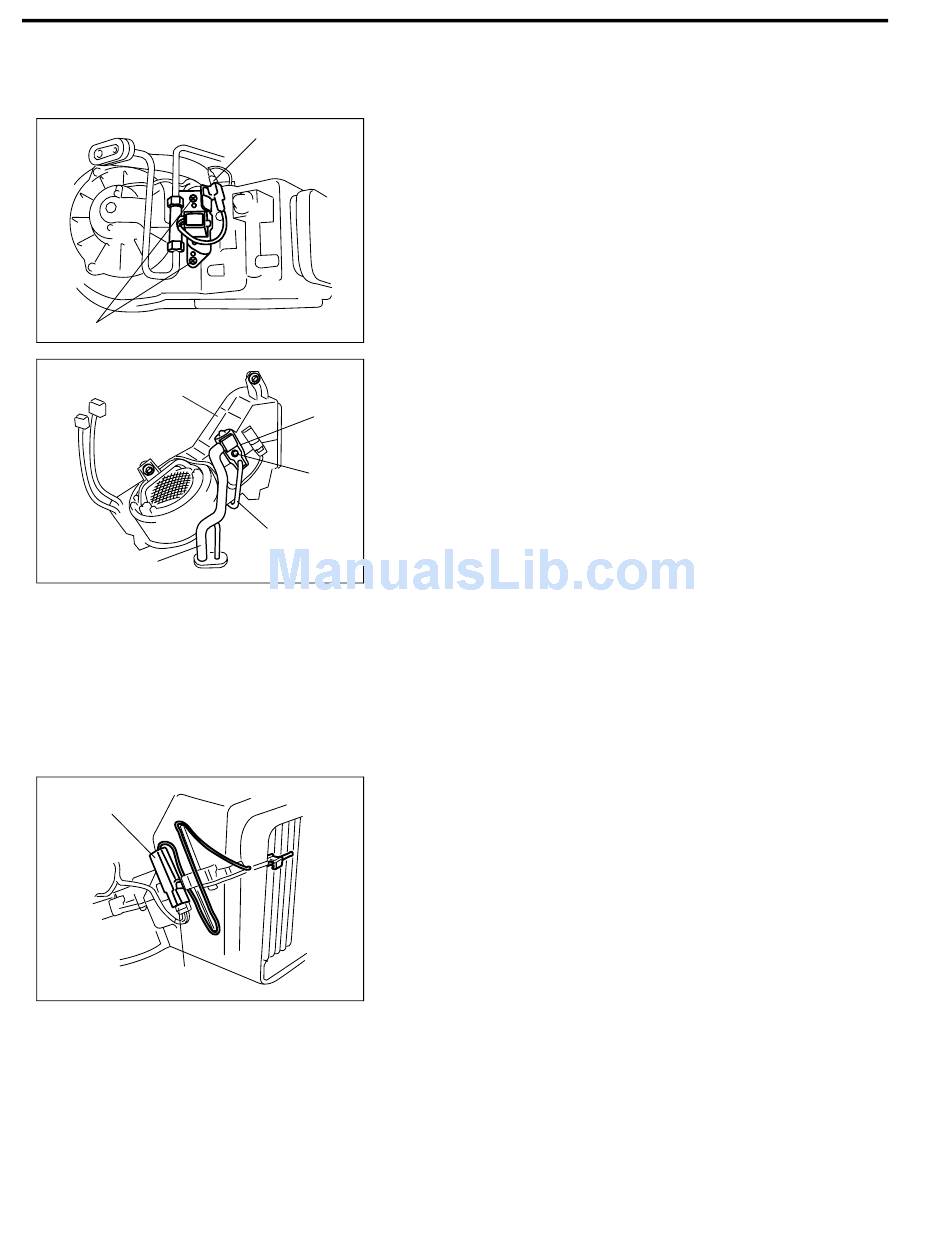

REMOVAL
1) Remove rear A/C unit referring to "REAR A/C UNIT" in this
section.
1
2) Disconnect solenoid valve connector (1).
3) Loosen solenoid valve bracket mounting screws (2).
4) Remove rear liquid pipe and rear suction pipe bolt (1), and
then disconnect rear liquid pipe (2) and rear suction pipe (3)
4
with solenoid valve and its bracket from rear expansion valve
(4).
5) Remove rear expansion valve (4) from rear A/C unit (5).
1
NOTE:
Cap open fitting immediately to keep moisture out of sys-
2
tem.
INSTALLATION
Reverse removal procedure to install rear expansion valve.

Rear A/C Evaporator Temperature Controller

REMOVAL
1) Remove rear A/C unit referring to "REAR A/C UNIT" in this
section.
2) Disconnect rear A/C evaporator temperature controller con-
nector (1).
3) Remove rear A/C evaporator temperature controller (2) from
rear A/C unit.
