1.
007-5467-001
Chapter 1
Introduction
The SGI Altix XE250 server is a 2U rackmount server (refer to
contains 1 node board, power supplies, cooling fans, and disk drives.

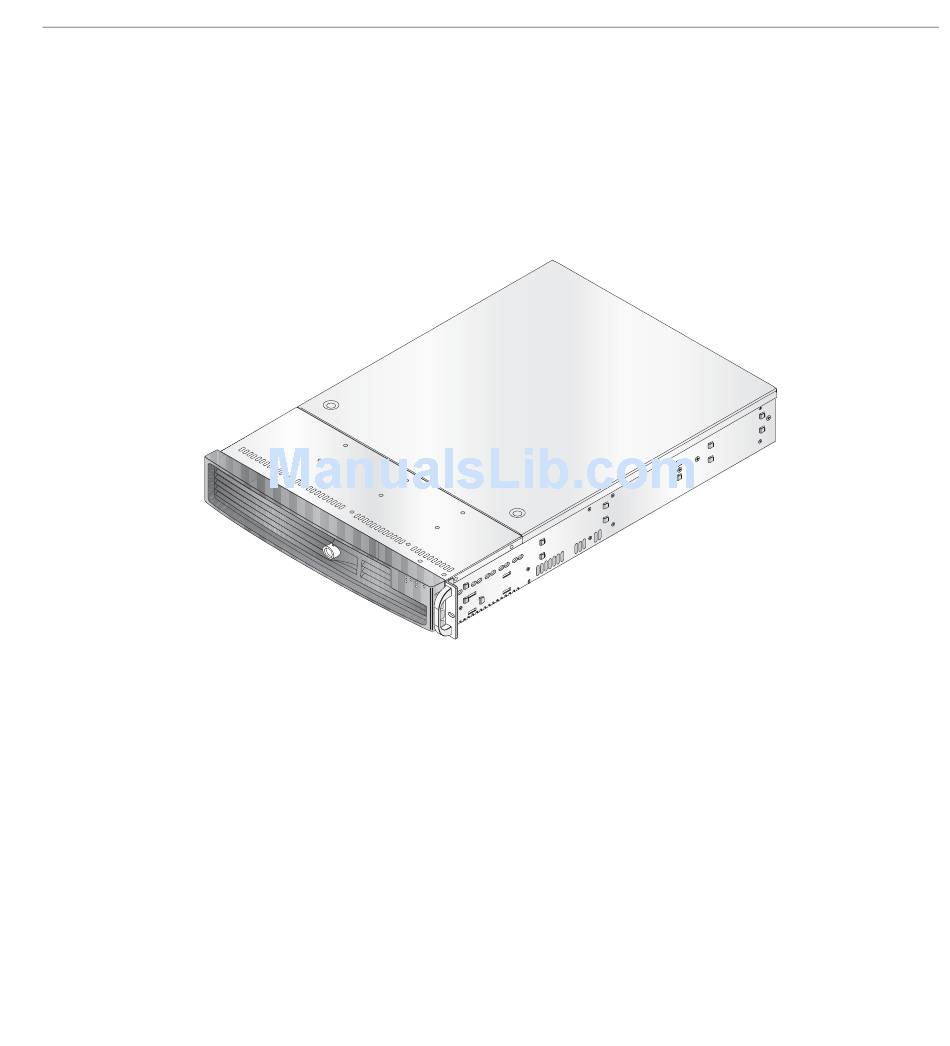

Figure 1-1
SGI Altix XE250 Server
The following hardware are components are included (refer to
Three 8-cm hot-swap chassis fans
Node board including CPUs and heatsinks, and memory DIMMs
One DVD-CD drive
One rail set
SATA/SAS disk drives
SATA/SAS Accessories
SATA/SAS backplane
Eight hot-swap drive carriers
Disk drive cables
3.5-in dummy drive trays as needed
Figure 1-1
and
Figure
1-2) that
Figure
1-2):
1-1
