PW_ON Switch Pin Definitions (JF1)

Reset Switch Pin Definitions (JF1)

007-5467-001
Table 3-8 through Table 3-16
shows the location of connector JF1 on the node board.

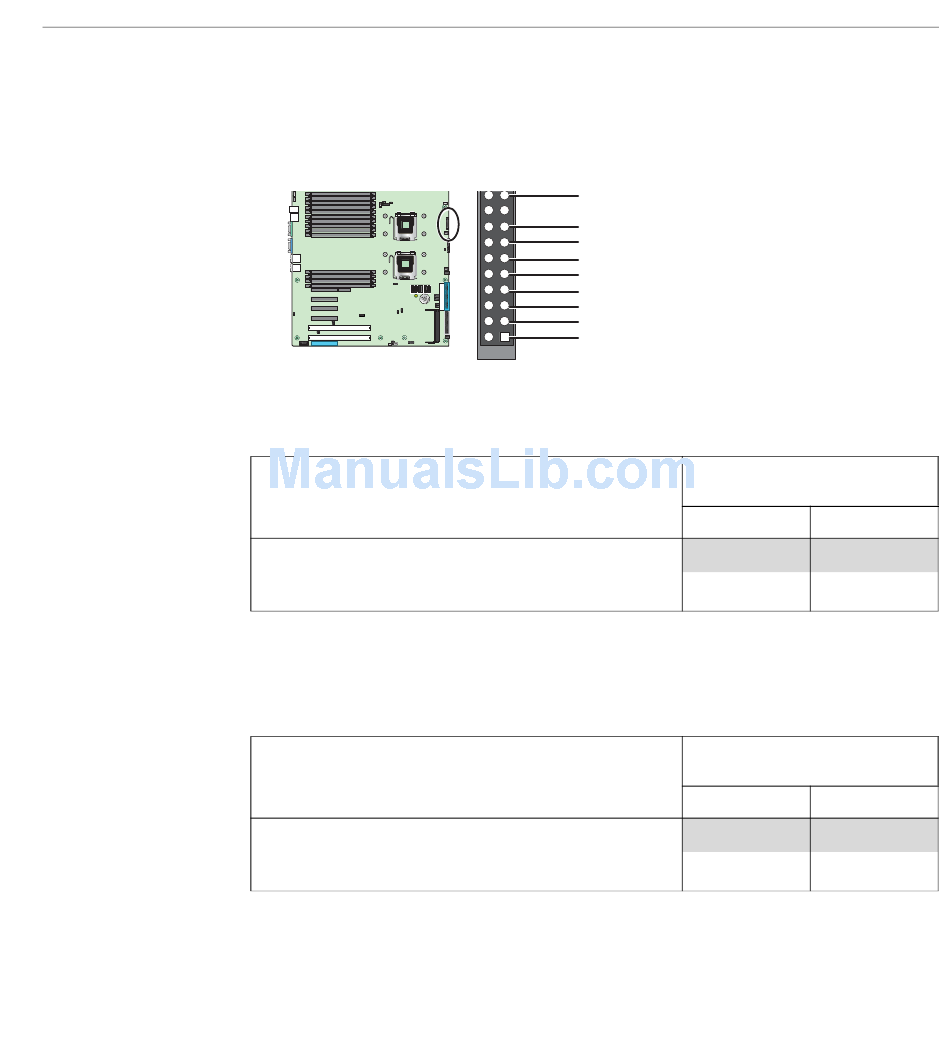

Figure 3-15 JF1 Connector Location Pin Definitions
Table 3-8

PW_ON Switch Pin Definitions (JF1)

The PW_ON connector is on pins 1 and 2 of JF1 (refer to
Figure 3-15 on page 61). This connector should be connected to
the chassis power button.
Table 3-9

Reset Switch Pin Definitions (JF1)

The reset connector is located on pins 3 and 4 of JF1 (refer to
Figure 3-15 on page 61) and attaches to the reset switch on the
computer chassis.
list the SGI Altix XE250 JF1 connector pin definitions.
NMI Button
Power On LED
HDD LED
NIC 1
NIC 2
Overheat/Fan Fail
PWR Fail LED
RESET
PW_ON
Notes
Notes
Node Board Connector Pin Definitions
Figure 3-15
PW_ON Button Pin Definitions
JF1
Pin# Definition
1 PW_ON
2 Ground
Reset Button Pin Definitions
JF1
Pin# Definition
3 Reset
4 Ground
3-61
