3rd Power Fail Detect Jumper Settings (JP3)

The system can notify you in the event of a power supply failure. This feature is available when
three power supply units are installed in the chassis with one acting as a backup. If you only have
one or two power supply units installed, you should disable this feature (the default setting)
using J3P to prevent false alarms (refer to
007-5467-001
Table 3-35 3rd Power Failure Detect Jumper Settings (JP3)
Notes
Figure 3-28).

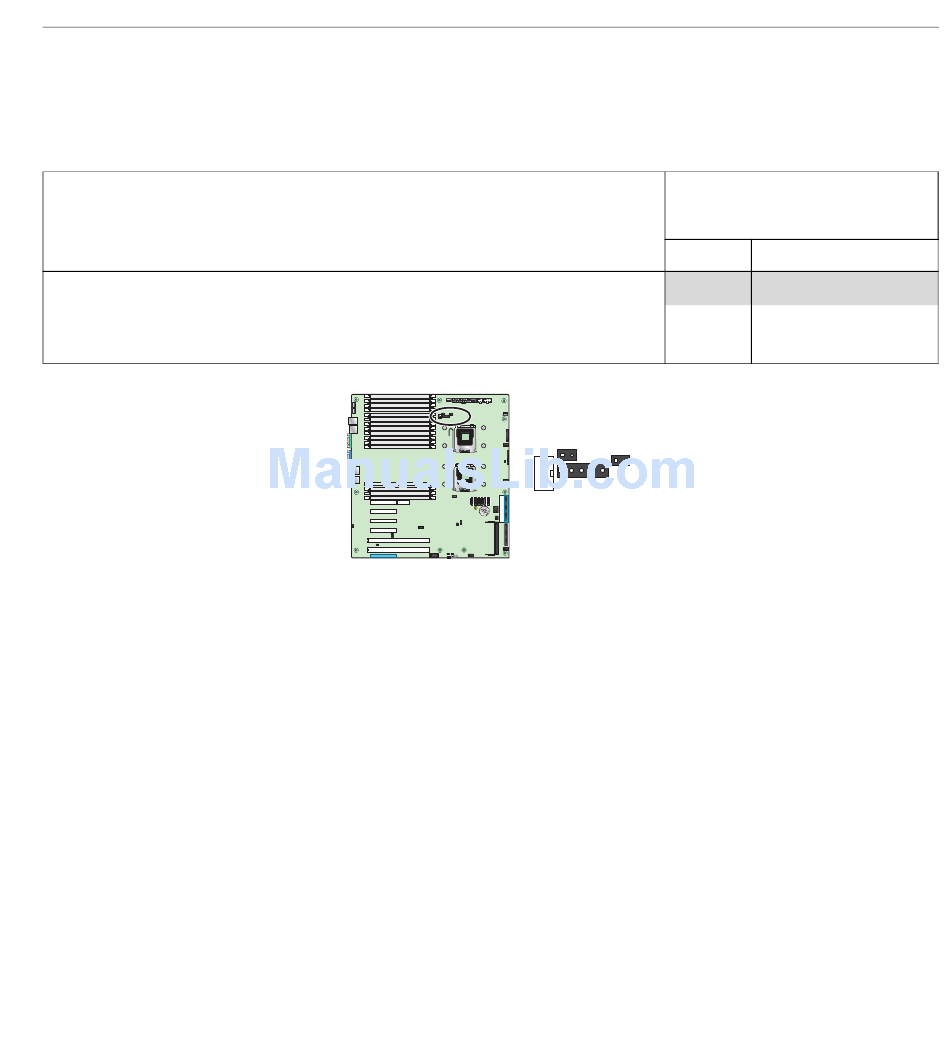

Figure 3-28
3rd Power Failure Detect Jumper Locations (JP3)
Jumper
1-2
2-3
JAR
J3P
SMBUS
JP3
Node Board Jumper Settings
3rd Power Fail Detect
Jumper Setting
JP3
Definition
Enabled
Disabled
