Overheat/Fan Fail LED Connector Pin Definitions (JOH1)

3-74
Table 3-30

Overheat/Fan Fail LED Connector Pin Definitions (JOH1)

The JOH1 connector is used to connect an LED to provide warning
of chassis overheating. This LED will blink to indicate a fan failure
(refer to Figure 3-23). A solid LED indicates an overheat condition.
A blinking LED indicates a fan fail condition.

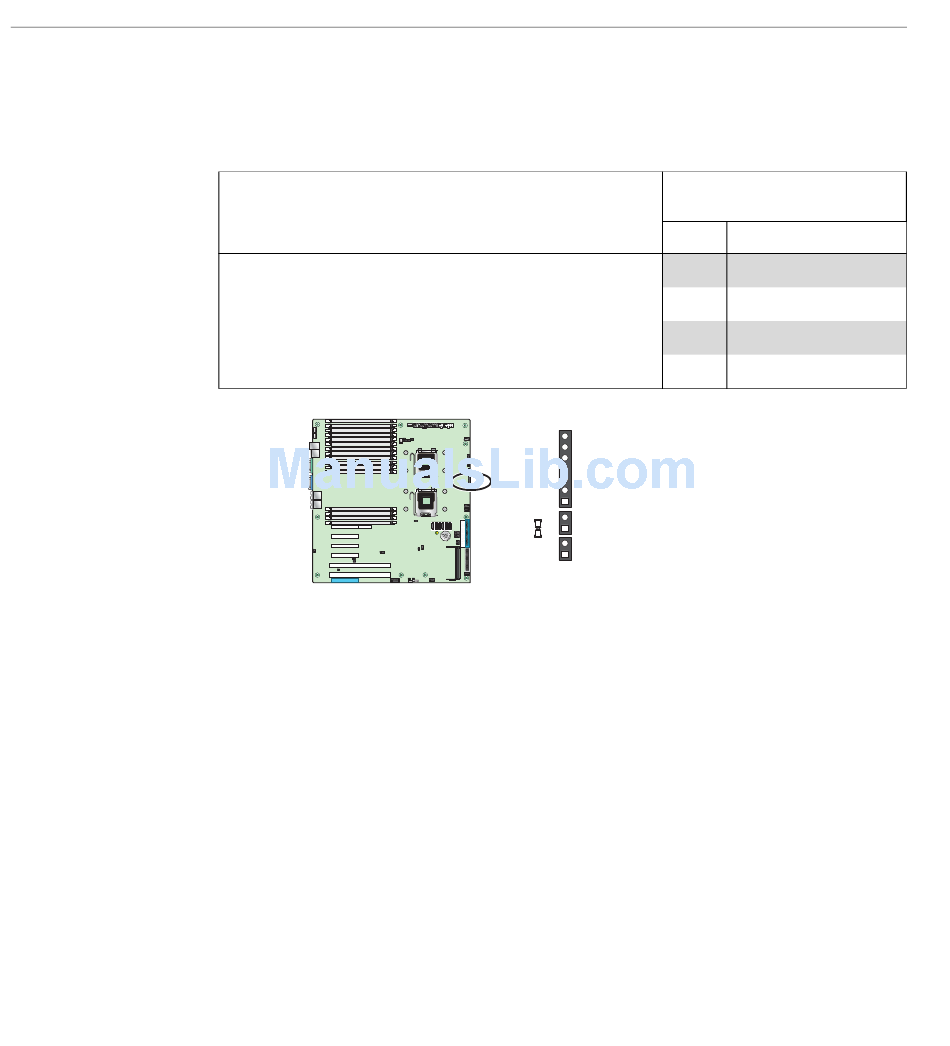

Figure 3-23
JOH1 Connector Location
Notes
JD1
JP1
LE1
JOH1
JOH1 Connector Pin Definitions
JOH1
Pin# Definition
1 5Vdc
2 OH Active
