SNMP Settings

007-5467-001
• Event Log Assignments: This window enables you to specify the types and the destination
for the event logging.
Click on this function key to configure Simple Network Management Protocol (SNMP) settings.

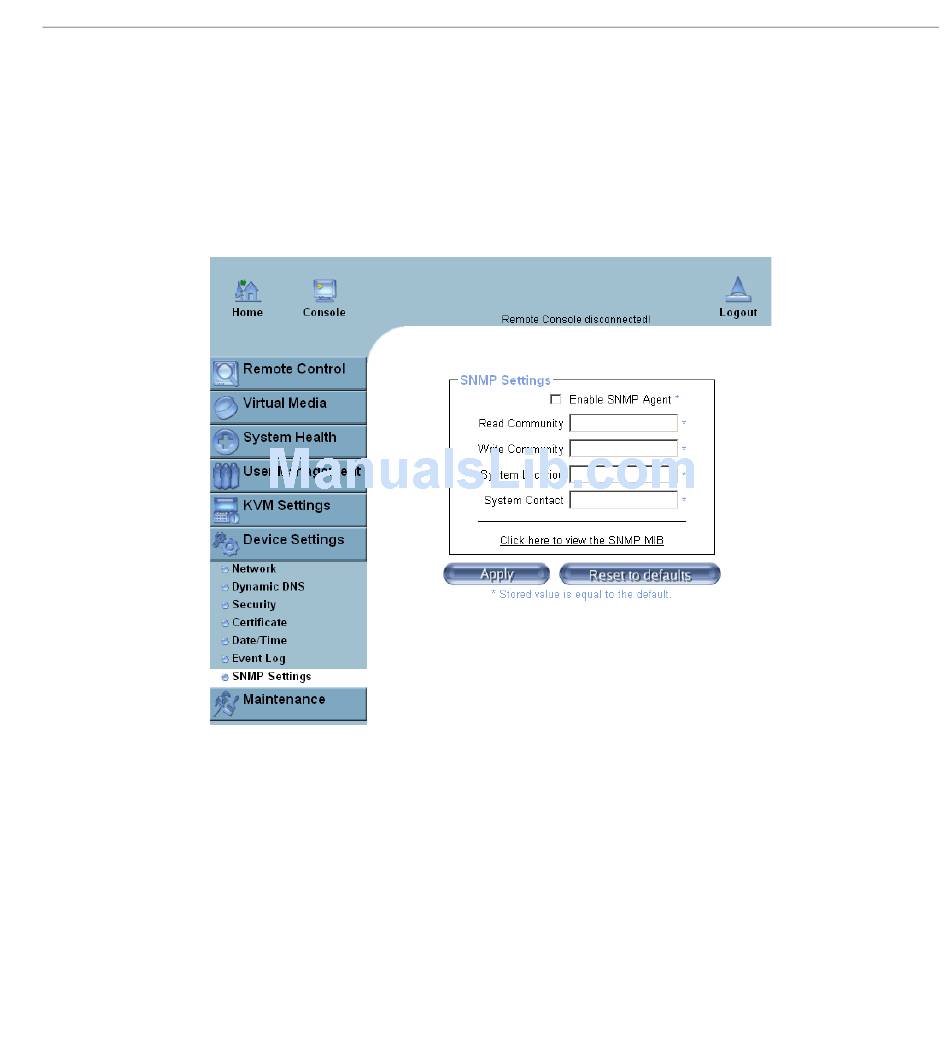

Figure B-19
SNMP Settings
Refer to Figure B-19.
• Enable SNMP Agent: Check the box to enable the SNMP Agent and allow it to interface
with your BMC card.
• Read Community: Enter the name of the SNMP Community from which you retrieve
information via SNMP.
• Write Community: Enter the name of the SNMP Community to which you can write
information and issue commands via SNMP.
Device Settings
B-199
