Drive Replacement

A
007-5467-001
The drive carriers are all easily accessible at the front of the chassis. These are (with RAID
enabled) hot-swap drives. To remove a carrier, push the release button located beside the drive
LEDs. Then, swing the handle fully out and use it to pull the unit straight out (refer to
2
1
C

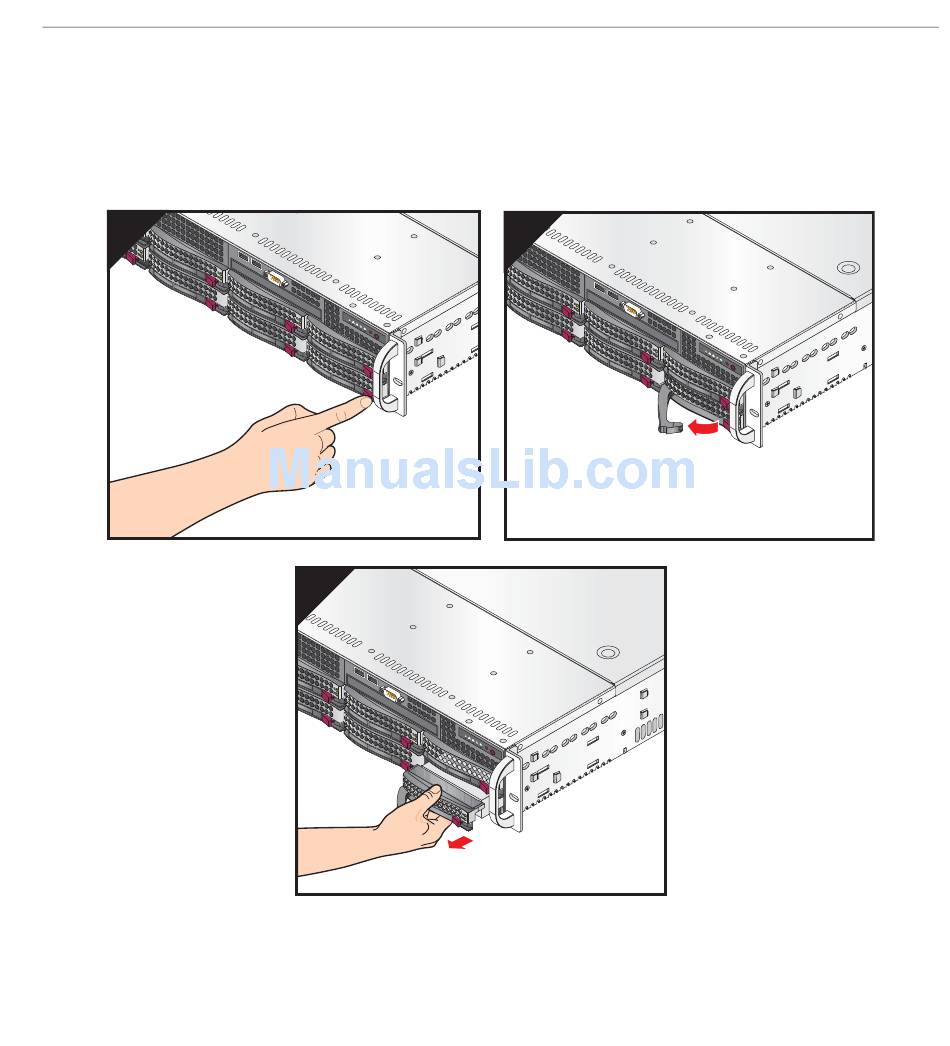

Figure 4-7
Drive Removal
B
2
1
System Drives
Figure
2
1
4-7).
4-99
