VGA Jumper Settings (JPG1)

Jumper JPG1 (refer to Figure
1 and 2 jumpered, which enables VGA port.

LAN1/LAN2 Jumper Settings (JPL1)

Jumper JPL1 (refer to Figure
board. The default setting is enabled.
Table 3-33

VGA Jumper Settings (JPG1)

Notes
3-26) enables or disables the VGA port. The default position is pins
Table 3-34

LAN1/LAN2 Jumper Settings (JPL1)

Notes
3-27) enables or disables the LAN1 and LAN2 ports on the node
JPL1

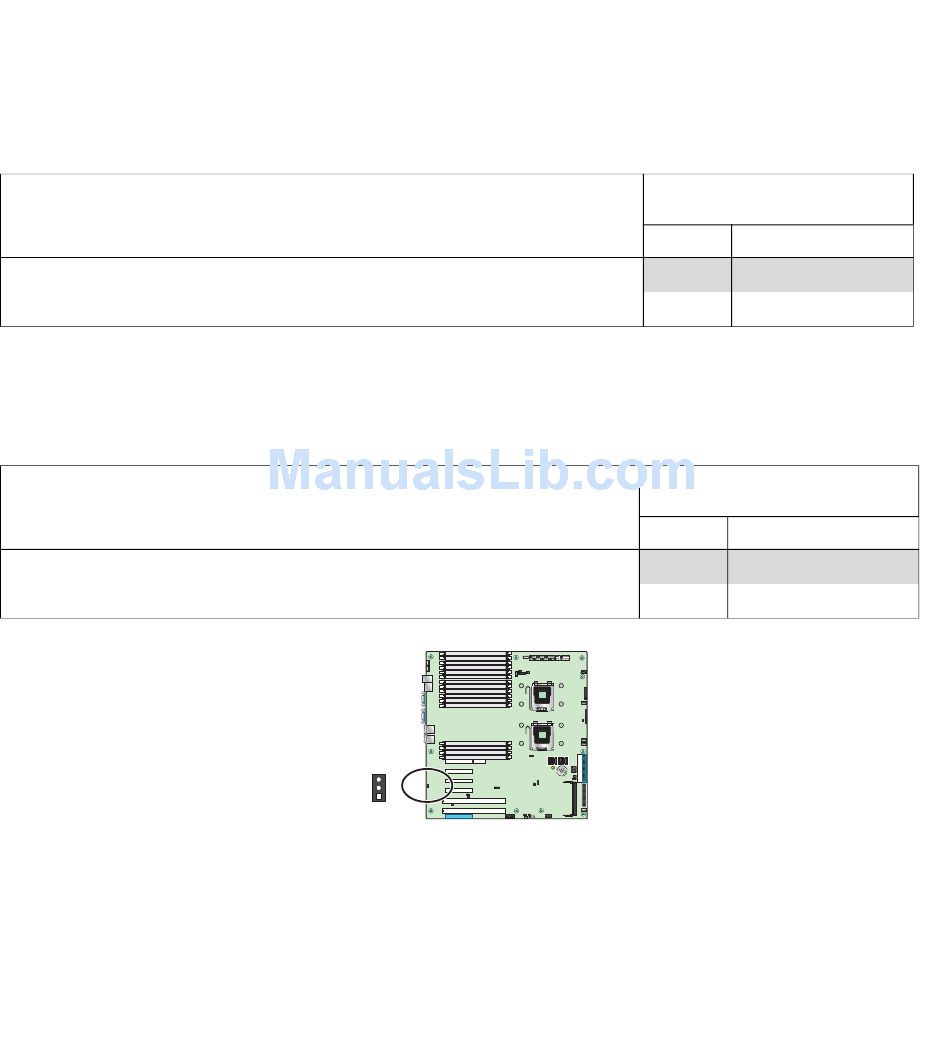

Figure 3-27 LAN 1 and LAN 2 Jumper Locations (JPL1)
VGA Enable/Disable Jumper Settings
JPG1
Jumper Definition
1-2 Enabled
2-3 Disabled
LAN1/LAN2 Jumper Settings
JPL1
Jumper Definition
1-2 Enabled
2-3 Disabled
