3: Advanced Node Board Setup

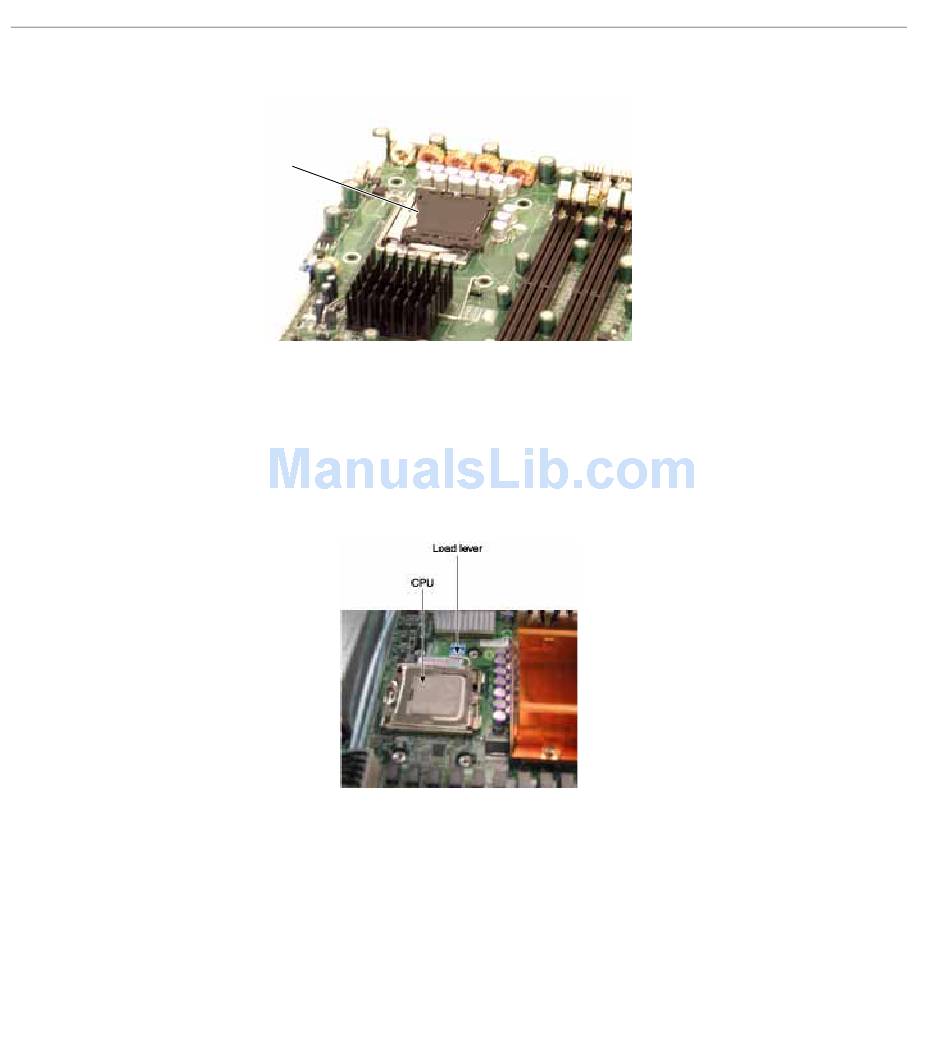

PnP cap released
from load plate

Remove the Processor

3-38
11. Repeat these steps to install a second CPU if desired.
1. Press the load lever down and away from the retention clasp to release the load plate from its
locked position.
2. Gently lift the load lever to open the load plate.
007-5467-001
