be managed so that no outlet group exceeds 20 A. For cabling three-phase PDUs,
the load must be balanced between the three phases. The PDU groupings are
reversed from one side to the other. From the back of the system, the PDU
grouping to the right is 0 - 5 from top down. The PDU grouping to the left side is
5 - 0 from top down.

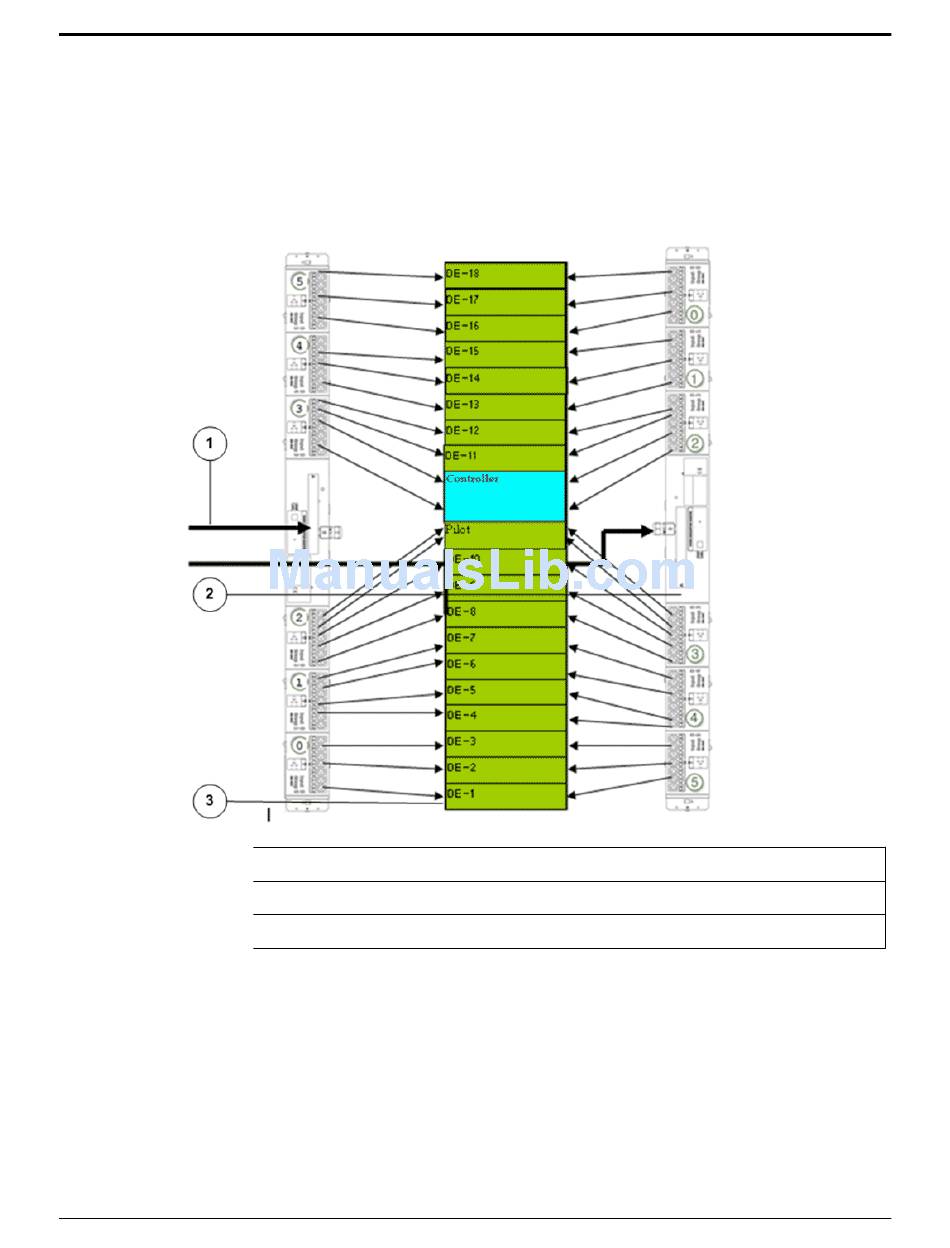

Figure 25: Wiring Diagram: Three-phase PDU Cabling
Legend
Related Links
Three-Phase PDU Cabling
Power On the System
Set up a separate circuit and power outlet for each power distribution unit (PDU)
as part of your site planning. These outlets must be located within reach of the
PDU power cables.
1 AC lines in
2 Three-phase pre-installed PDU
3 Representative Oracle FS System
System Power
63
