Table 28: Controller LED status and description (front panel) (continued)
No. LED
7
Fault or
Alarm LEDs
(Critical,
Major,
Minor)
8
User Alarm
LED

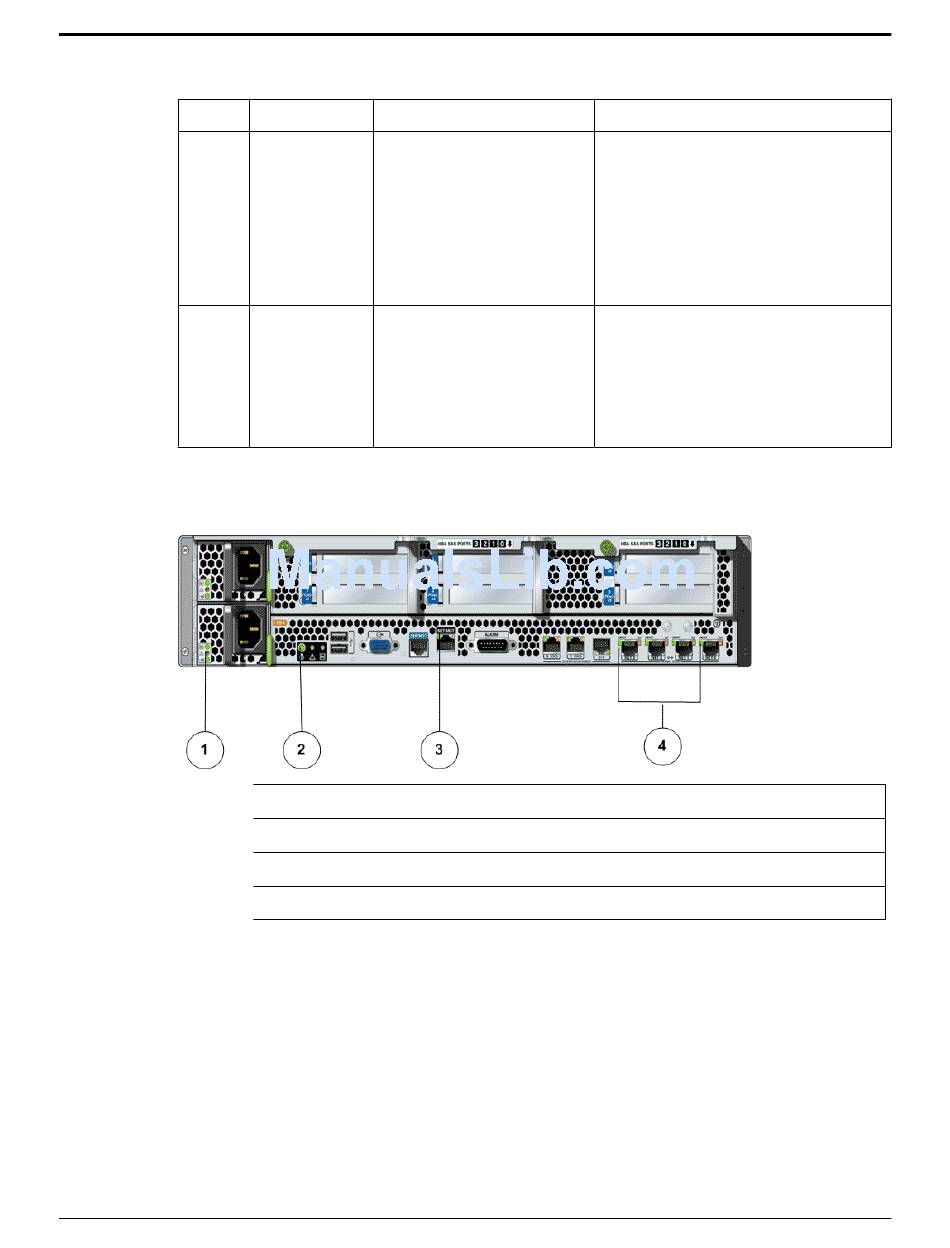

The following figure shows the LEDs at the back of the Controller:

Figure 47: Controller back LEDs

Legend
1 Power supply status LEDs
2 Chassis Status LEDs
3 Network management LED
4 Net0 to Net3 status LEDs
The following table provides information on the LEDS at the back of the
Controller:
LED color
Critical Alarm
•
LED : Red
Major Alarm
•
LED: Red
Minor Alarm
•
LED: Amber
Amber
Oracle FS System LED Status
Status
Note: The alarm indicators appear
on the front panel of the Controller
but are not applicable for the
Oracle FS System.
Indicates a user alarm condition.
Note: The alarm indicators appear
on the front panel of the Controller
but are not applicable for the
Oracle FS System.
118
