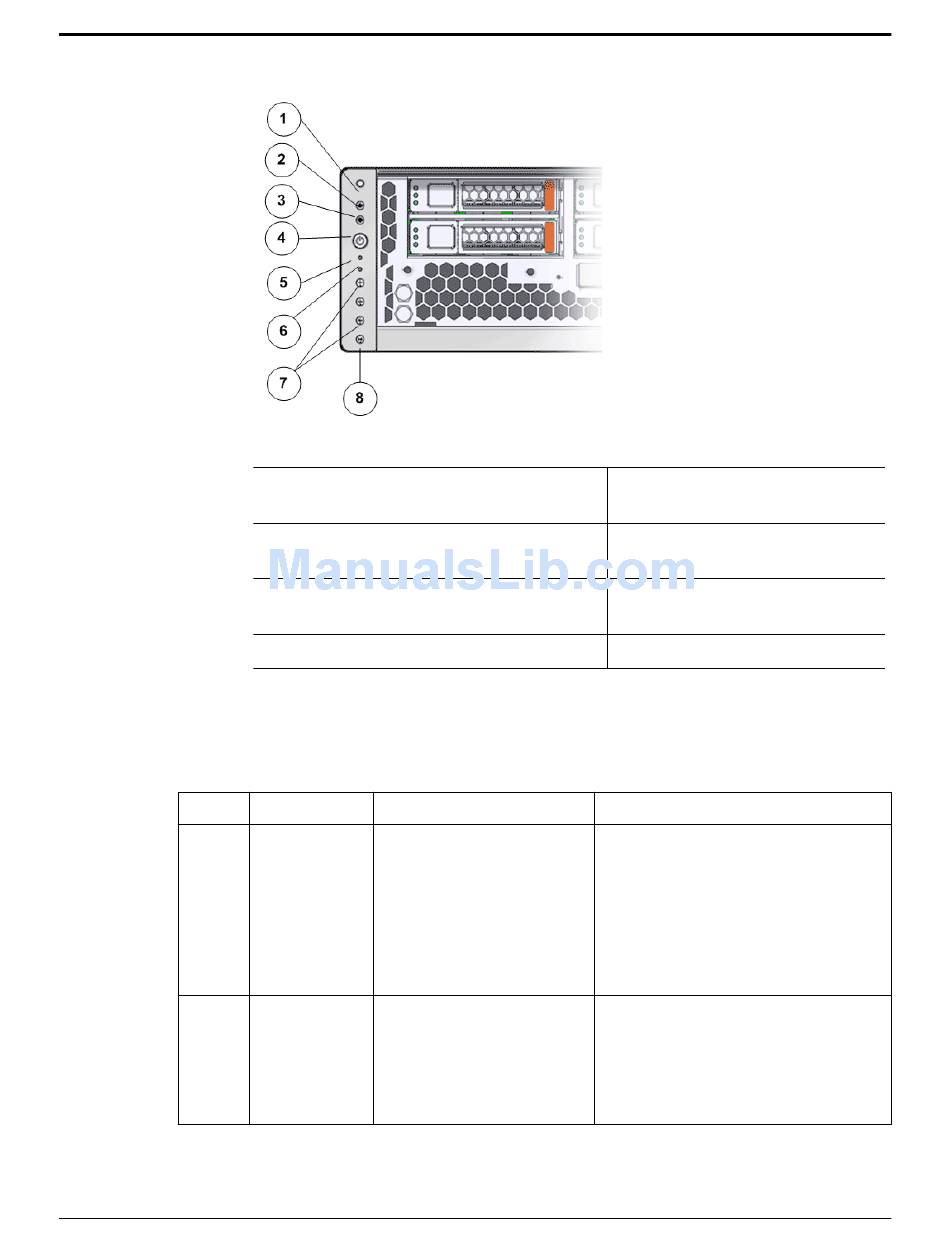

Figure 46: LED alarm assembly front display
Legend
1 Chassis identification LED or Locator
LED
2 Service Action Required LED or
Caution or Fault LED
3 Motherboard or Power or OK LED
4 Power switch
The following table provides status information on the LEDs on the front display
panel of the LED alarm assembly on the Controller:
Table 28: Controller LED status and description (front panel)
No.
LED
1
Chassis
identification
LED
or
Locator LED
button
2
Service
Action
Required
LED
LED color
White
Amber
Oracle FS System LED Status
5 Service processor LEDs
6 Back power supply LED
7 Fault or Alarm LEDs (Critical,
Major, Minor)
8 User Alarm LED
Status
The Locator LED can be turned on
to identify a particular system.
When on, the LED blinks rapidly.
Pressing and holding the Locator
button for 5 seconds initiates a test
of all LEDs in the LED assembly.
Indicates that service is required.
Under some fault conditions,
individual component fault LEDs
are turned on in addition to the
Service Required LED.
116
