Table 22: Mini-SAS to mini-SAS cables

Cable Color
Mini-SAS to Black
mini-SAS
Mini-SAS to Black
mini-SAS
The following figure shows an example of mini-SAS to mini-SAS cable
connectors.

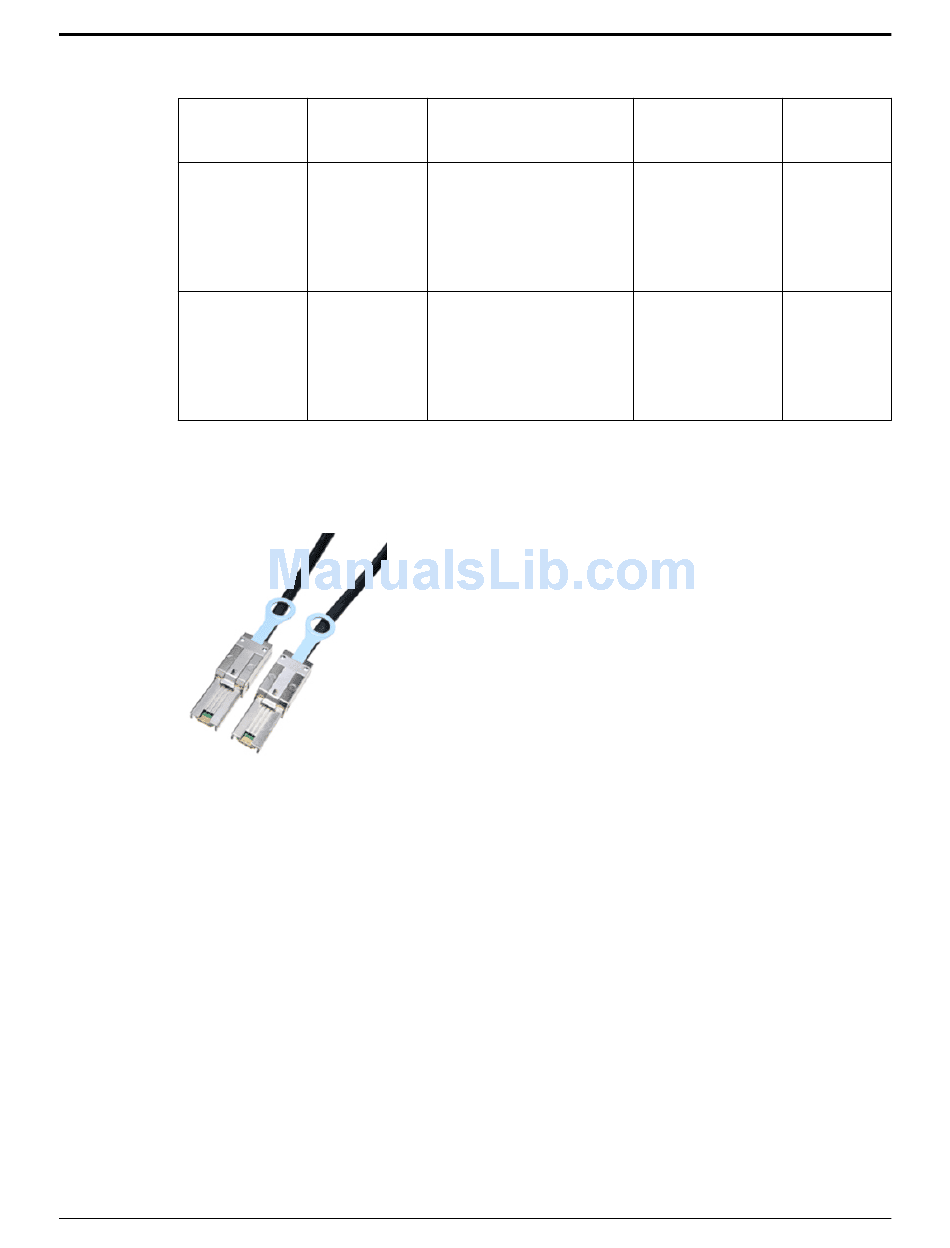

Figure 17: Example of mini-SAS to mini-SAS cable connectors

Internal Power Cords
The following table lists the types of power cords and lengths of power cords
that connect the hardware components to the power distribution units (PDUs).
Note: The references to PDU 1 and PDU 2 in the following table indicate that the
connections are to be made to separate PDUs connected to separate external
power sources for system redundancy. The actual number of PDUs in a system
can vary.
Cable path
Connects a Drive
Enclosure to another
Drive Enclosure of the
same string in the same
rack
Connects a Drive
Enclosure to another
Drive Enclosure of the
same string in separate
racks
Oracle FS System Cables
Quantity Cable
length
Varies based on 9.84 feet
the
(3 m)
configuration of
the system
Varies based on 19.69
the
(6 m)
configuration of
the system
49
