Note: Do not disconnect the Ethernet cables from the NET 3 ports on the
Pilots.
2
Connect the Ethernet cables from the NET 3 ports on the Pilots to the
customer management network.
The following figure shows the NET 3 ports on the Pilots.

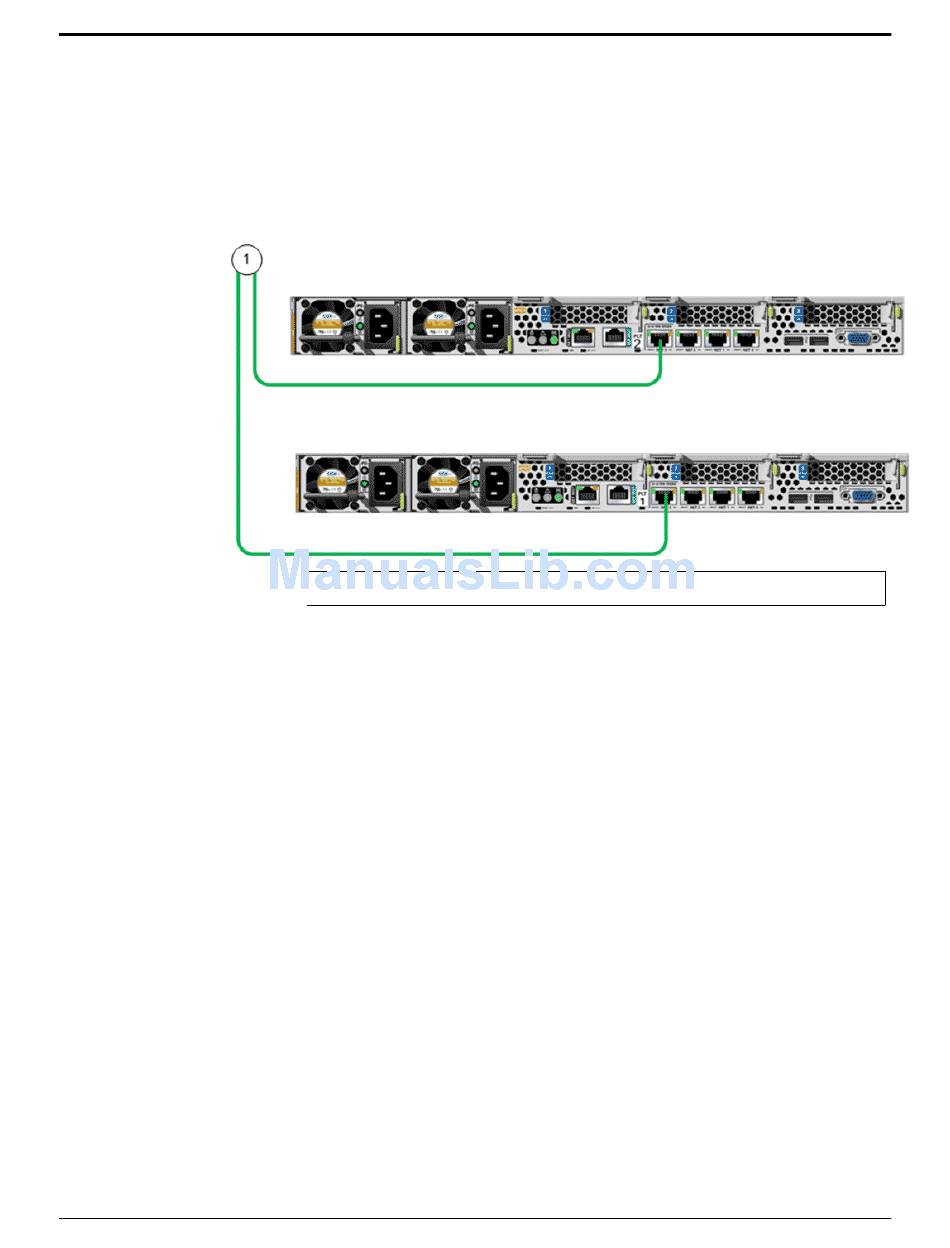

Figure 29: The NET 3 ports on the Pilots
Legend
3
From a workstation on the customer management network, ping the IP
addresses for the customer management network, Pilot 1, and Pilot 2.
Issue the ping from a workstation on the same subnet as the three IP
addresses.
Related Links
Cabling Workflow
Download Oracle FS System Manager to a Laptop
Configure the Management IP Addresses
Types of External Cables
Download Oracle FS System Manager to Workstations
After connecting the Oracle FS System to the customer management network,
download and install Oracle FS System Manager (GUI) to the customer's
Configure and Connect to the Customer Management Network
1 Customer management network from the NET 3 ports on the Pilots
