Use a mini-SAS to mini-SAS cable (19.69 feet/6m) to connect a Drive Enclosure in
one rack to a Drive Enclosure of the same string in another rack.

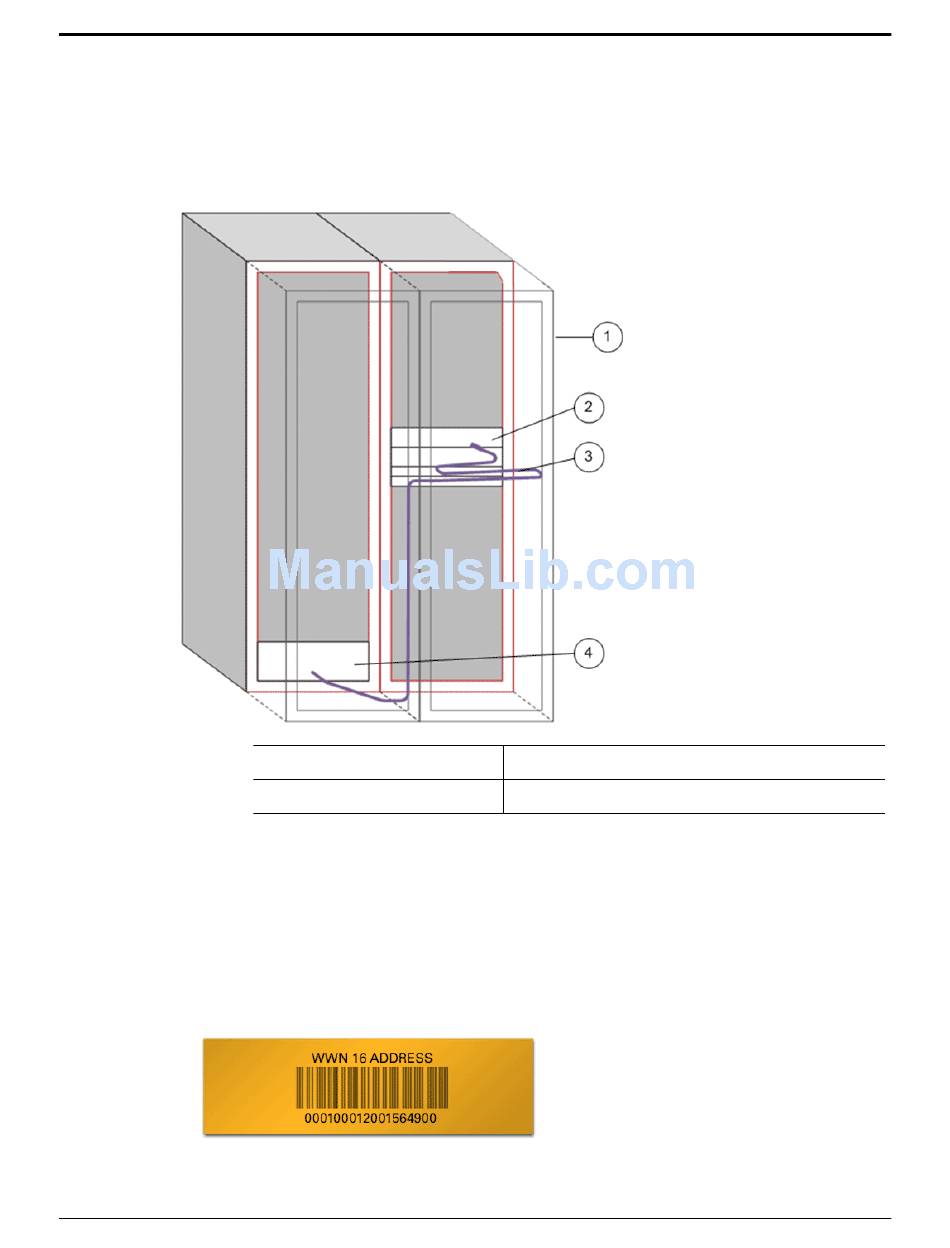

The following figure shows a wiring diagram for cabling a Controller in one rack
to a Drive Enclosure in another rack.

Figure 4: Controller-to-Drive Enclosure cabling between two racks

Legend

WWnN and System Serial Number Labels

The system serial number (SSN) labels and the Controller World Wide Node
Number (WWnN) labels are on the Oracle FS System to facilitate system
identification.

Figure 5: WWnN label

1 Back of a rack
2 Controller
Oracle FS Systems: Installation Overview
3 Cable Management Arm (CMA)
4 Drive Enclosure
