Pilot Cabling
External cabling of the Pilot nodes connects the Oracle FS System to the customer
management network. Internal cabling provides the private management
interface (PMI) to support the internal private management protocol used for the
internal functioning of the system.

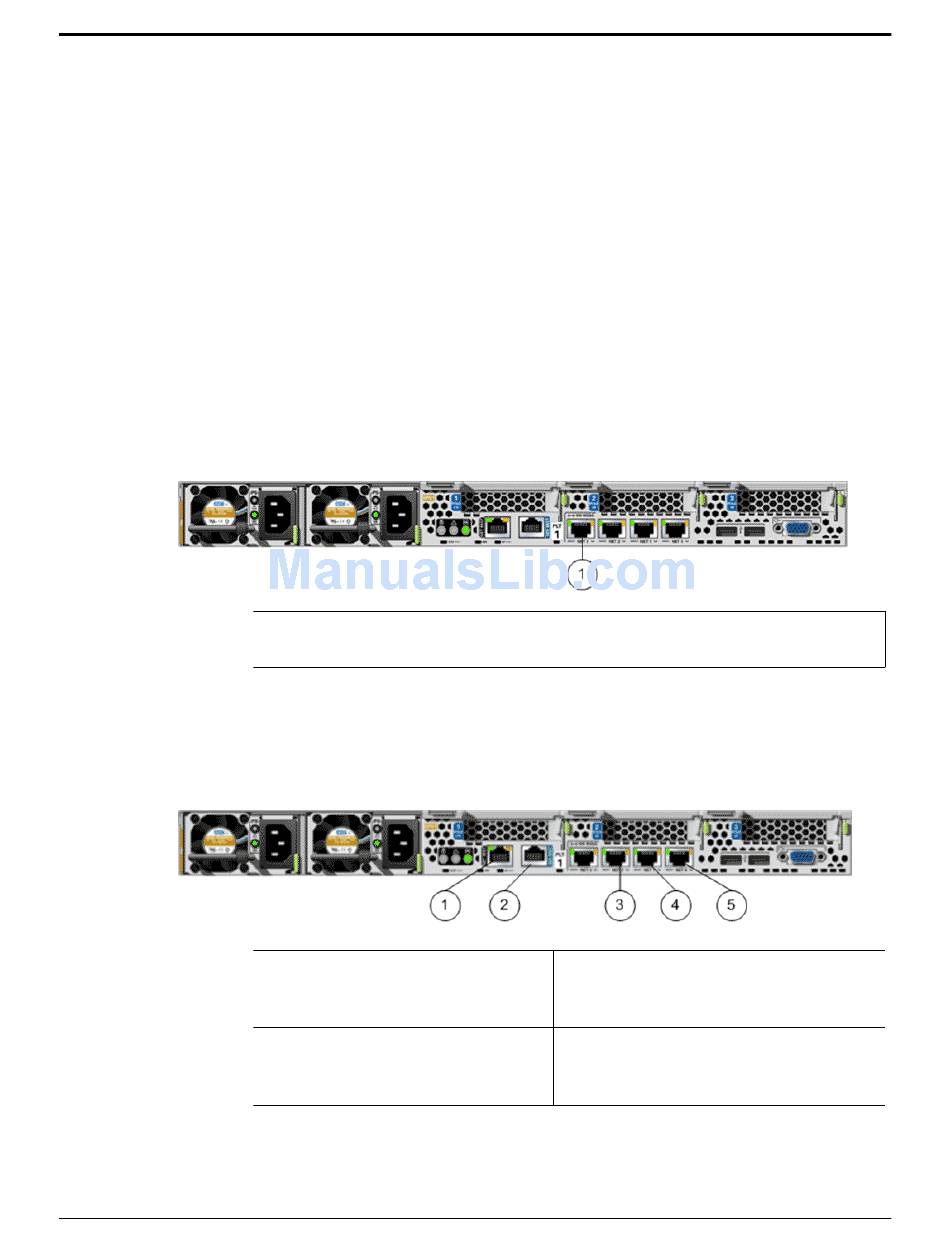

Pilot Port for External Cabling
The following figure shows the external Ethernet port.
Figure 8: Pilot port for external cabling
Legend
Pilot Ports for Internal Cabling
The following figure shows the internal Ethernet ports and the serial port.
Figure 9: Pilot ports for internal cabling
Legend
1 NET 3 port connects the Pilot nodes to the customer management
network (Ethernet).
1 NET MGT port connects to the
NET 2 port on the partner Pilot
node (Ethernet).
2 SER MGT port connects the SER
MGT port on the partner Pilot
node (serial).
Oracle FS Systems: Cabling Overview
4 NET 1 port connects to the NET 3
port on the Controller node (Ethernet).
5 NET 0 port connects to the NET 0
port on the partner Pilot node
(Ethernet).
38
