5 DE2-24C Drive Enclosure (locations may vary)
Oracle FS Systems that use the X5-2 Pilots and which have a gap of one rack unit
(RU) or more because there is no component chassis installed below the bottom
Pilot node might have a 1 RU cable trough (PN: 7098533) installed directly below
the bottom Pilot. The cable trough provides support to the bottom Pilot during
transportation to the customer's facility and can be removed or left in place after
the racked system is installed at the customer data center.

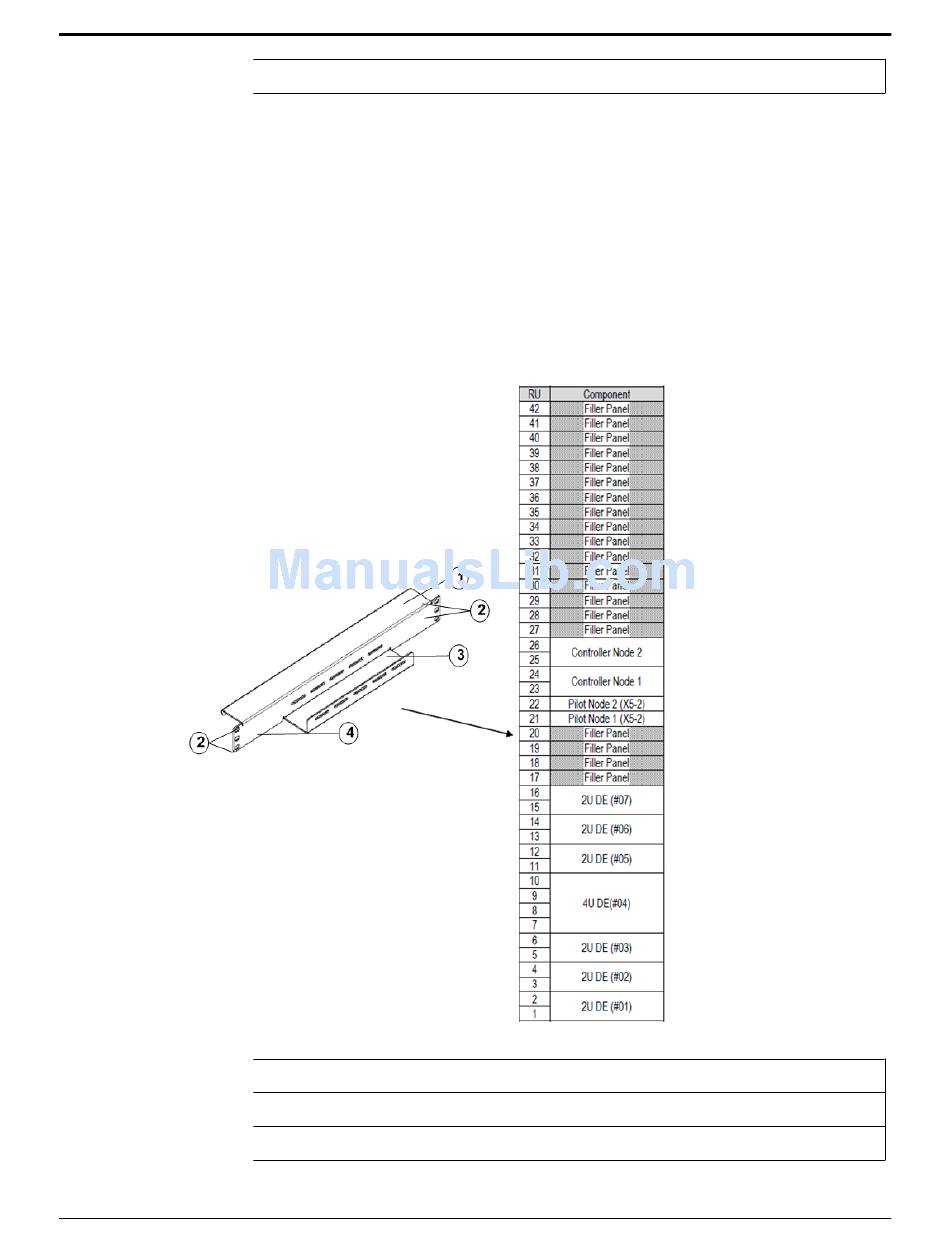

The following diagram shows an Oracle FS System configuration with a cable
trough that is located at RU 20 in the rack.
Figure 2: Cable trough location in the Oracle FS System
Legend
1 Cable trough long lip that is secured under the bottom Pilot
2 M6 cage nuts and M6 Phillips screws that secure the cable trough
3 Trough section that faces the back of the rack
Oracle FS Systems: Installation Overview
14
